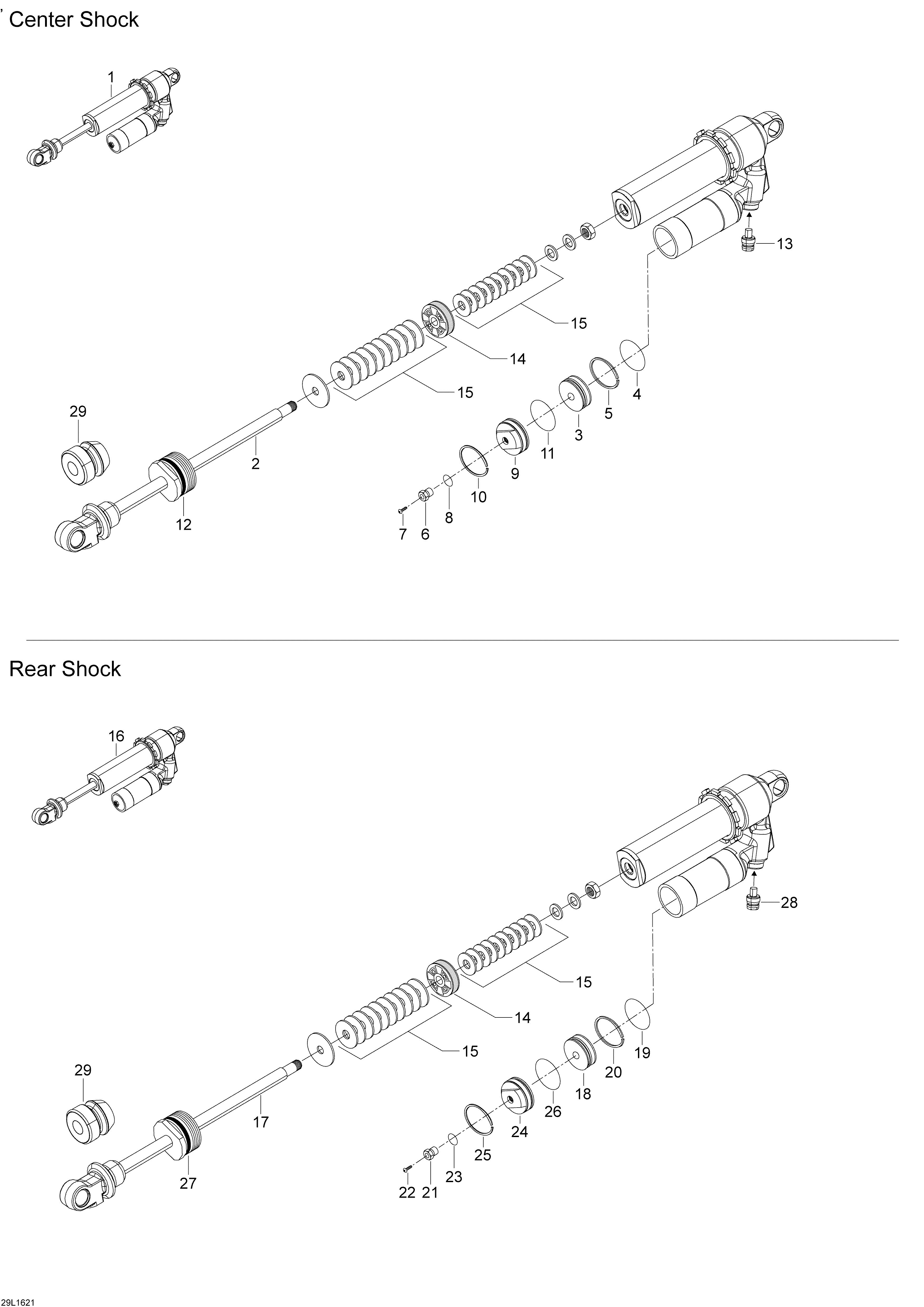

08- Rear Shocks для BRP Lynx Rave RS (2-Stroke) - 2016
-
№АртикулНазвание
-
1619330003 ShockShock
-
3619300007 Floating PistonFloating Piston
-
4415093807 O RingO Ring
-
5415093806 Piston RingPiston Ring
-
6505070398 Valve Ass'yValve Ass'y
-
7505070399 ScrewScrew
-
8505070400 O RingO Ring
-
10619300006 Stop RingStop Ring
-
11415093804 O RingO Ring
-
12619300019 Seal Carrier Ass'ySeal Carrier Ass'y
-
13619300015 Air Valve Ass'yAir Valve Ass'y
-
14230043 Piston 46 mm, 0 mmPiston 46 mm, 0 mm
-
14619300159 Piston 46 mm, 1.2 mmPiston 46 mm, 1.2 mm
-
14619300160 Piston 46 mm, 1.7 mmPiston 46 mm, 1.7 mm
-
14230039 Piston 46 mm, 2.0 mmPiston 46 mm, 2.0 mm
-
15619300060 Shim 40/46 mm, 17 x 0,114Shim 40/46 mm, 17 x 0,114
-
15619300069 Shim 40/46 mm, 17 x 0,203Shim 40/46 mm, 17 x 0,203
-
15619300068 Shim 40/46 mm, 18 x 0,114Shim 40/46 mm, 18 x 0,114
-
15619300067 Shim 40/46 mm, 18 x 0,152Shim 40/46 mm, 18 x 0,152
-
15230029 Shim 40/46 mm, 20 x 0,114Shim 40/46 mm, 20 x 0,114
-
15230030 Shim 40/46 mm, 20 x 0,152Shim 40/46 mm, 20 x 0,152
-
15230031 Shim 40/46 mm, 20 x 0,203Shim 40/46 mm, 20 x 0,203
-
15230032 Shim 40/46 mm, 20 x 0,254Shim 40/46 mm, 20 x 0,254
-
15619300097 Shim 40/46 mm, 20 x 0,305Shim 40/46 mm, 20 x 0,305
-
15619300143 Shim 40/46 mm, 22 x 0,114Shim 40/46 mm, 22 x 0,114
-
15619300140 Shim 40/46 mm, 22 x 0,152Shim 40/46 mm, 22 x 0,152
-
15619300098 Shim 40/46 mm, 22 x 0,203Shim 40/46 mm, 22 x 0,203
-
15619300134 Shim 40/46 mm, 22 x 0,254Shim 40/46 mm, 22 x 0,254
-
15619300144 Shim 40/46 mm, 22 x 0,305Shim 40/46 mm, 22 x 0,305
-
15619300145 Shim 40/46 mm, 24 x 0,114Shim 40/46 mm, 24 x 0,114
-
15619300146 Shim 40/46 mm, 24 x 0,152Shim 40/46 mm, 24 x 0,152
-
15619300147 Shim 40/46 mm, 24 x 0,203Shim 40/46 mm, 24 x 0,203
-
15619300095 Shim 40/46 mm, 24 x 0,254Shim 40/46 mm, 24 x 0,254
-
15619300148 Shim 40/46 mm, 24 x 0,305Shim 40/46 mm, 24 x 0,305
-
15619300149 Shim 40/46 mm, 26 x 0,114Shim 40/46 mm, 26 x 0,114
-
15619300141 Shim 40/46 mm, 26 x 0,152Shim 40/46 mm, 26 x 0,152
-
15619300150 Shim 40/46 mm, 26 x 0,203Shim 40/46 mm, 26 x 0,203
-
15619300099 Shim 40/46 mm, 26 x 0,254Shim 40/46 mm, 26 x 0,254
-
15619300100 Shim 40/46 mm, 26 x 0,305Shim 40/46 mm, 26 x 0,305
-
15619300101 Shim 40/46 mm, 28 x 0,114Shim 40/46 mm, 28 x 0,114
-
15619300151 Shim 40/46 mm, 28 x 0,152Shim 40/46 mm, 28 x 0,152
-
15619300102 Shim 40/46 mm, 28 x 0,203Shim 40/46 mm, 28 x 0,203
-
15619300103 Shim 40/46 mm, 28 x 0,254Shim 40/46 mm, 28 x 0,254
-
15619300152 Shim 40/46 mm, 28 x 0,305Shim 40/46 mm, 28 x 0,305
-
15619300153 Shim 40/46 mm, 30 x 0,114Shim 40/46 mm, 30 x 0,114
-
15619300104 Shim 40/46 mm, 30 x 0,152Shim 40/46 mm, 30 x 0,152
-
15619300154 Shim 40/46 mm, 30 x 0,203Shim 40/46 mm, 30 x 0,203
-
15619300113 Shim 40/46 mm, 30 x 0,254Shim 40/46 mm, 30 x 0,254
-
15619300056 Shim 40/46 mm, 30 x 0,305Shim 40/46 mm, 30 x 0,305
-
15230082 Shim 40/46 mm, 32 x 0,114Shim 40/46 mm, 32 x 0,114
-
15619300137 Shim 40/46 mm, 32 x 0,152Shim 40/46 mm, 32 x 0,152
-
15619300138 Shim 40/46 mm, 32 x 0,203Shim 40/46 mm, 32 x 0,203
-
15619300059 Shim 40/46 mm, 32 x 0,254Shim 40/46 mm, 32 x 0,254
-
15619300022 Shim 40/46 mm, 32 x 0,305Shim 40/46 mm, 32 x 0,305
-
15230033 Shim 40/46 mm, 34 x 0,114Shim 40/46 mm, 34 x 0,114
-
15230034 Shim 40/46 mm, 34 x 0,152Shim 40/46 mm, 34 x 0,152
-
15230035 Shim 40/46 mm, 34 x 0,203Shim 40/46 mm, 34 x 0,203
-
15230036 Shim 40/46 mm, 34 x 0,254Shim 40/46 mm, 34 x 0,254
-
15619300070 Shim 40/46 mm, 34 x 0,305Shim 40/46 mm, 34 x 0,305
-
15230037 Shim 40/46 mm, 36 x 0,114Shim 40/46 mm, 36 x 0,114
-
15619300155 Shim 40/46 mm, 36 x 0,152Shim 40/46 mm, 36 x 0,152
-
15619300142 Shim 40/46 mm, 36 x 0,203Shim 40/46 mm, 36 x 0,203
-
15503189038 Shim 40/46 mm, 36 x 0,254Shim 40/46 mm, 36 x 0,254
-
15619300105 Shim 40/46 mm, 36 x 0,305Shim 40/46 mm, 36 x 0,305
-
15230040 Shim 40/46 mm, 38 x 0,152Shim 40/46 mm, 38 x 0,152
-
15230041 Shim 40/46 mm, 38 x 0,203Shim 40/46 mm, 38 x 0,203
-
15230042 Shim 40/46 mm, 38 x 0,254Shim 40/46 mm, 38 x 0,254
-
15619300106 Shim 40/46 mm, 38 x 0,305Shim 40/46 mm, 38 x 0,305
-
15619300157 Shim 40/46 mm, 40 x 0,152Shim 40/46 mm, 40 x 0,152
-
15619300112 Shim 40/46 mm, 40 x 0,203Shim 40/46 mm, 40 x 0,203
-
15619300158 Shim 40/46 mm, 40 x 0,254Shim 40/46 mm, 40 x 0,254
-
15619300107 Shim 40/46 mm, 40 x 0,305Shim 40/46 mm, 40 x 0,305
-
16619330005 ShockShock
-
18619300007 Floating PistonFloating Piston
-
19415093807 O RingO Ring
-
20415093806 Piston RingPiston Ring
-
21505070398 Valve Ass'yValve Ass'y
-
22505070399 ScrewScrew
-
23505070400 O RingO Ring
-
25619300006 Stop RingStop Ring
-
26415093804 O RingO Ring
-
27619300019 Seal Carrier Ass'ySeal Carrier Ass'y
-
28619300015 Air Valve Ass'yAir Valve Ass'y
-
29619300172 Rubber CushionRubber Cushion
