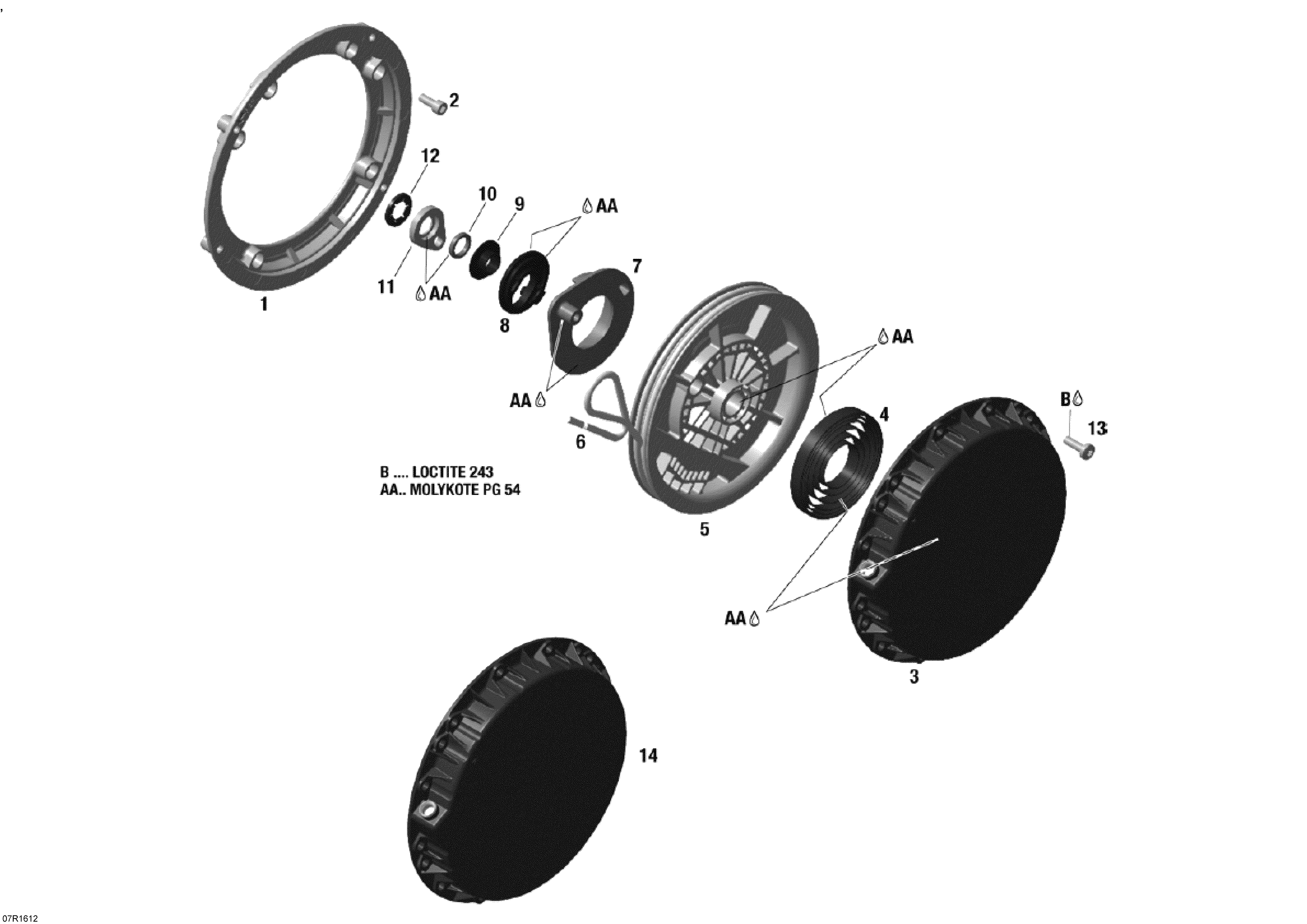

04- Rewind Starter - 600 E-TEC для BRP Lynx Xtrim SC (2-Stroke) - 2016
-
№АртикулНазвание
-
1420810868 Connecting FlangeConnecting Flange
-
2420241236 Socket Head Screw M6 x 16. Tightening Torque 8-10 NmSocket Head Screw M6 x 16. Tightening Torque 8-10 Nm
-
-420892614 Rewind Starter Ass'y. Includes 3 To 12Rewind Starter Ass'y. Includes 3 To 12
-
3420910256 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852288 Rope SheaveRope Sheave
-
6412500200 Starter Rope (Meter)Starter Rope (Meter)
-
7420852633 PawlPawl
-
8420852640 Pawl LockPawl Lock
-
9420847926 Stage SleeveStage Sleeve
-
10420250407 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
11420852520 Lock RingLock Ring
-
12420845560 Locking ElementLocking Element
-
13420941256 Hex. Collar Screw M6 x 20. Tightening Torque 7-8 NmHex. Collar Screw M6 x 20. Tightening Torque 7-8 Nm
-
14420910254 Cover. (Electric Start)Cover. (Electric Start)
