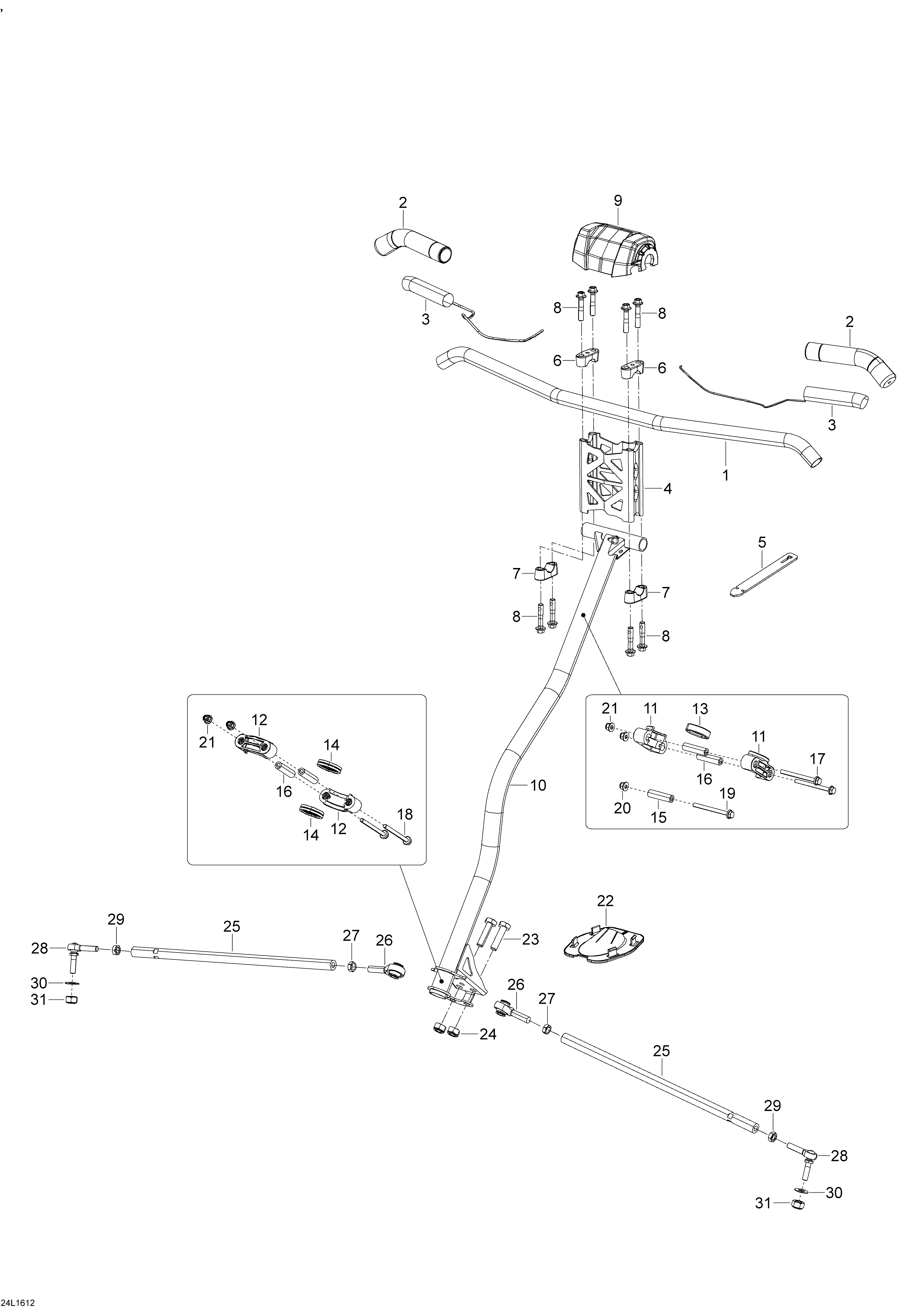

07- Steering System для BRP Lynx Xtrim SC (2-Stroke) - 2016
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film (25W)Heated Film (25W)
-
4506152617 Black Extension (160mm)Black Extension (160mm)
-
5293850117 Rubber StrapRubber Strap
-
6506152751 Steering SupportSteering Support
-
7506152751 Steering SupportSteering Support
-
8250000352 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
9506152553 Steering PadSteering Pad
-
10506152839 Main TubeMain Tube
-
11506152508 Upper Half-HousingUpper Half-Housing
-
12506152217 Lower Half-HousingLower Half-Housing
-
13506152509 Upper Vibrat. GasketUpper Vibrat. Gasket
-
14506152518 Lower Vibrat. GasketLower Vibrat. Gasket
-
15506152297 Housing BushingHousing Bushing
-
16506152297 Housing BushingHousing Bushing
-
17207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
18207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
19207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
20233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
21233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
22506152163 PlatePlate
-
23207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
24232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
25506152498 Tie RodTie Rod
-
26506152081 Ball JointBall Joint
-
27250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
28506152684 Ball JointBall Joint
-
29732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
30506152582 WasherWasher
-
31233201464 Elastic Stop Nut M10Elastic Stop Nut M10
