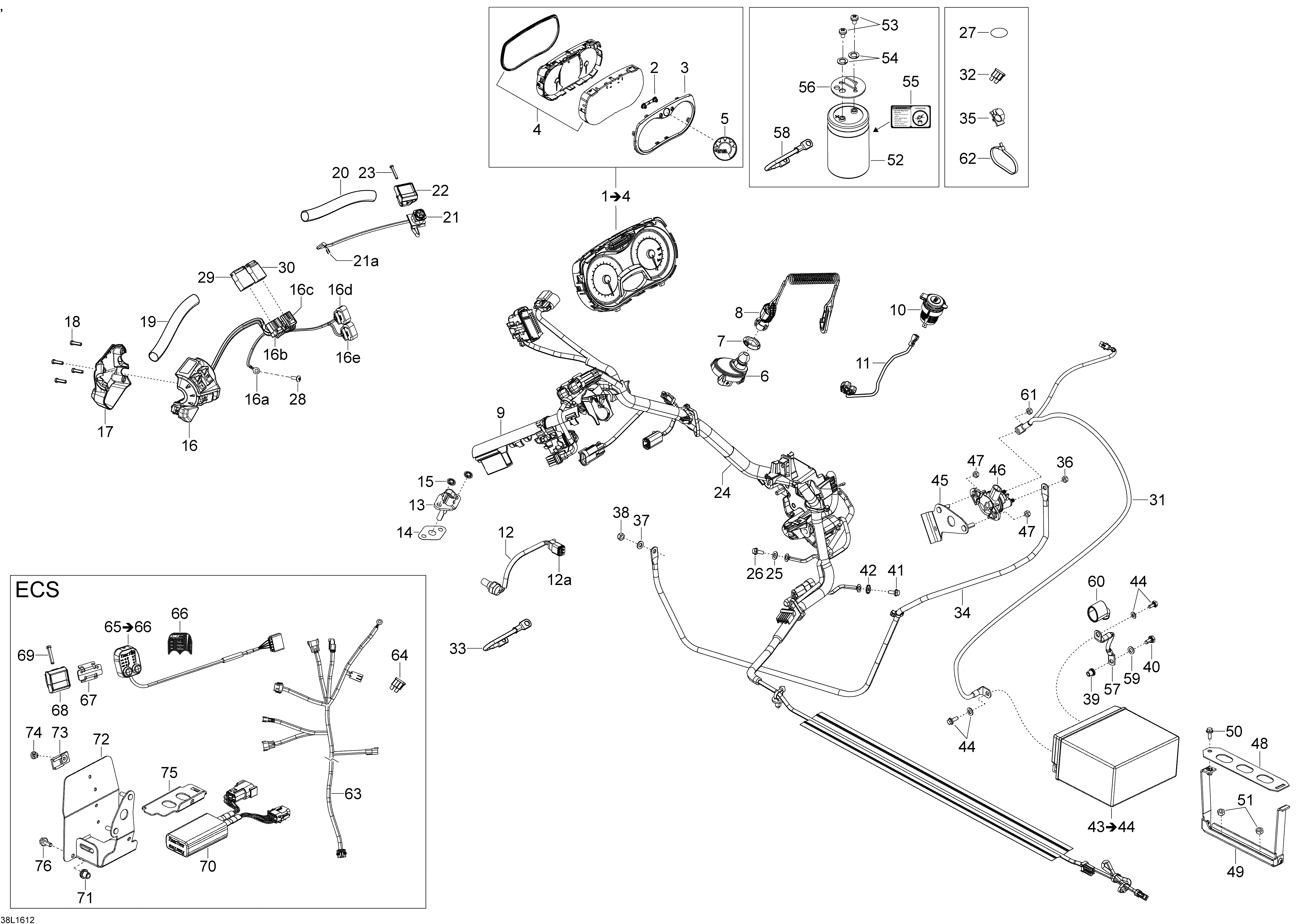

10- Electrical System для BRP Lynx Xtrim SC (2-Stroke) - 2016
-
№АртикулНазвание
-
1515177910 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP LogoBRP Logo
-
6515178049 Dess SwitchDess Switch
-
7278002963 Safety Switch NutSafety Switch Nut
-
8515178044 DESS CapDESS Cap
-
9515177134 PlatePlate
-
10710001248 DC Power OutletDC Power Outlet
-
11515177400 Power Outlet HarnessPower Outlet Harness
-
12515177813 Temperature SensorTemperature Sensor
-
12a515175670 Female HousingFemale Housing
-
12a278000632 Female TerminalFemale Terminal
-
12a278001661 Female TerminalFemale Terminal
-
12a293000052 Sealing CapSealing Cap
-
12a515175675 Female LockFemale Lock
-
13515176366 Air Temperature SensorAir Temperature Sensor
-
14508000769 RingRing
-
15389804300 Push NutPush Nut
-
16515177677 HousingHousing
-
16a515175504 Ring TerminalRing Terminal
-
16b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
16b515175231 Female TerminalFemale Terminal
-
16c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
16c515175231 Female TerminalFemale Terminal
-
16d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
16e710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
17515177147 Housing PlateHousing Plate
-
18250000671 Torx ScrewTorx Screw
-
19415129879 Protector TubeProtector Tube
-
20415129879 Protector TubeProtector Tube
-
21515177362 Kill SwitchKill Switch
-
21a515175232 Male TerminalMale Terminal
-
22515177310 SupportSupport
-
23250000263 Torx ScrewTorx Screw
-
24515177984 Main HarnessMain Harness
-
25234141601 Lock WasherLock Washer
-
26250000741 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
27518325560 Adhesive PatchAdhesive Patch
-
28250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
29515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
29515175232 Male TerminalMale Terminal
-
30515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
30515175232 Male TerminalMale Terminal
-
31515177496 Battery Cable With ChargingBattery Cable With Charging
-
32278001443 Fuse 25AFuse 25A
-
33515177289 Ground WireGround Wire
-
34515177208 Battery CableBattery Cable
-
35515177066 ClipClip
-
36232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
37234061410 Flat WasherFlat Washer
-
38232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
39293450275 InsertInsert
-
40207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
41207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
42250200041 Serrated Lock WasherSerrated Lock Washer
-
43410301203 Battery 18A. Includes 43 To 44Battery 18A. Includes 43 To 44
-
44250000282 Fastener KitFastener Kit
-
45515177558 Relay Support. Model-stdRelay Support. Model-std
-
46278003012 Starter RelayStarter Relay
-
47233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
48518327281 Battery StrapBattery Strap
-
49518327282 Battery StrapBattery Strap
-
50207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
51233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
52515177272 CapacitorCapacitor
-
53250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
54250200026 Lock WasherLock Washer
-
55516006206 Capacitor DecalCapacitor Decal
-
56515177193 CapCap
-
57515176780 Ground CableGround Cable
-
58515178052 Ground CableGround Cable
-
59234061410 Flat WasherFlat Washer
-
60570151000 Protection CapProtection Cap
-
61232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
62414115200 Tie Rap 180mmTie Rap 180mm
-
62293750008 Tie Rap 350mmTie Rap 350mm
-
62293750002 Tie Rap 142mmTie Rap 142mm
-
62605627000 Tie Rap (Push Mount) 170mmTie Rap (Push Mount) 170mm
-
63515177997 ECS Harness. Model-ECSECS Harness. Model-ECS
-
64278001197 Fuse 10AFuse 10A
-
65515177777 Control Box Ass' y. Includes 65 To 66, Model-ECSControl Box Ass' y. Includes 65 To 66, Model-ECS
-
66515177778 Control Box Decal. Model-ECSControl Box Decal. Model-ECS
-
67515177779 Control Box Fastener. Model-ECSControl Box Fastener. Model-ECS
-
68515177310 Kill Switch Support. Model-ECSKill Switch Support. Model-ECS
-
69250000263 Torx Screw #8-18. Model-ECSTorx Screw #8-18. Model-ECS
-
70515177780 Control Box TCU-4. Model-ECSControl Box TCU-4. Model-ECS
-
71293450275 Insert. Model-ECSInsert. Model-ECS
-
72503194571 ECU Support. Model-ECSECU Support. Model-ECS
-
73270000141 Clip. Model-ECSClip. Model-ECS
-
74293150037 Rivet. Model-ECSRivet. Model-ECS
-
75503194279 ECU Support. Model-ECSECU Support. Model-ECS
-
76207561644 Hex. Flange Screw M6 x 16. Model-ECSHex. Flange Screw M6 x 16. Model-ECS
