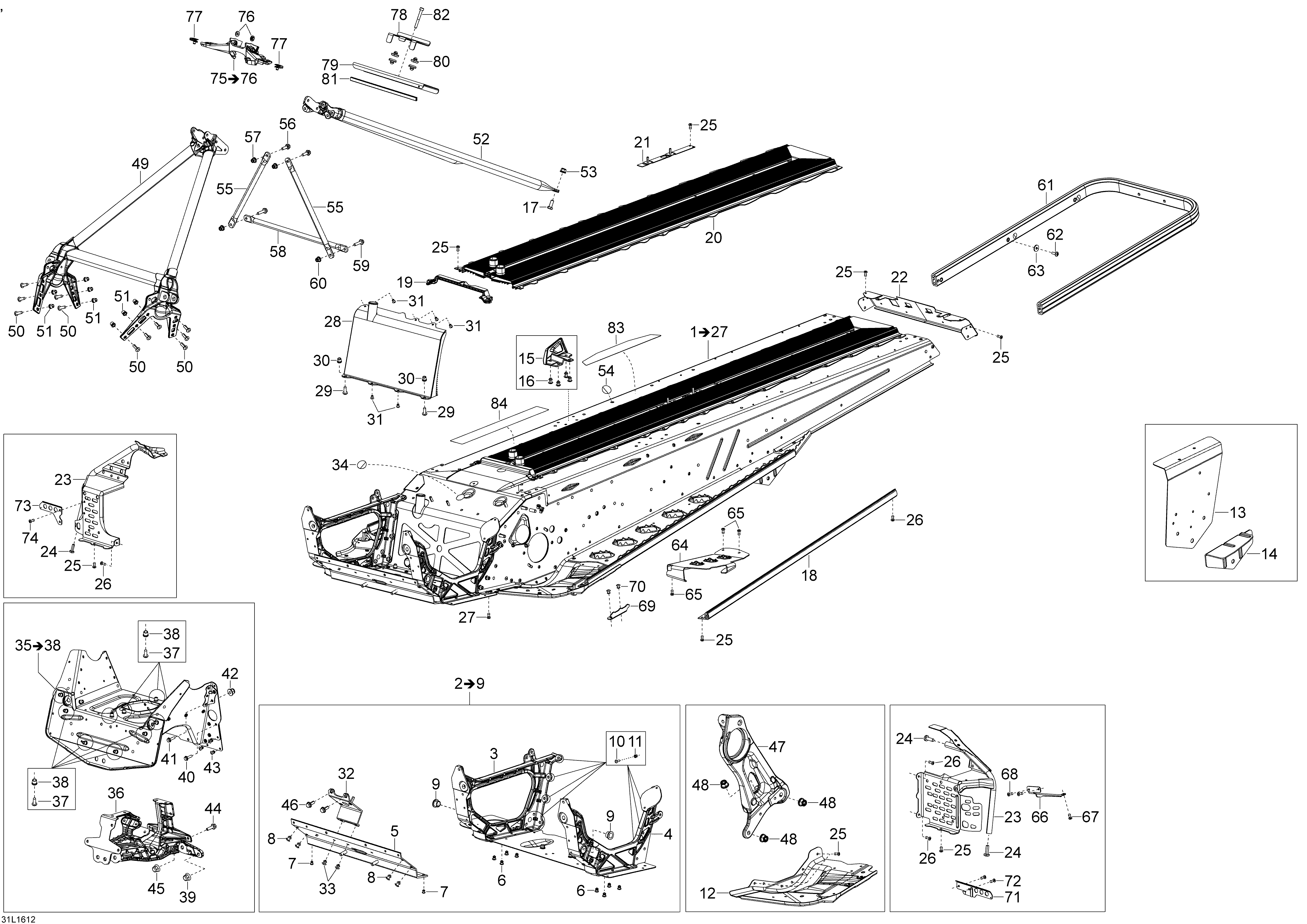

09- Frame для BRP Lynx Xtrim SC (2-Stroke) - 2016
-
№АртикулНазвание
-
1518329130 Black Frame. Includes 1 To 27, Model-stdBlack Frame. Includes 1 To 27, Model-std
-
1518328877 Black Frame. Includes 1 To 27, Model-ECSBlack Frame. Includes 1 To 27, Model-ECS
-
2518327646 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505072690 CushionCushion
-
10207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12518327242 LH Front TunnelLH Front Tunnel
-
12518327243 RH Front TunnelRH Front Tunnel
-
14518327848 LH Rear SupportLH Rear Support
-
14518327847 RH Rear SupportRH Rear Support
-
15518328436 RH Rear BaseRH Rear Base
-
15518328435 LH Rear BaseLH Rear Base
-
16293150147 RivetRivet
-
17207182086 Hex. Cap Screw M8 x 20Hex. Cap Screw M8 x 20
-
18518327465 Side ProfileSide Profile
-
19518326656 SealSeal
-
20518326728 Rear RadiatorRear Radiator
-
22518327240 Rear CapRear Cap
-
23518328940 RH StirrupRH Stirrup
-
23518328528 LH StirrupLH Stirrup
-
24250000752 Pan HD Torx Screw M8 x 25Pan HD Torx Screw M8 x 25
-
25390909200 RivetRivet
-
26390909100 RivetRivet
-
27293150096 RivetRivet
-
28518326485 Front RadiatorFront Radiator
-
29207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
30233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
31390909200 RivetRivet
-
32518325943 MAG SupportMAG Support
-
33293150119 RivetRivet
-
34518325560 Adhesive PatchAdhesive Patch
-
35518328392 Cross Member. Includes 35 To 38Cross Member. Includes 35 To 38
-
36518327487 SupportSupport
-
37207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
38233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
39233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
40210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
41207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
42233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
43293150179 RivetRivet
-
44207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
45233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
46207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
47518327460 Pulley SupportPulley Support
-
48233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
49518327565 Front MemberFront Member
-
50207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
51233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
52518327237 Rear MemberRear Member
-
53233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
54518325560 Adhesive PatchAdhesive Patch
-
55518325114 SupportSupport
-
56207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
57233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
58518325115 Upper ColumnUpper Column
-
59207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
60233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
61518328086 Black Rear BumperBlack Rear Bumper
-
62250000779 Torx Truss M6 x 18Torx Truss M6 x 18
-
63224061201 Flat WasherFlat Washer
-
64518327979 Black LH FootrestBlack LH Footrest
-
64518327980 Black RH FootrestBlack RH Footrest
-
6536005 RivetRivet
-
66518328079 Brake Cover SupportBrake Cover Support
-
67390909200 RivetRivet
-
68293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
69518328543 Black Side GripBlack Side Grip
-
70293150119 RivetRivet
-
71518327613 LH Spring Support PlateLH Spring Support Plate
-
72293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
73518327614 RH Spring Support PlateRH Spring Support Plate
-
74390909200 RivetRivet
-
75518327145 Support. Includes 75 To 76Support. Includes 75 To 76
-
77250000079 Panel Nut M5Panel Nut M5
-
78513033746 Upper Support PlateUpper Support Plate
-
79513033747 Lower Support PlateLower Support Plate
-
80605452114 Rubber PlugRubber Plug
-
82205065044 Socket HD Screw M6 x 50Socket HD Screw M6 x 50
-
83516006448 Fuel Tank Protection DecalFuel Tank Protection Decal
-
84516007041 Fuel Tank Protection DecalFuel Tank Protection Decal
