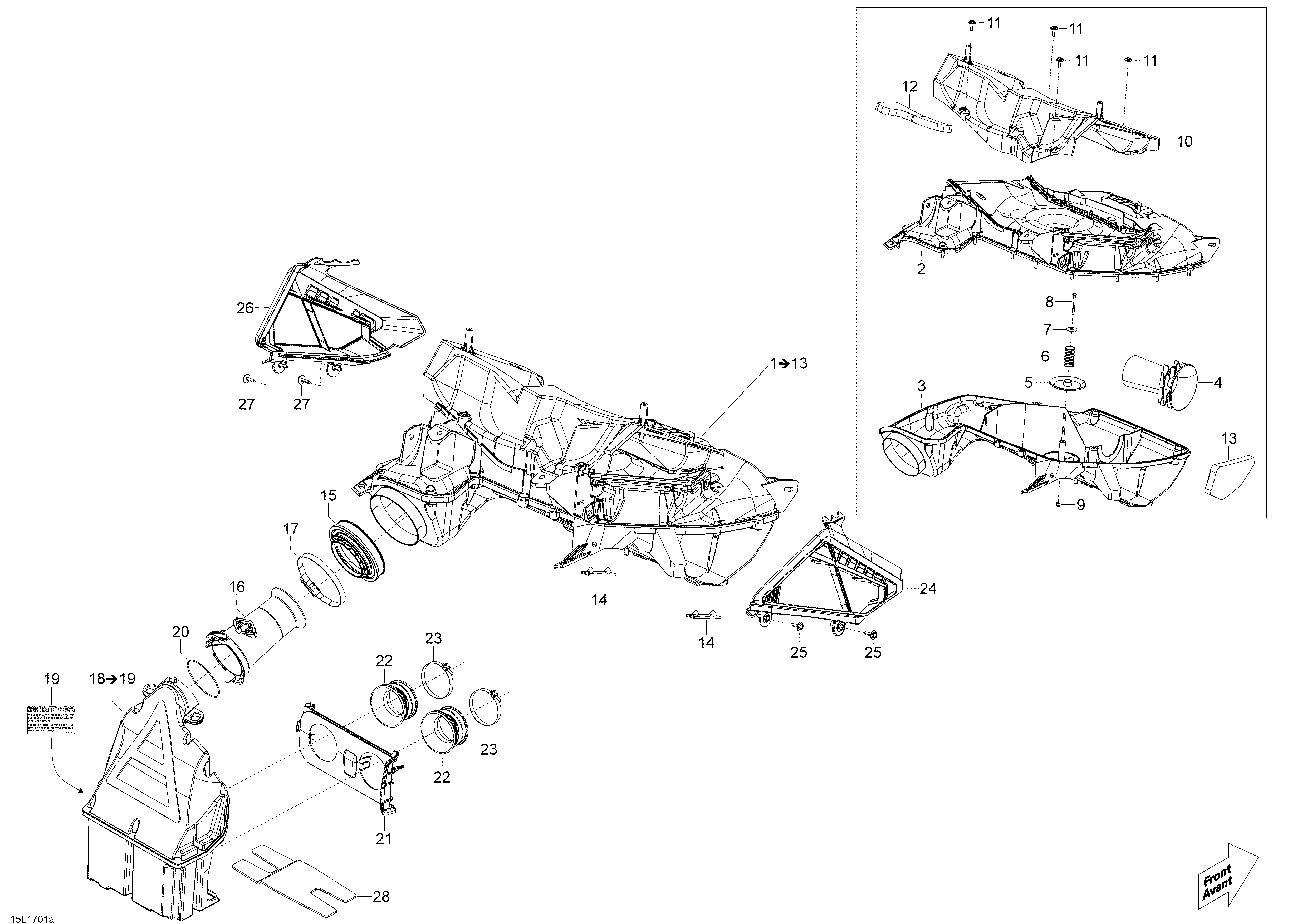

02- Air Intake System 800RE для BRP Lynx BoonDocker DS, 2017 - 2017
-
№АртикулНазвание
-
1508000762 Secondary Chamber Ass'y. Includes 1 To 13, Model 800 E-TECSecondary Chamber Ass'y. Includes 1 To 13, Model 800 E-TEC
-
7224060201 Flat WasherFlat Washer
-
8205444086 Socket HD Screw M4 x 40Socket HD Screw M4 x 40
-
9232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
10508000732 Air DuctAir Duct
-
11250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
14508000744 StopperStopper
-
15508000567 Intake AdaptorIntake Adaptor
-
16508000662 FluteFlute
-
17514052924 Gear ClampGear Clamp
-
18508000660 Primary Chamber Ass'y. Includes 18 To 19Primary Chamber Ass'y. Includes 18 To 19
-
19516005876 Air Intake Instruction LabelAir Intake Instruction Label
-
20293300115 O-RingO-Ring
-
21508000613 Adapter PlateAdapter Plate
-
22508000614 Air Intake AdapterAir Intake Adapter
-
23508000346 ClampClamp
-
24508000730 RH Air FilterRH Air Filter
-
25250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
26508000731 LH Air FilterLH Air Filter
-
27250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
28508000739 Isolating FoamIsolating Foam
