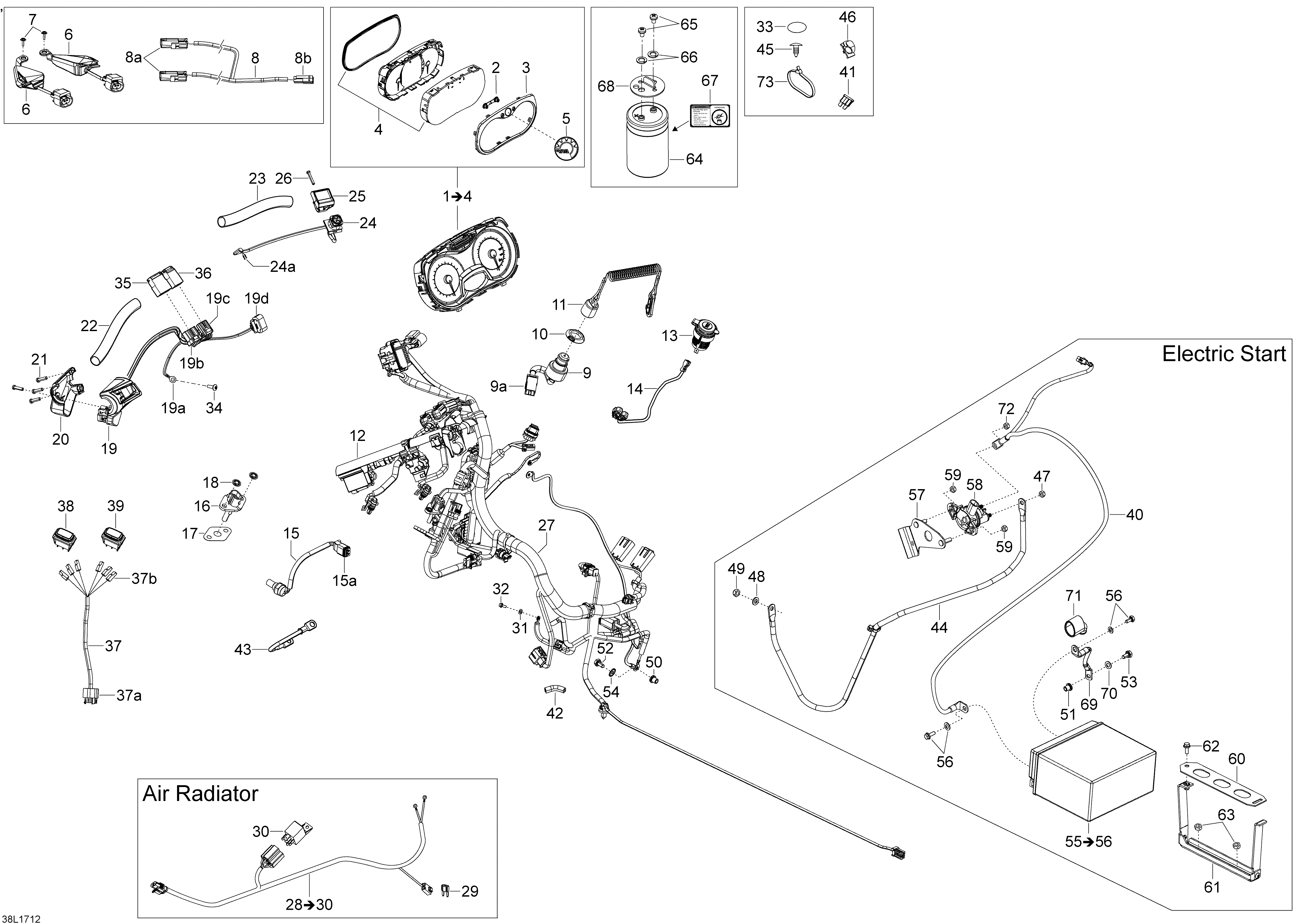

10- Electrical System для BRP Lynx BoonDocker DS, 2017 - 2017
-
№АртикулНазвание
-
1515177910 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP LogoBRP Logo
-
6515177580 RH Signature LightRH Signature Light
-
6515177581 LH Signature LightLH Signature Light
-
7250000759 Torx Truss Screw K40 x 16Torx Truss Screw K40 x 16
-
8515177632 Signature Light HarnessSignature Light Harness
-
8a710001153 Wire SealWire Seal
-
8b515175654 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
8b515175232 Male TerminalMale Terminal
-
9515178225 Dess SwitchDess Switch
-
9a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9a515175232 Male TerminalMale Terminal
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515178044 DESS CapDESS Cap
-
12515177134 PlatePlate
-
13710001248 DC Power OutletDC Power Outlet
-
14515177400 HarnessHarness
-
15515177813 Temperature SensorTemperature Sensor
-
15a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
15a278000632 Female TerminalFemale Terminal
-
15a278001661 Female TerminalFemale Terminal
-
15a293000052 Sealing CapSealing Cap
-
15a515175675 Female LockFemale Lock
-
16515176366 Air Temperature SensorAir Temperature Sensor
-
17508000769 RingRing
-
18389804300 Push NutPush Nut
-
19515178305 HousingHousing
-
19a515175504 Ring TerminalRing Terminal
-
19b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
19b515175231 Female TerminalFemale Terminal
-
19c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
19c515175231 Female TerminalFemale Terminal
-
19d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
20515177149 Housing PlateHousing Plate
-
21250000671 Torx ScrewTorx Screw
-
22415129879 Protector TubeProtector Tube
-
23415129879 Protector TubeProtector Tube
-
24515177362 Kill SwitchKill Switch
-
24a515175232 Male TerminalMale Terminal
-
25515177310 SupportSupport
-
26250000263 Torx ScrewTorx Screw
-
27515177985 Main HarnessMain Harness
-
28515177006 Fan Harness. Includes 28 To 30, Model-Air RadiatorFan Harness. Includes 28 To 30, Model-Air Radiator
-
29278001197 Fuse 10AFuse 10A
-
31234141601 Lock WasherLock Washer
-
32250000741 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
33518325560 Adhesive PatchAdhesive Patch
-
34250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
35515175662 Male Housing, 6 CirsuitsMale Housing, 6 Cirsuits
-
35515175232 Male TerminalMale Terminal
-
36515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
36515175232 Male TerminalMale Terminal
-
37515177495 Warmer HarnessWarmer Harness
-
37a710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
37b710002398 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
37b710002399 Female TerminalFemale Terminal
-
38515177497 Hand Warmer Rocker SwitchHand Warmer Rocker Switch
-
39515177498 Thumb Warmer Rocker SwitchThumb Warmer Rocker Switch
-
40515177496 Battery Cable With Charging. Model-Electric StartBattery Cable With Charging. Model-Electric Start
-
41278001443 Fuse 25A. Model-Electric StartFuse 25A. Model-Electric Start
-
42520001525 TrimTrim
-
43515177289 Ground WireGround Wire
-
44515177208 Battery Cable. Model-Electric StartBattery Cable. Model-Electric Start
-
45414644300 DartDart
-
46515177066 Clip. Model-Electric StartClip. Model-Electric Start
-
47232561414 Elastic Stop Nut M6. Model-Electric StartElastic Stop Nut M6. Model-Electric Start
-
48234061410 Flat Washer. Model-Electric StartFlat Washer. Model-Electric Start
-
49232561414 Elastic Stop Nut M6. Model-Electric StartElastic Stop Nut M6. Model-Electric Start
-
50233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
51293450275 Insert. Model-Electric StartInsert. Model-Electric Start
-
52207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
53207662044 Hex. Flange Screw M6 x 20. Model-Electric StartHex. Flange Screw M6 x 20. Model-Electric Start
-
54250200041 Serrated Lock WasherSerrated Lock Washer
-
55415129898 Battery 18AHHD. Includes 55 To 56, Model-Electric StartBattery 18AHHD. Includes 55 To 56, Model-Electric Start
-
56250000282 Fastener Kit. Model-Electric StartFastener Kit. Model-Electric Start
-
57515177558 Relay Support. Model-Electric StartRelay Support. Model-Electric Start
-
58278003012 Starter Relay. Model-Electric StartStarter Relay. Model-Electric Start
-
59233261416 Elastic Flange Nut M6. Model-Electric StartElastic Flange Nut M6. Model-Electric Start
-
60518327281 Battery Strap. Model-Electric StartBattery Strap. Model-Electric Start
-
61518327282 Battery Strap. Model-Electric StartBattery Strap. Model-Electric Start
-
62207561644 Hex. Flange Screw M6 x 16. Model-Electric StartHex. Flange Screw M6 x 16. Model-Electric Start
-
63233261416 Elastic Flange Nut M6. Model-Electric StartElastic Flange Nut M6. Model-Electric Start
-
64515177272 CapacitorCapacitor
-
65250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
66250200026 Lock WasherLock Washer
-
67516006206 Capacitor DecalCapacitor Decal
-
68515177193 CapCap
-
69515176780 Ground Cable. Model-Electric StartGround Cable. Model-Electric Start
-
70234061410 Flat Washer. Model-Electric StartFlat Washer. Model-Electric Start
-
71570151000 Protection Cap. Model-Electric StartProtection Cap. Model-Electric Start
-
72232561434 Elastic Stop Nut M6. Model-Electric StartElastic Stop Nut M6. Model-Electric Start
-
73414115200 Tie Rap 180mmTie Rap 180mm
-
73293750008 Tie Rap 350mmTie Rap 350mm
-
73293750001 Tie Rap 94mmTie Rap 94mm
-
73605627000 Tie RapTie Rap
-
74515177758 ModuleModule
