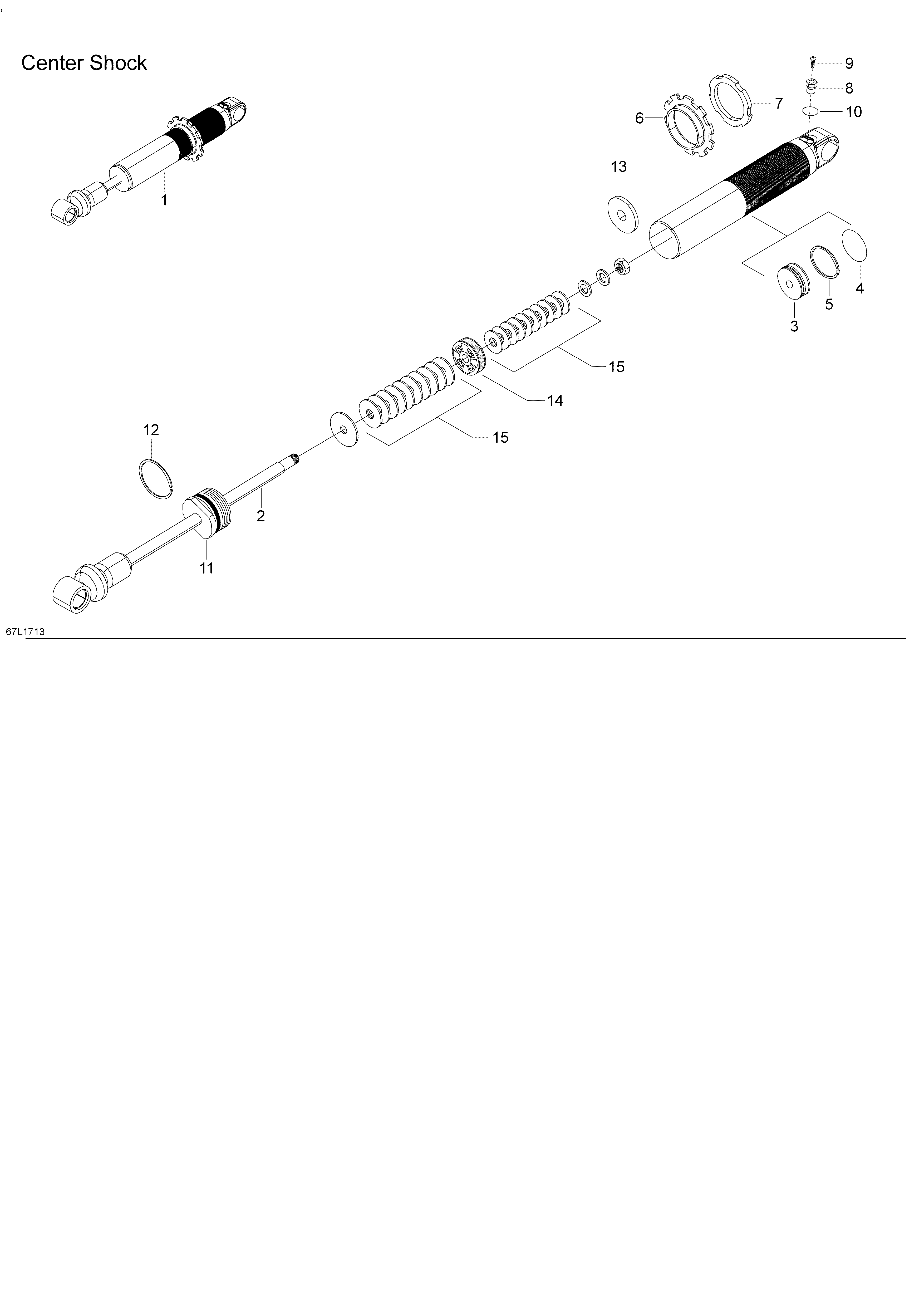

08- Take Apart Shock, Central для BRP Lynx BoonDocker DS, 2017 - 2017
-
№АртикулНазвание
-
1503193287 ShockShock
-
4414888312 O RingO Ring
-
5503189308 Piston RingPiston Ring
-
6414888316 Spring SeatSpring Seat
-
8505070398 Valve Ass?yValve Ass?y
-
9505070399 ScrewScrew
-
10505070400 O RingO Ring
-
14619300108 Piston 36 mm, 0 x 0,3 SlitsPiston 36 mm, 0 x 0,3 Slits
-
14415128848 Piston 36 mm, 1 x 0,3 SlitsPiston 36 mm, 1 x 0,3 Slits
-
14619300161 Piston 36 mm, 2 x 0,3 slitsPiston 36 mm, 2 x 0,3 slits
-
14619300071 Piston 36 mm, 3 x 0,3 SlitsPiston 36 mm, 3 x 0,3 Slits
-
14619300109 Piston 36 mm, 4 x 0,3 SlitsPiston 36 mm, 4 x 0,3 Slits
-
14619300111 Piston 36 mm, 5 x 0,3 SlitsPiston 36 mm, 5 x 0,3 Slits
-
14619300110 Piston 36 mm, 6 x 0,3 SlitsPiston 36 mm, 6 x 0,3 Slits
-
15619300162 Shim 36 mm, 12 x 0,114Shim 36 mm, 12 x 0,114
-
15619300075 Shim 36 mm, 12 x 0,152Shim 36 mm, 12 x 0,152
-
15619300117 Shim 36 mm, 12 x 0,203Shim 36 mm, 12 x 0,203
-
15619300120 Shim 36 mm, 12 x 0,254Shim 36 mm, 12 x 0,254
-
15619300076 Shim 36 mm, 13 x 0,114Shim 36 mm, 13 x 0,114
-
15619300077 Shim 36 mm, 13 x 0,152Shim 36 mm, 13 x 0,152
-
15619300078 Shim 36 mm, 13 x 0,203Shim 36 mm, 13 x 0,203
-
15619300079 Shim 36 mm, 13 x 0,254Shim 36 mm, 13 x 0,254
-
15619300080 Shim 36 mm, 14 x 0,114Shim 36 mm, 14 x 0,114
-
15619300081 Shim 36 mm, 14 x 0,152Shim 36 mm, 14 x 0,152
-
15619300082 Shim 36 mm, 14 x 0,203Shim 36 mm, 14 x 0,203
-
15619300083 Shim 36 mm. 14 X 0,254Shim 36 mm. 14 X 0,254
-
15619300121 Shim 36 mm, 15 x 0,114Shim 36 mm, 15 x 0,114
-
15619300115 Shim 36 mm, 15 x 0,152Shim 36 mm, 15 x 0,152
-
15619300122 Shim 36 mm, 15 x 0,203Shim 36 mm, 15 x 0,203
-
15619300118 Shim 36 mm, 15 x 0,254Shim 36 mm, 15 x 0,254
-
15619300084 Shim 36 mm, 16 x 0,114Shim 36 mm, 16 x 0,114
-
15619300114 Shim 36 mm, 16 x 0,152Shim 36 mm, 16 x 0,152
-
15619300119 Shim 36 mm, 16 x 0,203Shim 36 mm, 16 x 0,203
-
15619300116 Shim 36 mm, 16 x 0,254Shim 36 mm, 16 x 0,254
-
15619300085 Shim 36 mm, 17 x 0,114Shim 36 mm, 17 x 0,114
-
15619300086 Shim 36 mm, 17 x 0,152Shim 36 mm, 17 x 0,152
-
15619300087 Shim 36 mm, 17 x 0,203Shim 36 mm, 17 x 0,203
-
15619300058 Shim 36 mm, 17 x 0,254Shim 36 mm, 17 x 0,254
-
15619300068 Shim 36 mm, 18 x 0,114Shim 36 mm, 18 x 0,114
-
15619300123 Shim 36 mm, 18 x 0,152Shim 36 mm, 18 x 0,152
-
15619300124 Shim 36 mm, 18 x 0,203Shim 36 mm, 18 x 0,203
-
15230016 Shim 36 mm, 18 x 0,254Shim 36 mm, 18 x 0,254
-
15619300088 Shim 36 mm, 19 x 0,114Shim 36 mm, 19 x 0,114
-
15619300089 Shim 36 mm, 19 x 0,152Shim 36 mm, 19 x 0,152
-
15619300090 Shim 36 mm, 19 x 0,203Shim 36 mm, 19 x 0,203
-
15619300091 Shim 36 mm, 19 x 0,254Shim 36 mm, 19 x 0,254
-
15619300125 Shim 36 mm, 20 x 0,114Shim 36 mm, 20 x 0,114
-
15619300126 Shim 36 mm, 20 x 0,152Shim 36 mm, 20 x 0,152
-
15619300127 Shim 36 mm, 20 x 0,203Shim 36 mm, 20 x 0,203
-
15230017 Shim 36 mm, 20 x 0,254Shim 36 mm, 20 x 0,254
-
15619300128 Shim 36 mm, 21 x 0,114Shim 36 mm, 21 x 0,114
-
15619300092 Shim 36 mm, 21 x 0,152Shim 36 mm, 21 x 0,152
-
15619300093 Shim 36 mm, 21 x 0,203Shim 36 mm, 21 x 0,203
-
15619300094 Shim 36 mm, 21 x 0,254Shim 36 mm, 21 x 0,254
-
15230018 Shim 36 mm, 22 x 0,114Shim 36 mm, 22 x 0,114
-
15619300129 Shim 36 mm, 22 x 0,152Shim 36 mm, 22 x 0,152
-
15619300098 Shim 36 mm, 22 x 0,203Shim 36 mm, 22 x 0,203
-
15230019 Shim 36 mm, 22 x 0,254Shim 36 mm, 22 x 0,254
-
15230021 Shim 36 mm, 24 x 0,114Shim 36 mm, 24 x 0,114
-
15230022 Shim 36 mm, 24 x 0,152Shim 36 mm, 24 x 0,152
-
15230023 Shim 36 mm, 24 x 0,203Shim 36 mm, 24 x 0,203
-
15619300095 Shim 36 mm, 24 x 0,254Shim 36 mm, 24 x 0,254
-
15230024 Shim 36 mm, 26 x 0,114Shim 36 mm, 26 x 0,114
-
15619300130 Shim 36 mm, 26 x 0,152Shim 36 mm, 26 x 0,152
-
15619300131 Shim 36 mm, 26 x 0,203Shim 36 mm, 26 x 0,203
-
15619300099 Shim 36 mm, 26 x 0,254Shim 36 mm, 26 x 0,254
-
15230025 Shim 36 mm, 28 x 0,114Shim 36 mm, 28 x 0,114
-
15619300096 Shim 36 mm, 28 x 0,152Shim 36 mm, 28 x 0,152
-
15619300102 Shim 36 mm, 28 x 0,203Shim 36 mm, 28 x 0,203
-
15230026 Shim 36 mm, 28 x 0,254Shim 36 mm, 28 x 0,254
-
15619300104 Shim 36 mm, 30 x 0,152Shim 36 mm, 30 x 0,152
-
15619300132 Shim 36 mm, 30 x 0,203Shim 36 mm, 30 x 0,203
-
15619300113 Shim 36 mm, 30 x 0,254Shim 36 mm, 30 x 0,254
