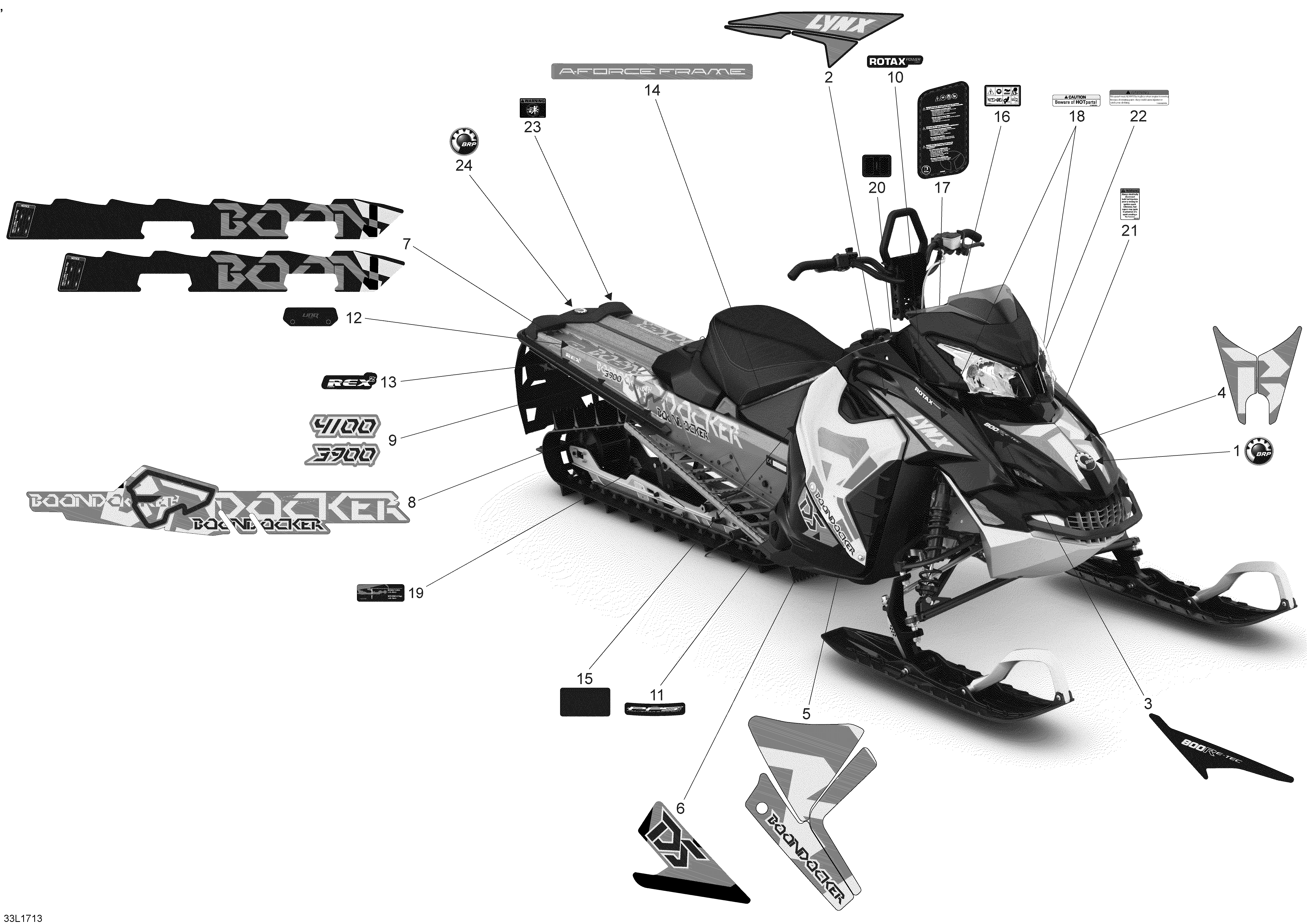

09- Decals All Model для BRP Lynx BoonDocker DS, 2017 - 2017
-
№АртикулНазвание
-
1516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516007042 LH Upper Side Panel. STD EditionLH Upper Side Panel. STD Edition
-
2516007043 RH Upper Side Panel. STD EditionRH Upper Side Panel. STD Edition
-
2516007531 Upper Side Panel Decal. Black EditionUpper Side Panel Decal. Black Edition
-
3516007046 LH Hood Decal. STD EditionLH Hood Decal. STD Edition
-
3516007047 RH Hood Decal. STD EditionRH Hood Decal. STD Edition
-
3516007654 Hood Decal. Black EditionHood Decal. Black Edition
-
4516007048 Hodd Decal. Without AIRRAD OptionHodd Decal. Without AIRRAD Option
-
5516007049 LH Side Panel Decal. STD EditionLH Side Panel Decal. STD Edition
-
5516007050 RH Side Panel Decal. STD EditionRH Side Panel Decal. STD Edition
-
5516007656 Side Panel Decal. Black EditionSide Panel Decal. Black Edition
-
6516007053 LH Down Side Panel Decal. STD EditionLH Down Side Panel Decal. STD Edition
-
6516007054 RH Down Side Panel Decal. STD EditionRH Down Side Panel Decal. STD Edition
-
6516007657 Down Side Panel Decal. Black EditionDown Side Panel Decal. Black Edition
-
7516007067 LH Top Tunnel Decal. STD Edition 3900 PackageLH Top Tunnel Decal. STD Edition 3900 Package
-
7516007068 RH Top Tunnel Decal. STD Edition 3900 PackageRH Top Tunnel Decal. STD Edition 3900 Package
-
7516006990 LH Top Tunnel Decal. STD Edition 4100 PackageLH Top Tunnel Decal. STD Edition 4100 Package
-
7516006991 RH Top Tunnel Decal. STD Edition 4100 PackageRH Top Tunnel Decal. STD Edition 4100 Package
-
7516007659 Top Tunnel Decal. Black Edition 3900 PackageTop Tunnel Decal. Black Edition 3900 Package
-
7516007660 Top Tunnel Decal. Black Edition 4100 PackageTop Tunnel Decal. Black Edition 4100 Package
-
8516006984 LH Tunnel Decal. STD EditionLH Tunnel Decal. STD Edition
-
8516006985 RH Tunnel Decal. STD EditionRH Tunnel Decal. STD Edition
-
8516007655 Tunnel Decal. Black EditionTunnel Decal. Black Edition
-
9516008105 Tunnel Decal. Black Edition 3900 PackageTunnel Decal. Black Edition 3900 Package
-
9516008106 Tunnel Decal. Black Edition 4100 PackageTunnel Decal. Black Edition 4100 Package
-
9516007071 Tunnel Decal. STD Edition 3900 PackageTunnel Decal. STD Edition 3900 Package
-
9516007072 Tunnel Decal. STD Edition 4100 PackageTunnel Decal. STD Edition 4100 Package
-
10516006331 Rotax Power DecalRotax Power Decal
-
11516006805 PPS2 DecalPPS2 Decal
-
12516006485 Q-Link DecalQ-Link Decal
-
13516007534 REX II Platform DecalREX II Platform Decal
-
14516007653 A-Force Frame Decal. STD EditionA-Force Frame Decal. STD Edition
-
14516005936 A-Force Frame Decal. Black EditionA-Force Frame Decal. Black Edition
-
155447012 Oil Checking LabelOil Checking Label
-
16516003919 Warning DecalWarning Decal
-
17516004607 Label EN/FI/SWELabel EN/FI/SWE
-
18516006903 Hot Parts DecalHot Parts Decal
-
19516007589 Track Tension DecalTrack Tension Decal
-
20516006361 Cover DecalCover Decal
-
21516005583 Warning Decal, InjectorsWarning Decal, Injectors
-
22516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
23516007584 Warning DecalWarning Decal
-
24516006887 BRP Logo, 48 mmBRP Logo, 48 mm
