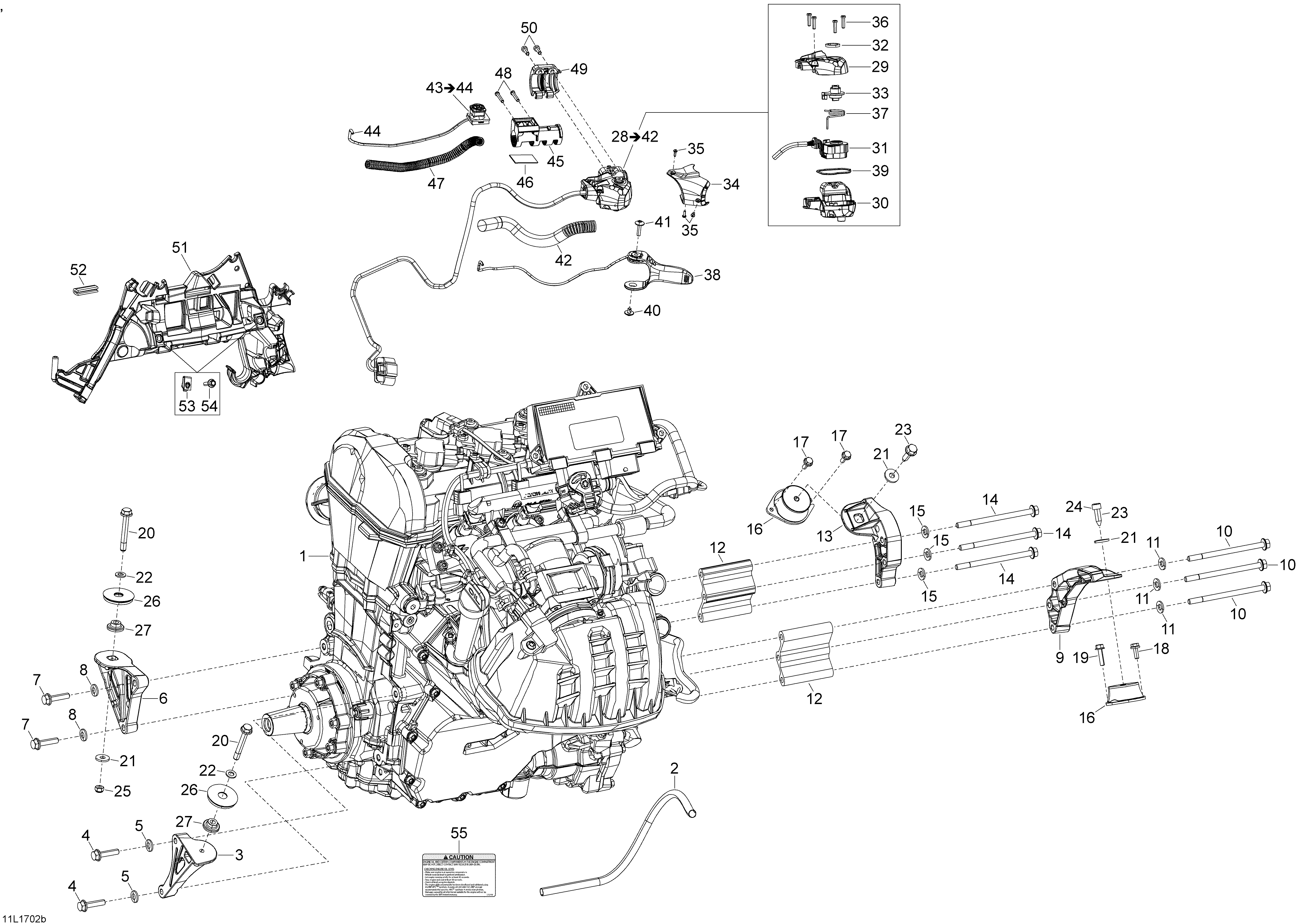

01- Engine And Engine Support 4 Strokes для BRP Lynx XTRIM SC (4-Stroke) - 2017
-
№АртикулНазвание
-
2512061067 Protection TubeProtection Tube
-
3512060660 Rear Support (PTO)Rear Support (PTO)
-
4207583586 Hex. Flange Screw M8 x 35, Scotch GripHex. Flange Screw M8 x 35, Scotch Grip
-
5234281474 Conical Spring Washer M8Conical Spring Washer M8
-
6512061140 Front Support (PTO)Front Support (PTO)
-
7207583586 Hex. Flange Screw M8 x 35, Scotch GripHex. Flange Screw M8 x 35, Scotch Grip
-
8234281474 Conical Spring Washer M8Conical Spring Washer M8
-
9512061142 Rear Support (MAG)Rear Support (MAG)
-
10207584544 Hex. Flange Screw M8 x 45, Scotch GripHex. Flange Screw M8 x 45, Scotch Grip
-
11250200157 Conical Spring Washer M8Conical Spring Washer M8
-
13512061141 Front Support (MAG)Front Support (MAG)
-
14207584544 Hex. Flange Screw M8 x 45, Scotch GripHex. Flange Screw M8 x 45, Scotch Grip
-
15250200157 Conical Spring Washer M8Conical Spring Washer M8
-
16512060729 Rubber MountRubber Mount
-
17207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
18207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
19207562534 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
20207586044 Hex. Flange Screw M8 x 60, Scotch GripHex. Flange Screw M8 x 60, Scotch Grip
-
21503183200 WasherWasher
-
22250200008 Flat Washer M8Flat Washer M8
-
23250000257 Cone Screw M8 x 30Cone Screw M8 x 30
-
24250000639 Cone Screw M8 x 25Cone Screw M8 x 25
-
25232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
26512060826 StopperStopper
-
27512060285 SpacerSpacer
-
28512061113 Housing Ass'y. Includes 28 To 42Housing Ass'y. Includes 28 To 42
-
32293250307 Shaft SealShaft Seal
-
34512060862 CapCap
-
35250000623 Torx Screw 2.9 x 9.5Torx Screw 2.9 x 9.5
-
36250000671 Torx ScrewTorx Screw
-
41250000528 Torx Screw M5 x 20Torx Screw M5 x 20
-
42515177716 Protector TubeProtector Tube
-
43515177362 Kill Switch. Includes 43 To 44Kill Switch. Includes 43 To 44
-
44515175232 Male TerminalMale Terminal
-
45512060844 SupportSupport
-
46294000973 Friction TapeFriction Tape
-
47515177716 Protector TubeProtector Tube
-
48250000263 Torx Screw #8-18Torx Screw #8-18
-
49512060987 Front HousingFront Housing
-
50250000632 Torx Screw M5 x 14Torx Screw M5 x 14
-
51512060994 ECU SupportECU Support
-
52271001530 Protect TrimProtect Trim
-
53250000079 Panel Nut M5Panel Nut M5
-
54207552044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
55516005521 Engine Oil Level Caution DecalEngine Oil Level Caution Decal
