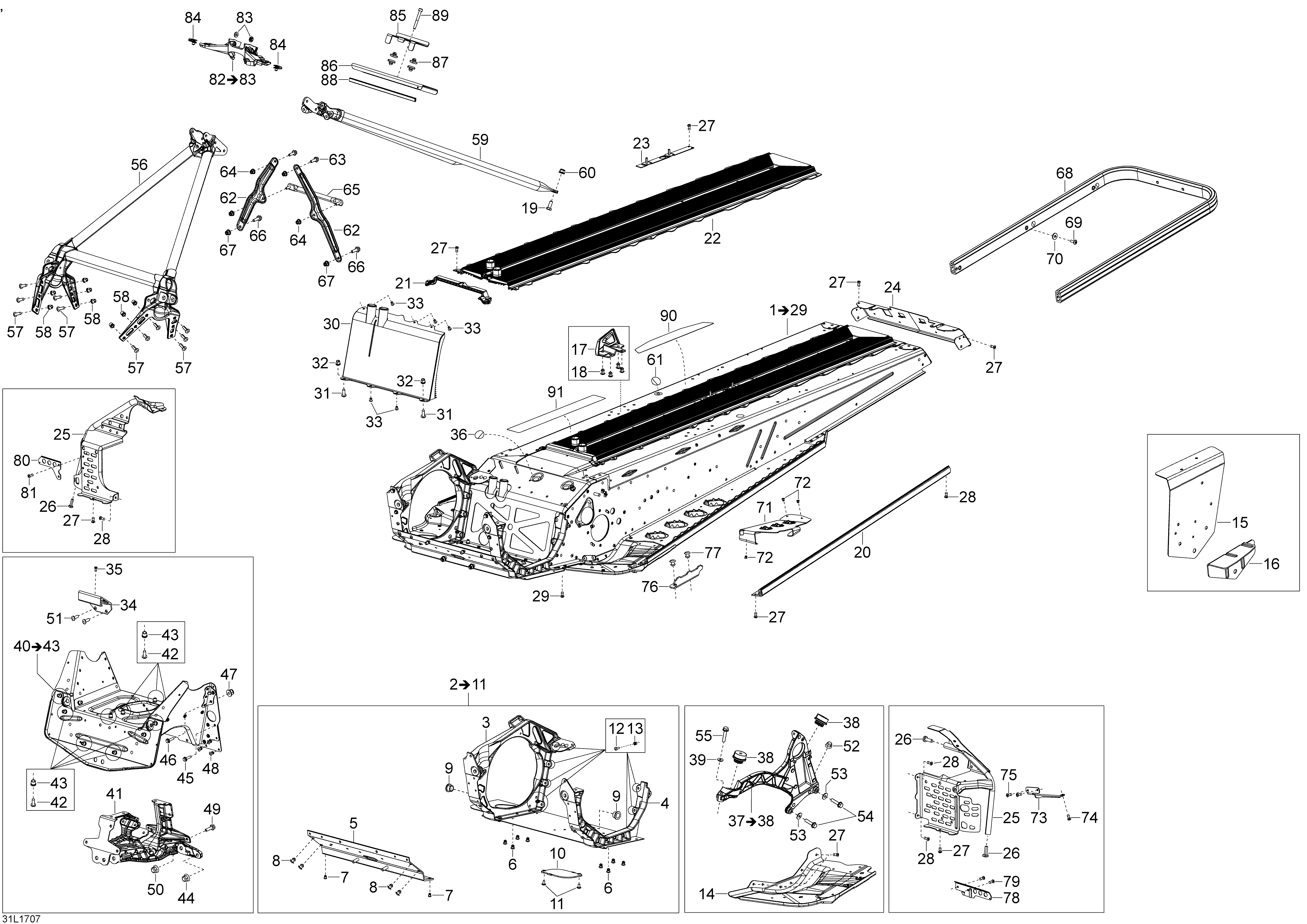

09- Frame для BRP Lynx XTRIM SC (4-Stroke) - 2017
-
№АртикулНазвание
-
1518329128 Black Frame. Includes 1 To 29, Model-stdBlack Frame. Includes 1 To 29, Model-std
-
1518328876 Black Frame. Includes 1 To 29, Model-ECSBlack Frame. Includes 1 To 29, Model-ECS
-
2518327754 E Module. Includes 2 To 11E Module. Includes 2 To 11
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505072690 CushionCushion
-
11250000767 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
12207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
13233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
14518327242 LH Front TunnelLH Front Tunnel
-
14518327243 RH Front TunnelRH Front Tunnel
-
16518327848 LH Rear SupportLH Rear Support
-
16518327847 RH Rear SupportRH Rear Support
-
17518328436 RH Rear BaseRH Rear Base
-
17518328435 LH Rear BaseLH Rear Base
-
18293150147 RivetRivet
-
19207182086 Hex. Cap Screw M8 x 20Hex. Cap Screw M8 x 20
-
20518327465 Side ProfileSide Profile
-
21518326656 SealSeal
-
22518326728 Rear RadiatorRear Radiator
-
24518327240 Rear CapRear Cap
-
25518328940 RH StirrupRH Stirrup
-
25518328528 LH StirrupLH Stirrup
-
26250000752 Pan HD Torx Screw M8 x 25Pan HD Torx Screw M8 x 25
-
27390909200 RivetRivet
-
28390909100 RivetRivet
-
29293150096 RivetRivet
-
30518327907 Front RadiatorFront Radiator
-
31207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
32233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
33390909200 RivetRivet
-
34518326178 MAG SupportMAG Support
-
35293150174 RivetRivet
-
36518325560 Adhesive PatchAdhesive Patch
-
37518327535 Brace. Includes 37 To 38Brace. Includes 37 To 38
-
38512060295 Rubber MountRubber Mount
-
39234281474 Spring WasherSpring Washer
-
40518328393 Cross Member. Includes 40 To 43Cross Member. Includes 40 To 43
-
41518327487 SupportSupport
-
42207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
43233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
44233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
45210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
46207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
47233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
48293150179 RivetRivet
-
49207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
50233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
51207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
52233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
53234281474 Spring WasherSpring Washer
-
54205083044 Socket HD Screw M8 x 30Socket HD Screw M8 x 30
-
55207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
56518327565 Front MemberFront Member
-
57207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
58233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
59518327237 Rear MemberRear Member
-
60233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
61518325560 Adhesive PatchAdhesive Patch
-
62518326848 Upper ColumnUpper Column
-
63207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
64233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
65518326355 Upper ColumnUpper Column
-
66207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
67233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
68518328086 Black Rear BumperBlack Rear Bumper
-
69250000779 Torx Truss M6 x 18Torx Truss M6 x 18
-
70224061201 Flat WasherFlat Washer
-
71518327979 Black LH FootrestBlack LH Footrest
-
71518327980 Black RH FootrestBlack RH Footrest
-
7236005 RivetRivet
-
73518328079 Brake Cover SupportBrake Cover Support
-
74390909200 RivetRivet
-
75293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
76518328543 Black Side GripBlack Side Grip
-
77293150119 RivetRivet
-
78518327613 LH Spring Support PlateLH Spring Support Plate
-
79293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
80518327614 RH Spring Support PlateRH Spring Support Plate
-
81390909200 RivetRivet
-
82518327145 Support. Includes 82 To 83Support. Includes 82 To 83
-
84250000079 Panel Nut M5Panel Nut M5
-
85513033746 Upper Support PlateUpper Support Plate
-
86513033747 Lower Support PlateLower Support Plate
-
87605452114 Rubber PlugRubber Plug
-
89205065044 Socket HD Screw M6 x 50Socket HD Screw M6 x 50
-
90516006448 Fuel Tank Protection DecalFuel Tank Protection Decal
-
91516007041 Fuel Tank Protection DecalFuel Tank Protection Decal
