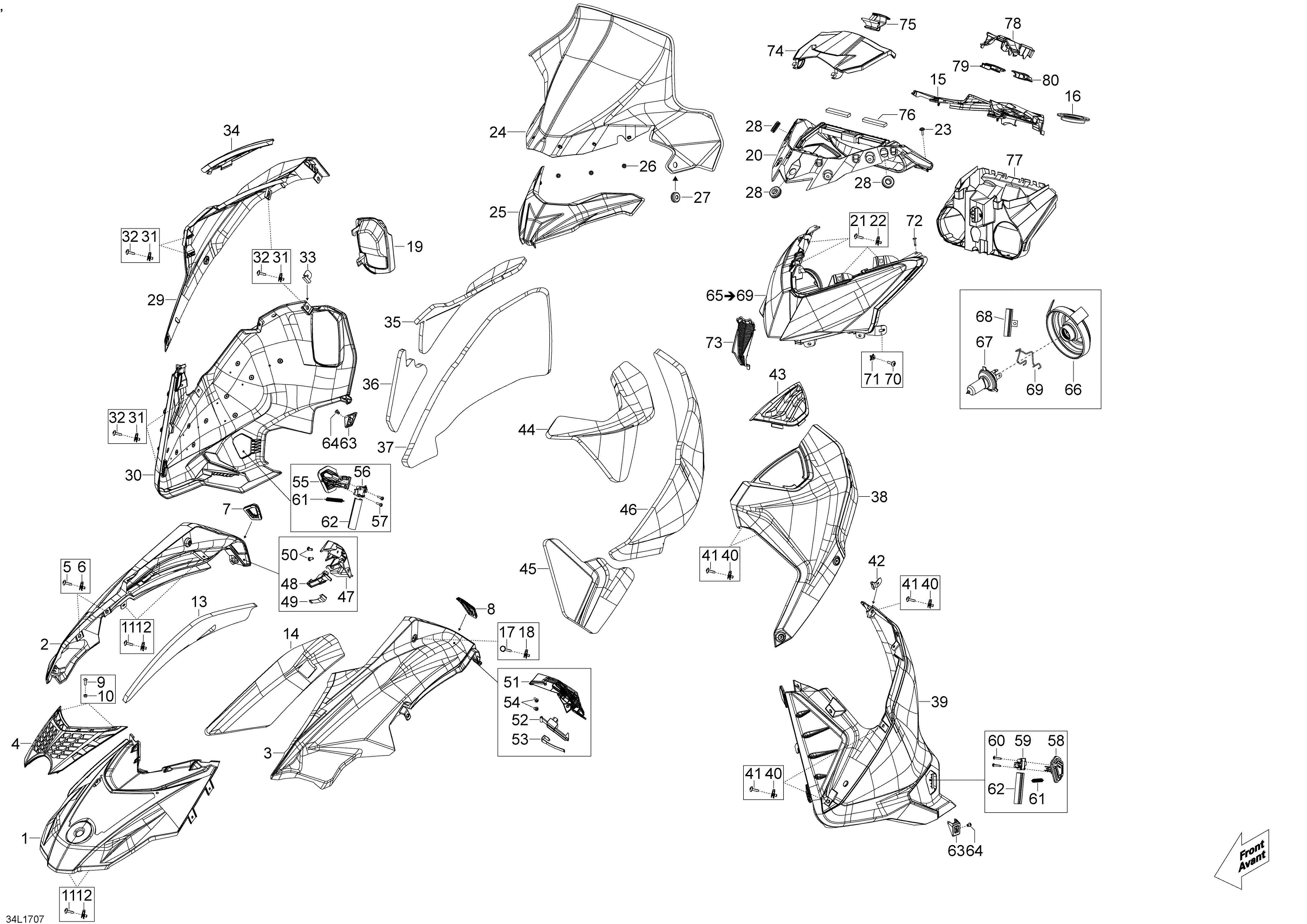

09- Hood And Windshield для BRP Lynx XTRIM SC (4-Stroke) - 2017
-
№АртикулНазвание
-
1517305571 White HoodWhite Hood
-
2517305418 RH HoodRH Hood
-
3517305419 LH HoodLH Hood
-
4517305362 Hood GrillHood Grill
-
5250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
6250000079 Panel Nut M5Panel Nut M5
-
7517305344 RH Rubber ButtonRH Rubber Button
-
8517305345 LH Rubber ButtonLH Rubber Button
-
9235551454 Button Head Torx Screw M5 x 14Button Head Torx Screw M5 x 14
-
10233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
11250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
12250000079 Panel Nut M5Panel Nut M5
-
13517305481 FoamFoam
-
14517305482 FoamFoam
-
15517305205 Console RearConsole Rear
-
16517304518 Console NutConsole Nut
-
17517305531 KnobKnob
-
18250000079 Panel Nut M5Panel Nut M5
-
19517305061 Black RH ConsoleBlack RH Console
-
20517305511 Indicator SupportIndicator Support
-
21250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
22250000079 Panel Nut M5Panel Nut M5
-
23250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
25517305307 SupportSupport
-
26732610072 Push NutPush Nut
-
27517302841 GrommetGrommet
-
28517303756 GrommetGrommet
-
29517305425 White RH PanelWhite RH Panel
-
30517305249 Black RH PanelBlack RH Panel
-
31250000079 Panel Nut M5Panel Nut M5
-
32250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
33517305515 Guide PlateGuide Plate
-
34517305251 GrillGrill
-
35517305484 FoamFoam
-
36517305485 FoamFoam
-
37517305486 FoamFoam
-
38517305426 White LH PanelWhite LH Panel
-
39517305253 Black LH PanelBlack LH Panel
-
40250000079 Panel Nut M5Panel Nut M5
-
41250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
42517305515 Guide PlateGuide Plate
-
43517305254 GrillGrill
-
44517305488 FoamFoam
-
45517305489 FoamFoam
-
46517305490 FoamFoam
-
47517305315 RH Lock BodyRH Lock Body
-
48517306019 Lock ArmLock Arm
-
49517305317 Lock SpringLock Spring
-
50205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
51517305319 LH Lock BodyLH Lock Body
-
52517306019 Lock ArmLock Arm
-
53517305317 Lock SpringLock Spring
-
54205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
55517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
56517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
57250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
58517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
59517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
60250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
61517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
62517305452 Bottom Lock SleeveBottom Lock Sleeve
-
63517305323 Side Panel SupportSide Panel Support
-
64390909100 RivetRivet
-
65517306180 Headlamp. Includes 65 To 69Headlamp. Includes 65 To 69
-
66219400070 CapCap
-
67515176274 H4 Halogen Bulb (60/55W, 12V)H4 Halogen Bulb (60/55W, 12V)
-
68219800282 HolderHolder
-
69219800281 SpringSpring
-
70250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
71250100035 Jack Nut M5Jack Nut M5
-
72250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
73517305350 CapCap
-
74517304912 CoverCover
-
75517304917 LatchLatch
-
76517305157 SealSeal
-
77517305095 TrunkTrunk
-
78517304970 SupportSupport
-
79517305180 CapCap
-
80517305148 CapCap
