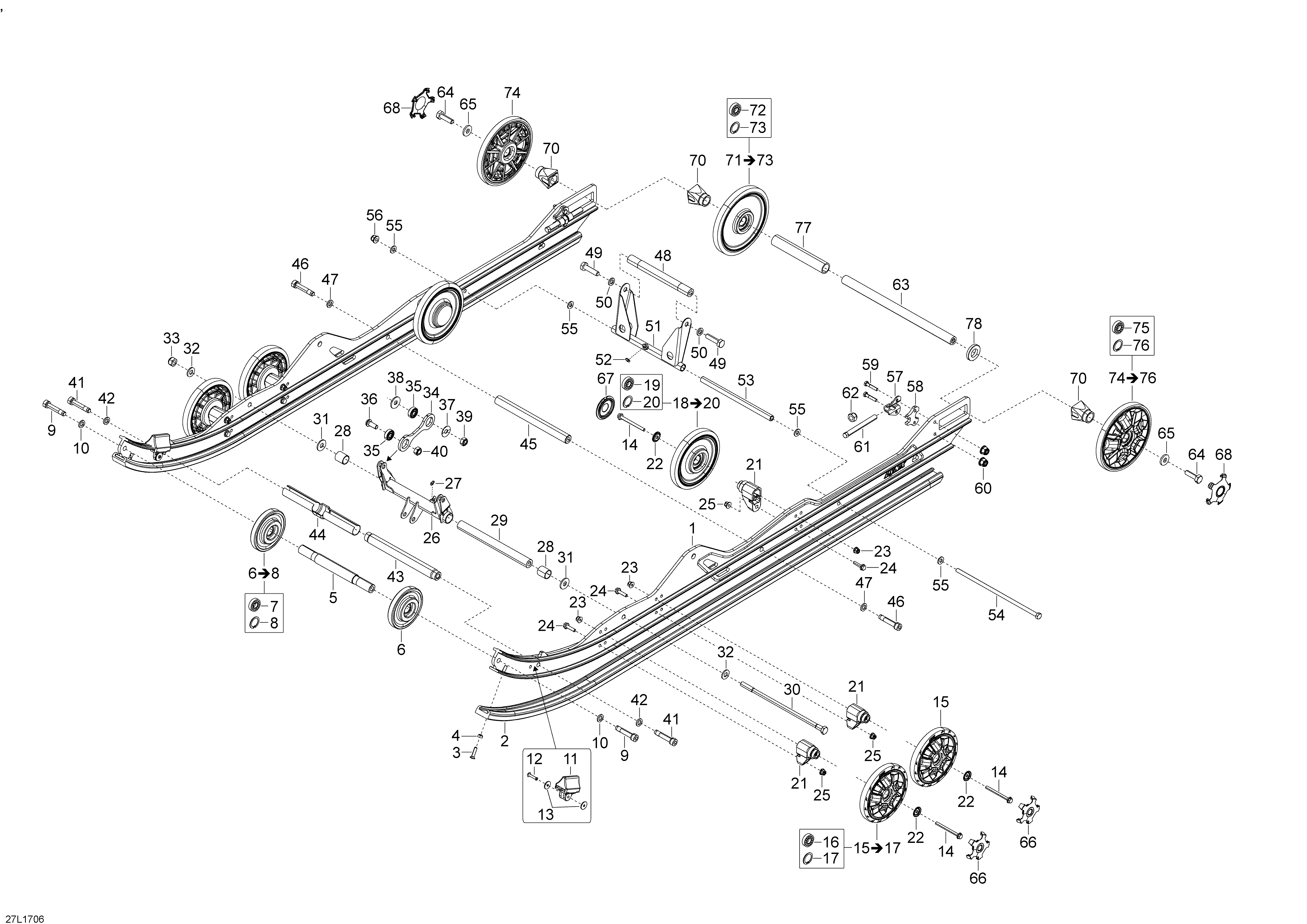

08- Rear Suspension для BRP Lynx XTRIM SC (4-Stroke) - 2017
-
№АртикулНазвание
-
1503194244 Black LH RunnerBlack LH Runner
-
1503194245 Black RH RunnerBlack RH Runner
-
2503193170 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
10503192496 WasherWasher
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
13503191273 WasherWasher
-
14207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
15503193734 Wheel 141mm. Includes 15 To 17Wheel 141mm. Includes 15 To 17
-
16503190396 Ball BearingBall Bearing
-
18503191316 Wheel 141mm. Includes 18 To 20Wheel 141mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
20415129371 CirclipCirclip
-
21503193894 SupportSupport
-
22503191820 Cup WasherCup Washer
-
23233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
24207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
25233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
26503193580 Front SwingFront Swing
-
27408200700 Grease FittingGrease Fitting
-
28503193822 BushingBushing
-
29503193893 Lower ShaftLower Shaft
-
30503193227 Bolt M10 x 251Bolt M10 x 251
-
31503191926 WasherWasher
-
32250200138 WasherWasher
-
33233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
34605254159 Connecting RodConnecting Rod
-
35605631003 Ball BearingBall Bearing
-
36205402546 Socket HD Screw M10 x 25Socket HD Screw M10 x 25
-
3725004 Spring CupSpring Cup
-
38234002600 Washer M10Washer M10
-
39233401414 Lock Spring Nut M10Lock Spring Nut M10
-
40232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
41205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
42503192496 WasherWasher
-
43605353958 ShaftShaft
-
44605355096 Limiter Strap RetainerLimiter Strap Retainer
-
455343471 ShaftShaft
-
46205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
47503192496 WasherWasher
-
48503193638 Lower ShaftLower Shaft
-
49207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
50503192496 WasherWasher
-
51503194342 Rear SwingRear Swing
-
52408200700 Grease FittingGrease Fitting
-
53503189156 Pivot AxlePivot Axle
-
54503192440 Bolt M8 x 248Bolt M8 x 248
-
55503192494 WasherWasher
-
56233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
57503192814 TensionerTensioner
-
58503193250 SpacerSpacer
-
59207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
60233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
61230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
62233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
63503190429 Rear AxleRear Axle
-
64250000019 Hex. Cap Screw M10 x 35Hex. Cap Screw M10 x 35
-
65503190439 WasherWasher
-
66503193884 White Wheel CapWhite Wheel Cap
-
67503192771 Black Wheel CapBlack Wheel Cap
-
68503193887 White Wheel CapWhite Wheel Cap
-
70503190428 SpacerSpacer
-
71503192140 Wheel 165mm. Includes 71 To 73Wheel 165mm. Includes 71 To 73
-
72503190396 Ball BearingBall Bearing
-
73415129371 CirclipCirclip
-
74503193809 Wheel 165mm. Includes 74 To 76Wheel 165mm. Includes 74 To 76
-
75503190396 Ball BearingBall Bearing
-
76415129371 CirclipCirclip
-
77503190430 SpacerSpacer
-
78503190432 WasherWasher
