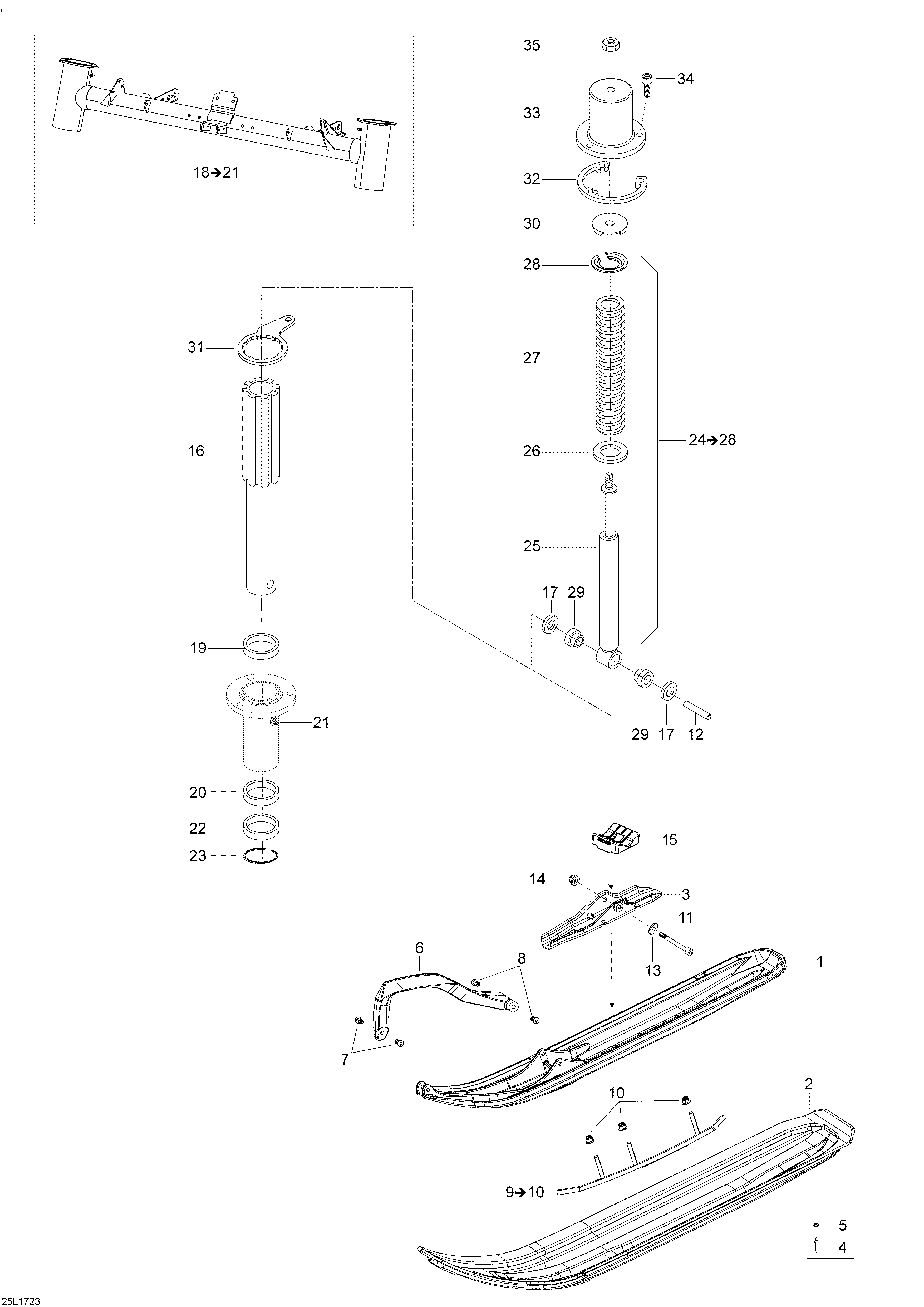

07- Front Suspension And Ski для BRP Lynx 69 YETI ARMY, 2017 - 2017
-
№АртикулНазвание
-
1505073154 Black Blade SkiBlack Blade Ski
-
2506152575 RH Blade Ski LinerRH Blade Ski Liner
-
2506152574 LH Blade Ski LinerLH Blade Ski Liner
-
3505073240 Ski Bridge WeldSki Bridge Weld
-
4293150206 Pop RivetPop Rivet
-
5234061410 Flat WasherFlat Washer
-
6505072976 Black HandleBlack Handle
-
7505071812 RetainerRetainer
-
8505072133 RetainerRetainer
-
9860200959 Ski Runner Kit. Includes 9 To 10Ski Runner Kit. Includes 9 To 10
-
10232500416 Elastic Flange Nut M10Elastic Flange Nut M10
-
11231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
12505073209 Ski AxleSki Axle
-
13732900049 WasherWasher
-
14233201414 Nut Elastic Flange M10Nut Elastic Flange M10
-
15505073411 Rubber DamperRubber Damper
-
16505073200 Ski LegSki Leg
-
17505072579 SpacerSpacer
-
18505073967 Module Ass'y. Includes 18 To 21Module Ass'y. Includes 18 To 21
-
19414803100 Cushion UpperCushion Upper
-
20414803200 Cushion LowerCushion Lower
-
21408200700 Grease FittingGrease Fitting
-
22505072696 Oil SealOil Seal
-
23505072698 CirclipCirclip
-
24505073302 Front Shock Ass'y. Includes 24 To 28Front Shock Ass'y. Includes 24 To 28
-
25505073046 Front ShockFront Shock
-
26505072578 WasherWasher
-
27505073204 SpringSpring
-
28505072619 Spring StopperSpring Stopper
-
29572034500 CushionCushion
-
30605354835 Rubber BumperRubber Bumper
-
31505073823 Steering ArmSteering Arm
-
32505073983 SpacerSpacer
-
33505072874 LH CoverLH Cover
-
33505072875 RH CoverRH Cover
-
34205082044 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
35233201414 Elastic Flange Nut M10Elastic Flange Nut M10
