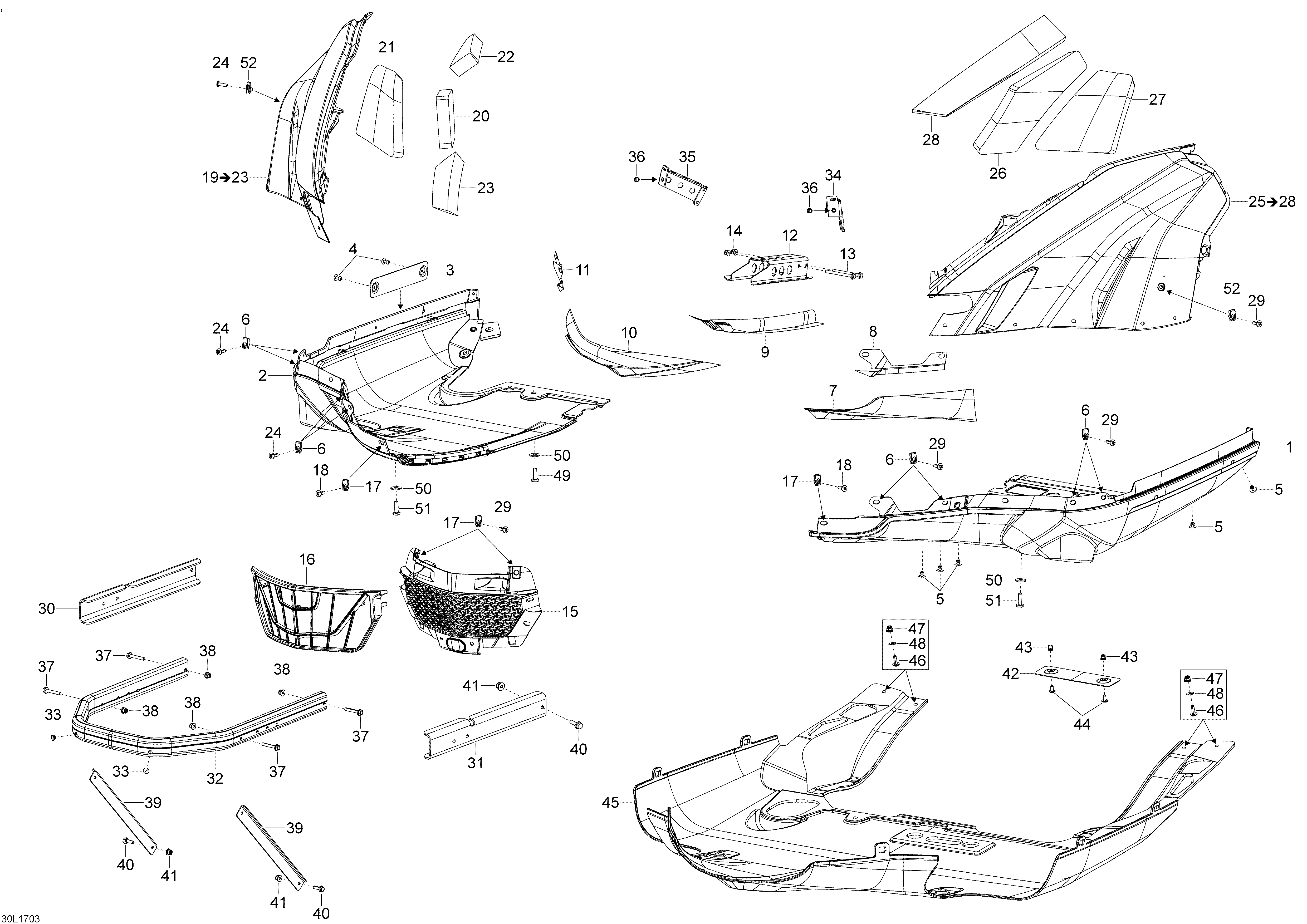

09- Bottom Pan для BRP Lynx 69 YETI ARMY, 2017 - 2017
-
№АртикулНазвание
-
1502007447 Black LH Lower Bottom PanBlack LH Lower Bottom Pan
-
2502007446 Black RH Lower Bottom PanBlack RH Lower Bottom Pan
-
3502007255 Heat Insulation PlateHeat Insulation Plate
-
4293150211 RivetRivet
-
5293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
6250000048 Extruded Panel Nut M6Extruded Panel Nut M6
-
7508000832 Heat ShieldHeat Shield
-
8508000835 Heat ShieldHeat Shield
-
9508000837 Heat ShieldHeat Shield
-
10508000833 Heat ShieldHeat Shield
-
11508000836 Heat ShieldHeat Shield
-
12502007688 SupportSupport
-
13207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
14233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
15502007140 Front GrillFront Grill
-
17250000048 Extruded Panel Nut M6Extruded Panel Nut M6
-
18250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
19502007292 Black RH Bottom Pan Ass'y. Includes 19 To 23Black RH Bottom Pan Ass'y. Includes 19 To 23
-
20502007133 InsulatorInsulator
-
21502007132 InsulatorInsulator
-
22508000828 HEAT SHIELDHEAT SHIELD
-
23502007009 InsulatorInsulator
-
24250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
25502007294 Black LH Bottom Pan Ass'y. Includes 25 To 28Black LH Bottom Pan Ass'y. Includes 25 To 28
-
26502007088 InsulatorInsulator
-
27502007131 InsulatorInsulator
-
28502007185 InsulatorInsulator
-
29250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
30502007379 RH Bumper SupportRH Bumper Support
-
31502007380 LH Bumper SupportLH Bumper Support
-
32502007484 Desert Sand Bumper (Short)Desert Sand Bumper (Short)
-
33293730047 Black DartBlack Dart
-
34502007535 LH Bottom Pan FastenerLH Bottom Pan Fastener
-
35502007536 RH Bottom Pan FastenerRH Bottom Pan Fastener
-
36605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
37207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
38233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
39502007382 Bumper SupportBumper Support
-
40207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
41233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
42518329004 Oil PlateOil Plate
-
43605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
44250000722 Torx Screw M6 x 20Torx Screw M6 x 20
-
45502007511 Skid PlateSkid Plate
-
46250000807 Torx Screw M6 x 20Torx Screw M6 x 20
-
47233261494 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
4820117 Washer M6Washer M6
-
49250000752 Torx Screw M8 x 25Torx Screw M8 x 25
-
50234082410 Flat WasherFlat Washer
-
51250000722 Torx Screw M6 x 20Torx Screw M6 x 20
-
52250000048 Extruded Panel Nut M6Extruded Panel Nut M6
