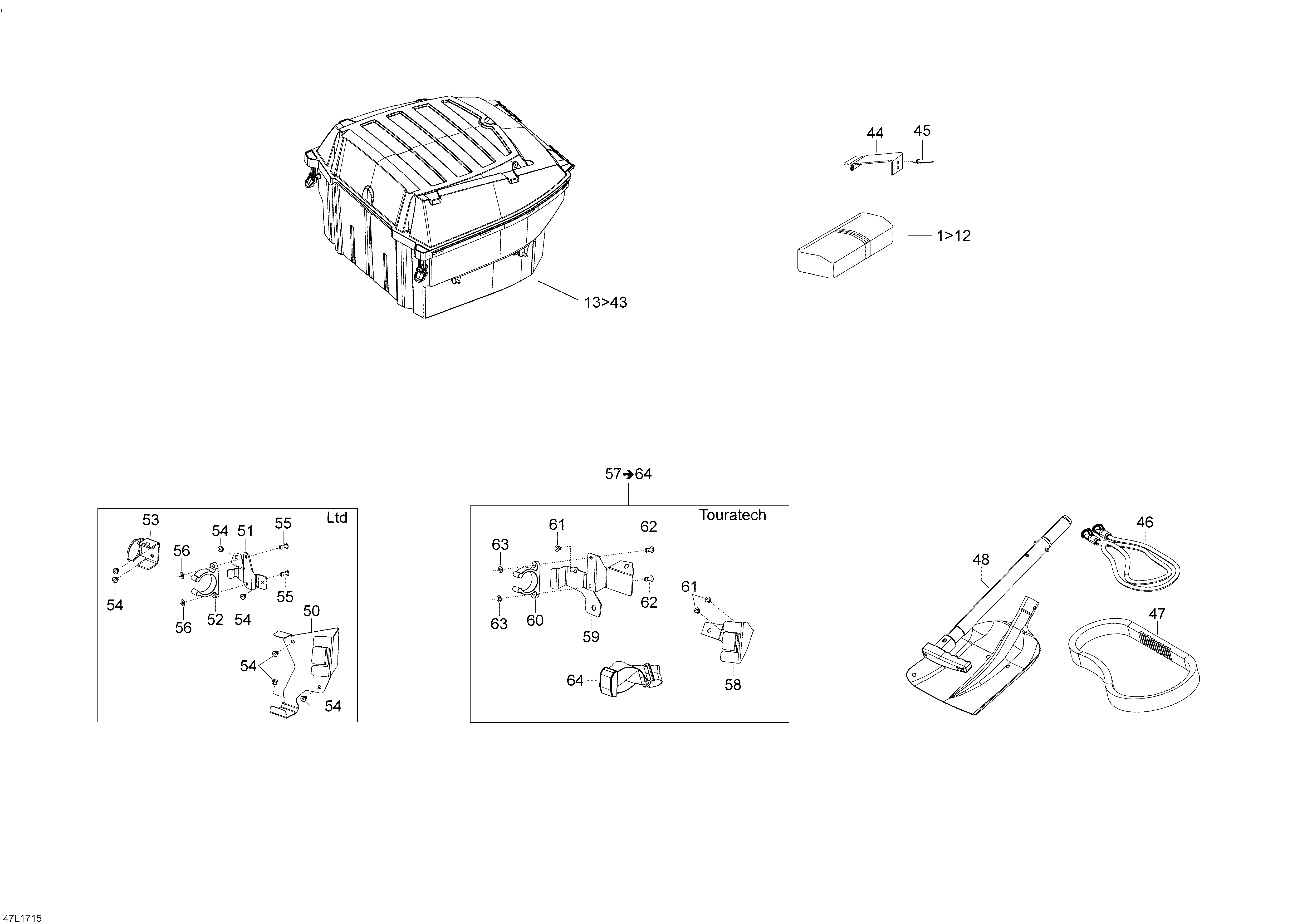

09- Options для BRP Lynx 69 YETI ARMY, 2017 - 2017
-
№АртикулНазвание
-
1>12520900004 Tools Box Ass'y. Includes 1 to 12Tools Box Ass'y. Includes 1 to 12
-
2710000742 Little Fuse, 5 Amperes. Not ShownLittle Fuse, 5 Amperes. Not Shown
-
3710000743 Little Fuse, 7.5 Amperes. Not ShownLittle Fuse, 7.5 Amperes. Not Shown
-
4710000744 Little Fuse, 10 Amperes. Not ShownLittle Fuse, 10 Amperes. Not Shown
-
5710000745 Little Fuse, 15 Amperes. Not ShownLittle Fuse, 15 Amperes. Not Shown
-
6710000746 Little Fuse, 20 Amperes. Not ShownLittle Fuse, 20 Amperes. Not Shown
-
7710000747 Little Fuse, 30 Amperes. Not ShownLittle Fuse, 30 Amperes. Not Shown
-
8515176274 Halogen Bulb, 60/55 W, 12 V. Not ShownHalogen Bulb, 60/55 W, 12 V. Not Shown
-
9520900002 Multifunctional Knife. Not ShownMultifunctional Knife. Not Shown
-
10572036310 Box Cover. Not ShownBox Cover. Not Shown
-
11520900003 Pad. Not ShownPad. Not Shown
-
12415129375 Spark Plug. Not ShownSpark Plug. Not Shown
-
13>43619560023 Cargo Box Ass'y. Includes 13 to 43Cargo Box Ass'y. Includes 13 to 43
-
15250200025 Washer M5. Not ShownWasher M5. Not Shown
-
17293750070 Seat Retainer Cable. Not ShownSeat Retainer Cable. Not Shown
-
1936036 Rivet. Not ShownRivet. Not Shown
-
21511000702 Pin. Not ShownPin. Not Shown
-
23510005273 Foam. Not ShownFoam. Not Shown
-
25207562044 Flanged Screw M6 X 20, Scotch Grip. Not ShownFlanged Screw M6 X 20, Scotch Grip. Not Shown
-
27234062410 Flat Washer 6 mm. Not ShownFlat Washer 6 mm. Not Shown
-
29516006887 BRP Logo, 48 mm. Not ShownBRP Logo, 48 mm. Not Shown
-
31517304572 Latch-Panel. Not ShownLatch-Panel. Not Shown
-
33605449087 Counter Roller. Not ShownCounter Roller. Not Shown
-
3540168 Screw M4 X 25. Not ShownScrew M4 X 25. Not Shown
-
37232541484 Elastic Stop Nut M4. Not ShownElastic Stop Nut M4. Not Shown
-
3920037 Washer. Not ShownWasher. Not Shown
-
4136037 Black Rivet. Not ShownBlack Rivet. Not Shown
-
42293250219 Seal. Not ShownSeal. Not Shown
-
43510005844 Rubber Shimm. Not ShownRubber Shimm. Not Shown
-
445346728 Tool Kit RackTool Kit Rack
-
4536108 RivetRivet
-
4621156 RopeRope
-
47417300383 Drive BeltDrive Belt
