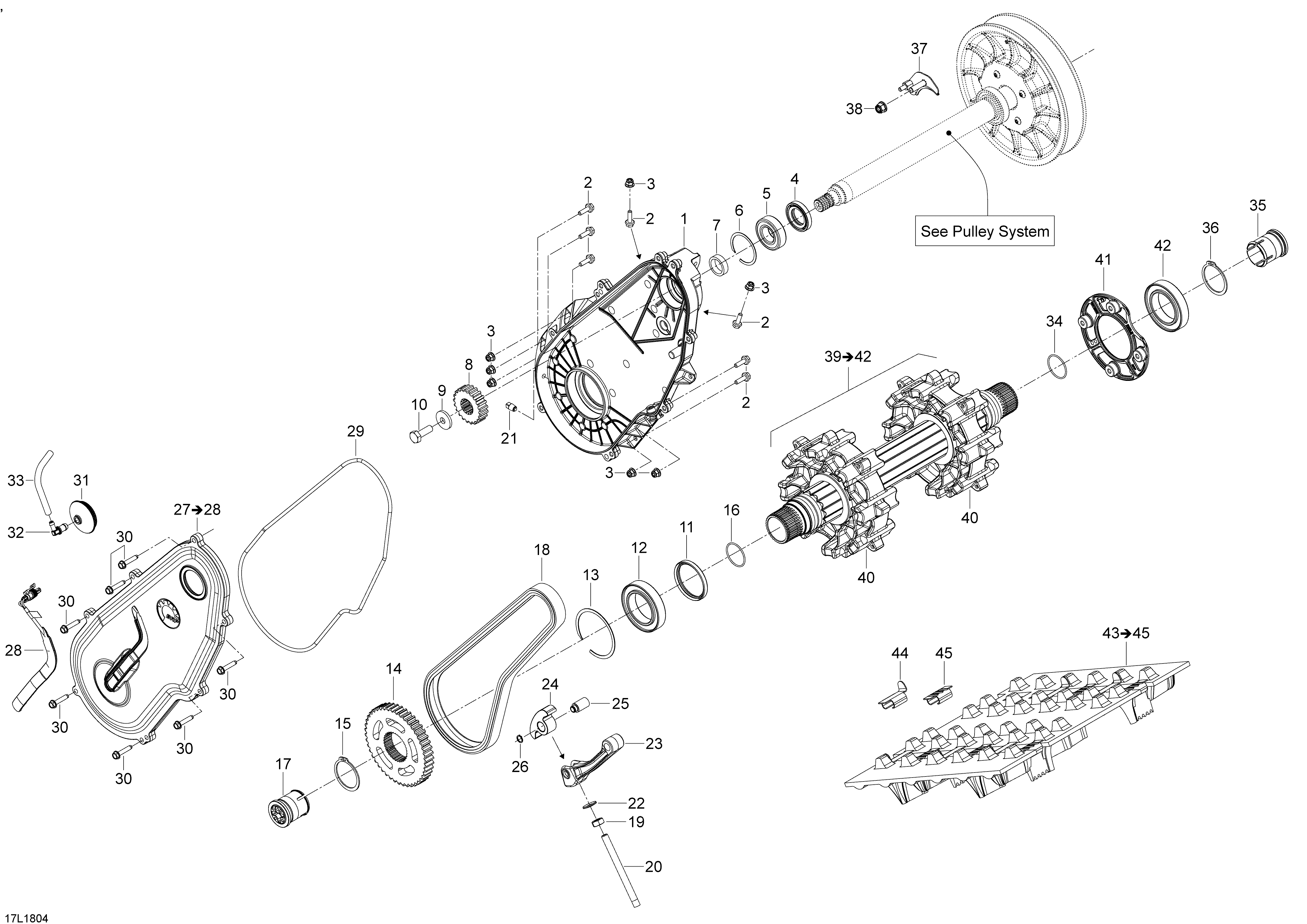

05- Drive Train Boondocker - 600HO E-TEC для BRP Lynx Boondocker 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1504153405 Chaincase. Includes 1 to 1aChaincase. Includes 1 to 1a
-
1a518325816 PlatePlate
-
4415049300 Oil SealOil Seal
-
5293350115 Ball BearingBall Bearing
-
6504152576 CirclipCirclip
-
7504152628 ShimShim
-
8504152030 Sprocket, 19 TeethSprocket, 19 Teeth
-
9504152784 Spring Washer M10Spring Washer M10
-
10207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
11504152571 SealSeal
-
12293350059 Ball BearingBall Bearing
-
13504152582 CirclipCirclip
-
14504152581 Sprocket, 49 TeethSprocket, 49 Teeth
-
15504152572 CirclipCirclip
-
16293300122 O-RingO-Ring
-
17504152619 Magnetic CapMagnetic Cap
-
18504152629 Drive Chain, 104 LinksDrive Chain, 104 Links
-
19232006414 Hex. Nut M10 X 1.5Hex. Nut M10 X 1.5
-
20504152602 Adjustment ScrewAdjustment Screw
-
21504152854 Magnetic Plug 1/8 - 27 NPTFMagnetic Plug 1/8 - 27 NPTF
-
22293200128 Seal RingSeal Ring
-
23504153429 Tensioner chainTensioner chain
-
24504152739 Slider ChainSlider Chain
-
25504152841 Tensioner AxleTensioner Axle
-
26504152282 CirclipCirclip
-
27504153410 Chaincase Cover Ass'yChaincase Cover Ass'y
-
29293300188 O-ringO-ring
-
30210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
31504152860 CapCap
-
32414580700 Male ConnectorMale Connector
-
33415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
34293300122 O-RingO-Ring
-
35504152619 Magnetic CapMagnetic Cap
-
36504152572 CirclipCirclip
-
37504153418 Bearing Housing Ass'yBearing Housing Ass'y
-
38233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
39504153577 Driveaxle Assy, Machined. Includes 39 to 42Driveaxle Assy, Machined. Includes 39 to 42
-
40504153085 Drive Axle Ass'yDrive Axle Ass'y
-
41504153426 Retaining RingRetaining Ring
-
42293350059 Ball BearingBall Bearing
-
43504153199 Track Ass'y 16'' X 154'' X 2.50''. Includes 43 to 44aTrack Ass'y 16'' X 154'' X 2.50''. Includes 43 to 44a
-
44415129528 Track GuideTrack Guide
-
44a415129529 CleatCleat
