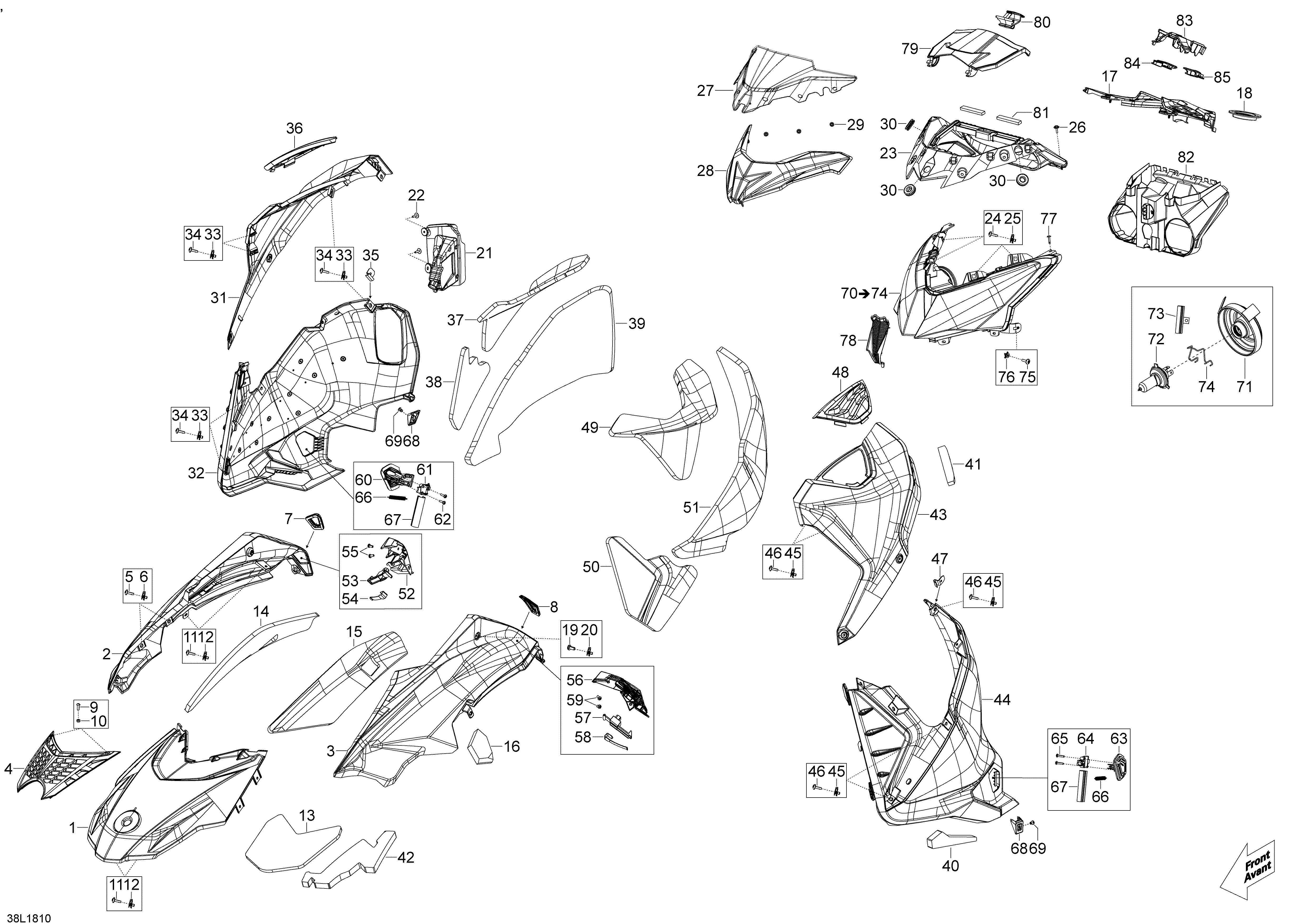

09- Hood BOONDOCKER - 600HO E-TEC для BRP Lynx Boondocker 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1517305246 Hood. Without AirradHood. Without Airrad
-
1517305361 Hood. AirradHood. Airrad
-
2517305418 RH HoodRH Hood
-
3517305419 LH HoodLH Hood
-
4517305362 Hood Grill. AirradHood Grill. Airrad
-
5250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
6250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
7517305344 RH Rubber ButtonRH Rubber Button
-
8517305345 LH Rubber ButtonLH Rubber Button
-
9235551454 Screw-Torx Button Head M5 X 14. AirradScrew-Torx Button Head M5 X 14. Airrad
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13517305480 Foam. Without AirradFoam. Without Airrad
-
14517305481 FoamFoam
-
15517305482 FoamFoam
-
16517305824 FoamFoam
-
17517305205 Console RearConsole Rear
-
18517304518 Console NutConsole Nut
-
19250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
20250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
21517305060 Deep Black RH ConsoleDeep Black RH Console
-
22250000725 Screw M4 X 16Screw M4 X 16
-
23517305512 Deep Black Indicator SupportDeep Black Indicator Support
-
24250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
25250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
26250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
27517304931 Windshield 135mmWindshield 135mm
-
28517305307 SupportSupport
-
29732610072 Push NutPush Nut
-
30517303756 GrommetGrommet
-
31517306105 Side Panel Hub Cap RhSide Panel Hub Cap Rh
-
32517305249 Panel RHPanel RH
-
33250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
34250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
35517305515 Guide PlateGuide Plate
-
36517305251 GrillGrill
-
37517306358 FoamFoam
-
38517306359 FoamFoam
-
39517306360 FoamFoam
-
40517305813 FoamFoam
-
41517305814 FoamFoam
-
42517305815 FoamFoam
-
43517306107 Side Panel Hub Cap LhSide Panel Hub Cap Lh
-
44517305253 LH PanelLH Panel
-
45250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
46250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
47517305515 Guide PlateGuide Plate
-
48517305254 GrillGrill
-
49517305488 FoamFoam
-
50517305489 FoamFoam
-
51517305490 FoamFoam
-
52517305315 Lock Body Rh.Lock Body Rh.
-
53517306019 Lock ArmLock Arm
-
54517305317 Lock SpringLock Spring
-
55205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
56517305319 Lock Body Lh.Lock Body Lh.
-
57517306019 Lock ArmLock Arm
-
58517305317 Lock SpringLock Spring
-
59205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
60517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
61517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
62250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
63517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
64517305759 Lh Bottom Lock Fixing PartLh Bottom Lock Fixing Part
-
65250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
66517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
67517305452 Bottom Lock SleeveBottom Lock Sleeve
-
68517305323 Side Panel SupportSide Panel Support
-
69390909100 Avex RivetAvex Rivet
-
70517306180 Headlamp. Includes 70 to 74Headlamp. Includes 70 to 74
-
71219400070 CapCap
-
72515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
73219800282 Holder BracketHolder Bracket
-
74219800281 SpringSpring
-
75250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
76250100035 Jack Nut M5Jack Nut M5
-
77250000725 Screw M4 X 16Screw M4 X 16
-
78517305350 CapCap
-
79517304912 Upper Storage Access CoverUpper Storage Access Cover
-
80517304917 Cover LatchCover Latch
-
81517305157 Seal JointSeal Joint
-
82517305095 TrunkTrunk
-
83517304970 Console SupportConsole Support
-
84517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
85517305148 Support Console CapSupport Console Cap
