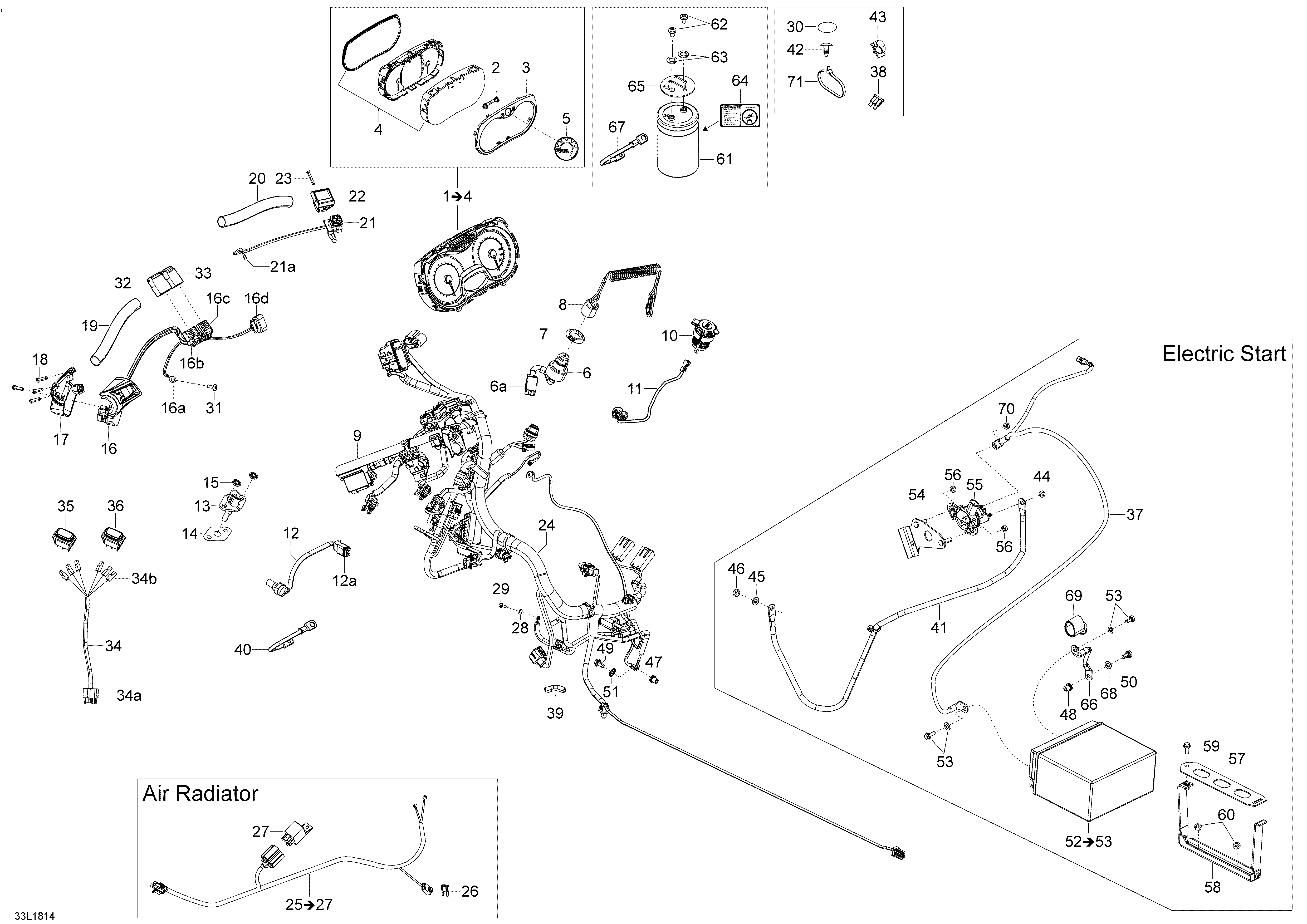

10- Electrical System для BRP Lynx Boondocker 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1515177910 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515178225 DESS SwitchDESS Switch
-
6a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
6a515175232 Male TerminalMale Terminal
-
7278002963 Safety NutSafety Nut
-
8515178044 DESS CapDESS Cap
-
9515177134 Connector PlateConnector Plate
-
10710001248 Outlet DCOutlet DC
-
11515177400 12 Volts Outlet Harness12 Volts Outlet Harness
-
12515177813 Temperature SensorTemperature Sensor
-
12a515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
12a278000632 Female TerminalFemale Terminal
-
12a278001661 Female TerminalFemale Terminal
-
12a293000052 Sealing CapSealing Cap
-
12a515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
13515176366 Air Temperature SensorAir Temperature Sensor
-
14508000769 SealSeal
-
15389804300 Push NutPush Nut
-
16515178305 LH Switch HousingLH Switch Housing
-
16a515175504 Ring TerminalRing Terminal
-
16b515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
16b515175231 Female TerminalFemale Terminal
-
16c515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
16c515175231 Female TerminalFemale Terminal
-
16d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
17515177149 LH Switch Housing PlateLH Switch Housing Plate
-
18250000671 Torx ScrewTorx Screw
-
19415129879 Protector TubeProtector Tube
-
20415129879 Protector TubeProtector Tube
-
21515177362 Kill SwitchKill Switch
-
21a515175232 Male TerminalMale Terminal
-
22515177310 Kill Switch SupportKill Switch Support
-
23250000263 Torx Screw #8-18Torx Screw #8-18
-
24515177984 Main Harness. Model-600 E-TECMain Harness. Model-600 E-TEC
-
24515177985 Main Harness. Model-800 E-TECMain Harness. Model-800 E-TEC
-
25515177006 Wiring Harness. Includes 25 To 27, Model-Air RadiatorWiring Harness. Includes 25 To 27, Model-Air Radiator
-
26278001197 Fuse, 10 AmperesFuse, 10 Amperes
-
28234141601 Lock Washer 4 mmLock Washer 4 mm
-
29250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
30518325560 Adhesive PatchAdhesive Patch
-
31250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
32515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
32515175232 Male TerminalMale Terminal
-
33515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
33515175232 Male TerminalMale Terminal
-
34515177495 Warmer HarnessWarmer Harness
-
34a710001928 HousingHousing
-
34b710002398 Female TerminalFemale Terminal
-
34b710002399 Female TerminalFemale Terminal
-
35515177497 Handwarmer Rocker SwitchHandwarmer Rocker Switch
-
36515177498 Thumb Warmer Rocker SwitchThumb Warmer Rocker Switch
-
37515177496 Battery Cable With Charging. Model-Electric StartBattery Cable With Charging. Model-Electric Start
-
38278001443 Fuse, 25 Amperes. Model-Electric StartFuse, 25 Amperes. Model-Electric Start
-
39520001525 TrimTrim
-
40515177289 Ground WireGround Wire
-
41515177208 Battery/Starter Wire. Model-Electric StartBattery/Starter Wire. Model-Electric Start
-
42414644300 DartDart
-
43515177066 Clip. Model-Electric StartClip. Model-Electric Start
-
44232561414 Elastic Stop Nut M6. Model-Electric StartElastic Stop Nut M6. Model-Electric Start
-
45234061410 Flat Washer 6 mm. Model-Electric StartFlat Washer 6 mm. Model-Electric Start
-
46232561414 Elastic Stop Nut M6. Model-Electric StartElastic Stop Nut M6. Model-Electric Start
-
47233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
48293450275 Insert. Model-Electric StartInsert. Model-Electric Start
-
49207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
50207662044 Hex. Flanged Screw M6 X 20. Model-Electric StartHex. Flanged Screw M6 X 20. Model-Electric Start
-
51250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
52410301203 Battery Ass'y, 18 Amperes. Includes 52 To 53, Model-Electric Start 600 E-TECBattery Ass'y, 18 Amperes. Includes 52 To 53, Model-Electric Start 600 E-TEC
-
52415129898 Lead Battery 18 Amperes. Includes 52 To 53, Model-Electric Start 800 E-TECLead Battery 18 Amperes. Includes 52 To 53, Model-Electric Start 800 E-TEC
-
53250000282 Battery Bolt Kit. Model-Electric StartBattery Bolt Kit. Model-Electric Start
-
54515177558 Relay Support. Model-Electric StartRelay Support. Model-Electric Start
-
55278003012 Starter Relay. Model-Electric StartStarter Relay. Model-Electric Start
-
56233261416 Elastic Flanged Nut M6. Model-Electric StartElastic Flanged Nut M6. Model-Electric Start
-
57518327281 Battery Strap. Model-Electric StartBattery Strap. Model-Electric Start
-
58518327282 Battery Strap. Model-Electric StartBattery Strap. Model-Electric Start
-
59207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Model-Electric StartHex. Flanged Screw M6 X 16, Scotch Grip. Model-Electric Start
-
60233261416 Elastic Flanged Nut M6. Model-Electric StartElastic Flanged Nut M6. Model-Electric Start
-
61515177272 CapacitorCapacitor
-
62250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
63250200026 Lock washerLock washer
-
64516006206 Capacitor DecalCapacitor Decal
-
65515177193 CapCap
-
66515176780 Ground Wire. Model-Electric StartGround Wire. Model-Electric Start
-
67515178052 Ground Wire. Model-600 E-TECGround Wire. Model-600 E-TEC
-
68234061410 Flat Washer 6 mm. Model-Electric StartFlat Washer 6 mm. Model-Electric Start
-
69570151000 Protection Cap. Model-Electric StartProtection Cap. Model-Electric Start
-
70232561414 Elastic Stop Nut M6. Model-Electric StartElastic Stop Nut M6. Model-Electric Start
-
71414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
71293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
71293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
71605627000 Tie-RapTie-Rap
-
72515177758 Module. 800R E-TECModule. 800R E-TEC
