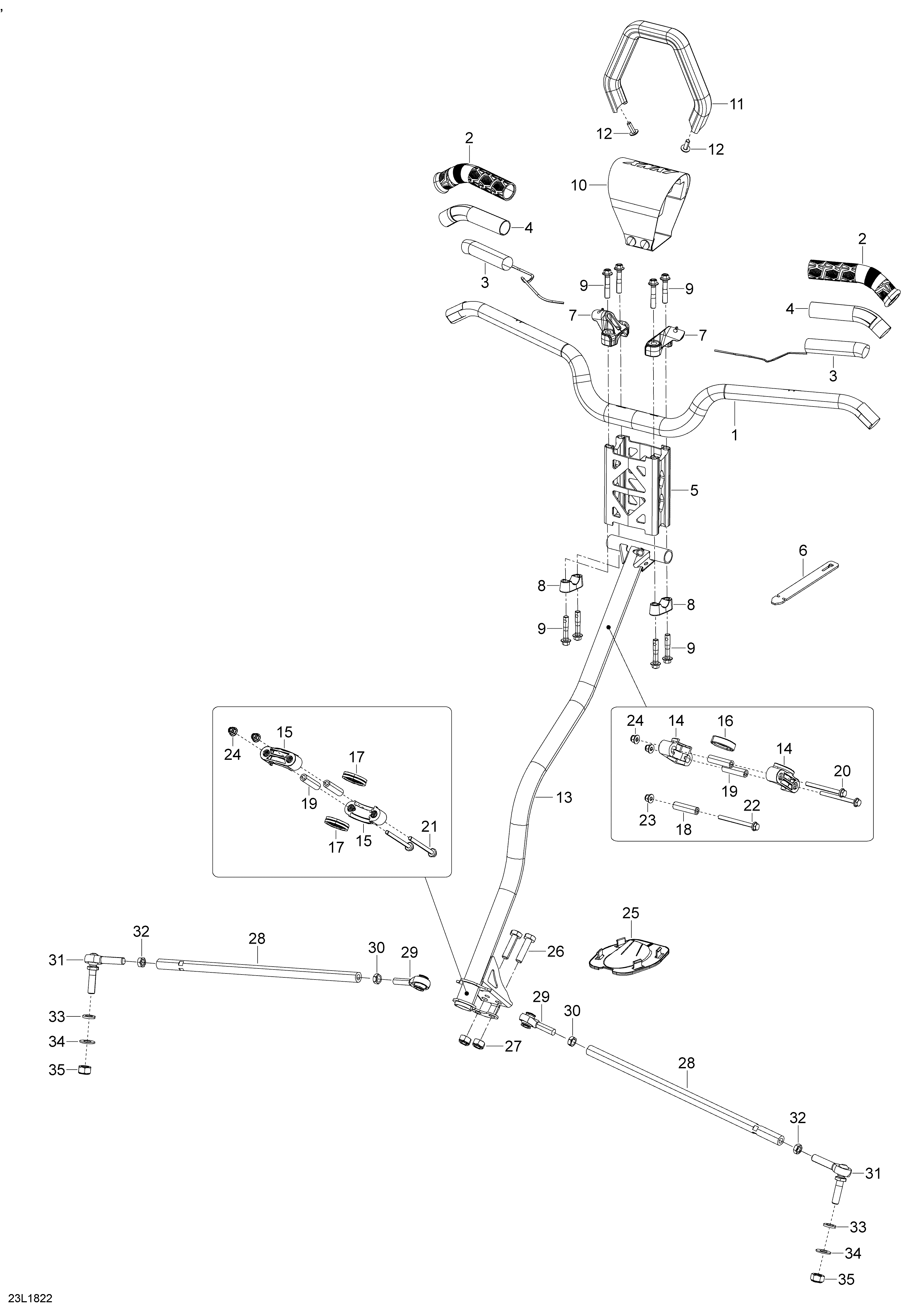

07- Steering Boondocker - 600HO E-TEC для BRP Lynx Boondocker 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1506152762 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film, 25WHeated Film, 25W
-
5506152570 Black Handlebar ExtensionBlack Handlebar Extension
-
6293850117 Rubber StrapRubber Strap
-
7506152942 LH SupportLH Support
-
7506152943 RH SupportRH Support
-
8506152751 Steering SupportSteering Support
-
9250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
10506152649 Steering PadSteering Pad
-
11506152460 Moulding StrapMoulding Strap
-
12250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
13506152962 Steering ColumnSteering Column
-
14506152508 Upper Half-HousingUpper Half-Housing
-
15506152217 Lower Half-HousingLower Half-Housing
-
16506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
17506152518 Lower Vibration RingLower Vibration Ring
-
18506152297 Housing BushingHousing Bushing
-
19506152297 Housing BushingHousing Bushing
-
20207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
21207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
22207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
23233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
24233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25506152163 PlatePlate
-
26207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28506152496 Tie-RodTie-Rod
-
29506152081 LH Thread Ball JointLH Thread Ball Joint
-
30250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
31506152684 RH Thread Ball JointRH Thread Ball Joint
-
32732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
33503192496 WasherWasher
-
34506152582 WasherWasher
-
35233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
