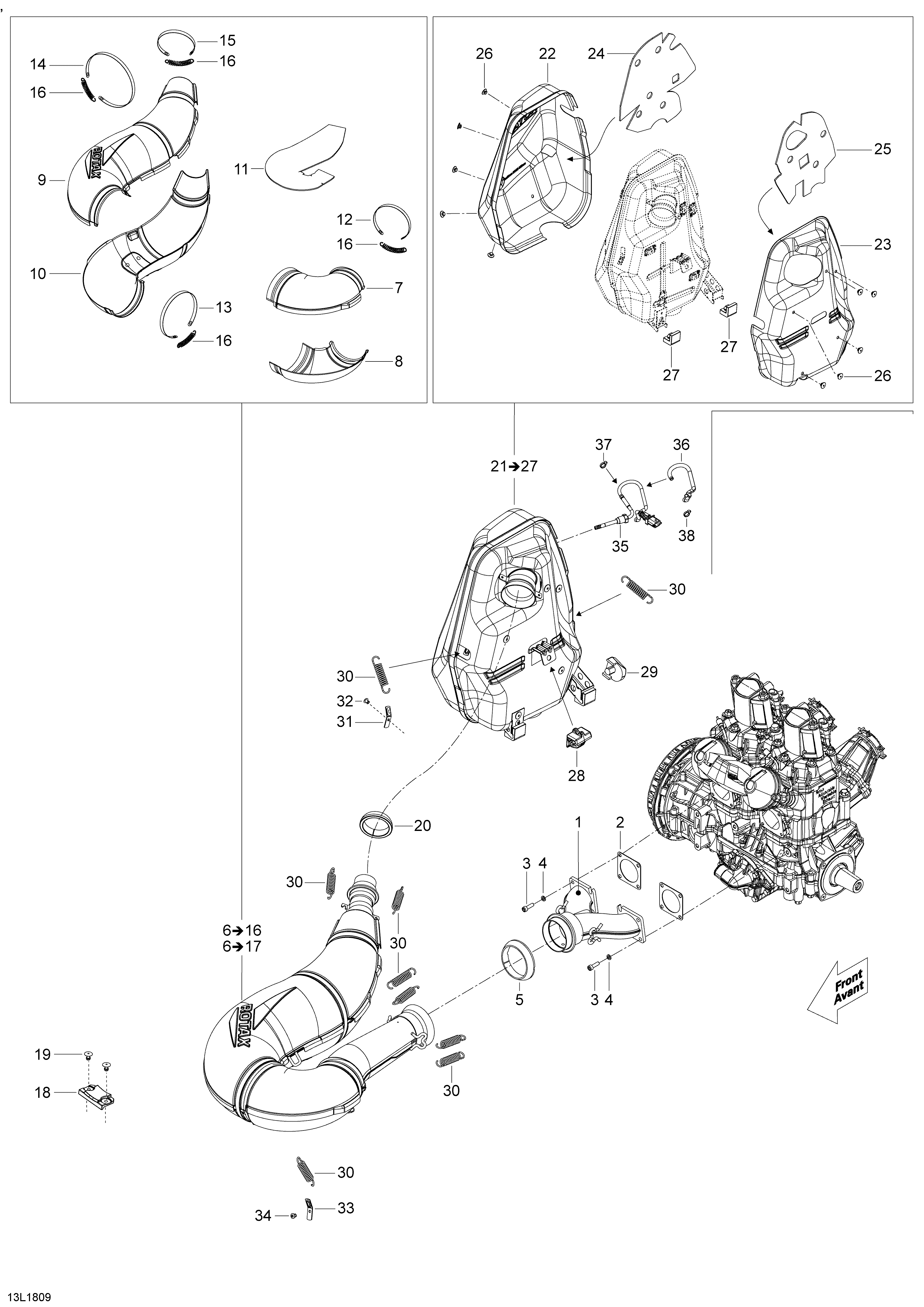

01- Exhaust XU - 600HO ETEC - AA для BRP Lynx Commander 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1420673421 Exhaust ManifoldExhaust Manifold
-
2420850552 GasketGasket
-
3514054626 Socket Head Screw M6 X 22, Scotch GripSocket Head Screw M6 X 22, Scotch Grip
-
4605620001 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514055027 Tuned Pipe Ass'y. Includes 6 to 16Tuned Pipe Ass'y. Includes 6 to 16
-
7514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
8514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
9514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054408 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
16514053643 SpringSpring
-
18514054275 BumperBumper
-
19293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
20514054174 Exhaust GasketExhaust Gasket
-
21514055025 Muffler Ass'y. Includes 21 to 27Muffler Ass'y. Includes 21 to 27
-
22514054985 RH DeflectorRH Deflector
-
23514055029 LH DeflectorLH Deflector
-
24514054711 RH Insulating WoolRH Insulating Wool
-
25514054299 LH Insulating WoolLH Insulating Wool
-
26390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
27514054529 Lower StopperLower Stopper
-
28514054606 Upper StopperUpper Stopper
-
29514055070 Rubber BumberRubber Bumber
-
30415107100 SpringSpring
-
31514054974 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33514054975 Spring BracketSpring Bracket
-
34293150147 Hemlock RivetHemlock Rivet
-
35514054870 Temperature SensorTemperature Sensor
-
36515175442 Tubing 6 mmTubing 6 mm
-
37293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
