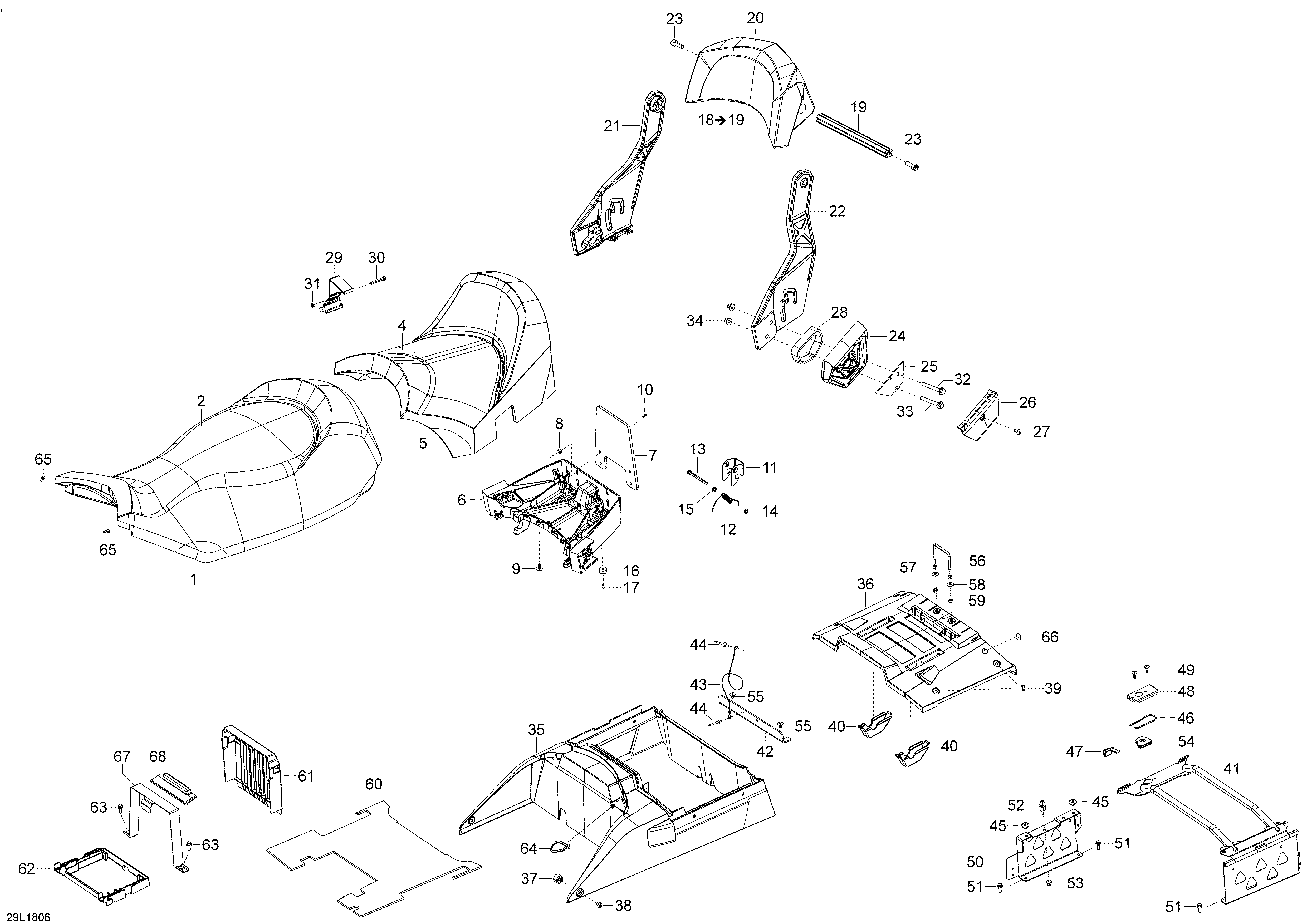

09- Seat COMMANDER - 600HO E-TEC - LTD для BRP Lynx Commander 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1510006315 Front Seat FoamFront Seat Foam
-
2510006371 Front CoverFront Cover
-
3515178222 Heated FilmHeated Film
-
4510006395 Rear Seat CoverRear Seat Cover
-
5510006094 Rear Seat FoamRear Seat Foam
-
6510004816 Seat BaseSeat Base
-
7510005330 Backrest PlateBackrest Plate
-
8234062410 Flat Washer 6 mmFlat Washer 6 mm
-
9414644300 DartDart
-
10293150067 RivetRivet
-
11708000144 Latch, BlackLatch, Black
-
12708000369 SpringSpring
-
13207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
14732610072 Push NutPush Nut
-
15234061410 Flat Washer 6 mmFlat Washer 6 mm
-
16510006005 Stopper RubberStopper Rubber
-
17293150015 Pop Rivet 1/8”Pop Rivet 1/8”
-
18510006205 Backrest Foam. Includes 18 To 19Backrest Foam. Includes 18 To 19
-
20510006398 Backrest CoverBackrest Cover
-
21510005420 R.H. ArmR.H. Arm
-
22510005419 L.H. ArmL.H. Arm
-
23250000553 Forming Screw M10 x 25Forming Screw M10 x 25
-
24510005409 HandleHandle
-
25510005936 Support PlateSupport Plate
-
26510005444 Handle CoverHandle Cover
-
27250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
28510005613 AdapterAdapter
-
29510005139 Security LockSecurity Lock
-
30205065044 Socket Head Screw M6 X 50Socket Head Screw M6 X 50
-
31232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
32207689044 Hex. Flanged Scew M8 X 90Hex. Flanged Scew M8 X 90
-
33207688544 Hex. Flanged ScewHex. Flanged Scew
-
34233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
35510006243 Storage BoxStorage Box
-
36510006244 Storage Box CoverStorage Box Cover
-
37510005147 BushingBushing
-
38250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
39293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40510004999 CoverCover
-
41510005714 Lock tubeLock tube
-
42510005156 Cable Support PlateCable Support Plate
-
43293750070 Seat Retainer CableSeat Retainer Cable
-
44293150163 Rivet HucklokRivet Hucklok
-
45605452114 PlugPlug
-
46269700017 Latch SpringLatch Spring
-
47510005072 PullerPuller
-
48510005698 Lock Pin CoverLock Pin Cover
-
49250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
50510005845 Locking PlateLocking Plate
-
51207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
52605452035 Lock PinLock Pin
-
53233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
54510005044 Lock Pin GuideLock Pin Guide
-
55293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
56510004876 Fastener PinFastener Pin
-
57250000135 Hex. Nut M6Hex. Nut M6
-
5820117 WasherWasher
-
59232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
60510005043 FoamFoam
-
61510005079 Battery CoverBattery Cover
-
62515176804 Battery SupportBattery Support
-
63207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
64605627000 Tie-RapTie-Rap
-
65250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
66572051500 CapCap
-
67510005143 Battery StrapBattery Strap
-
68510005146 Strap CoverStrap Cover
