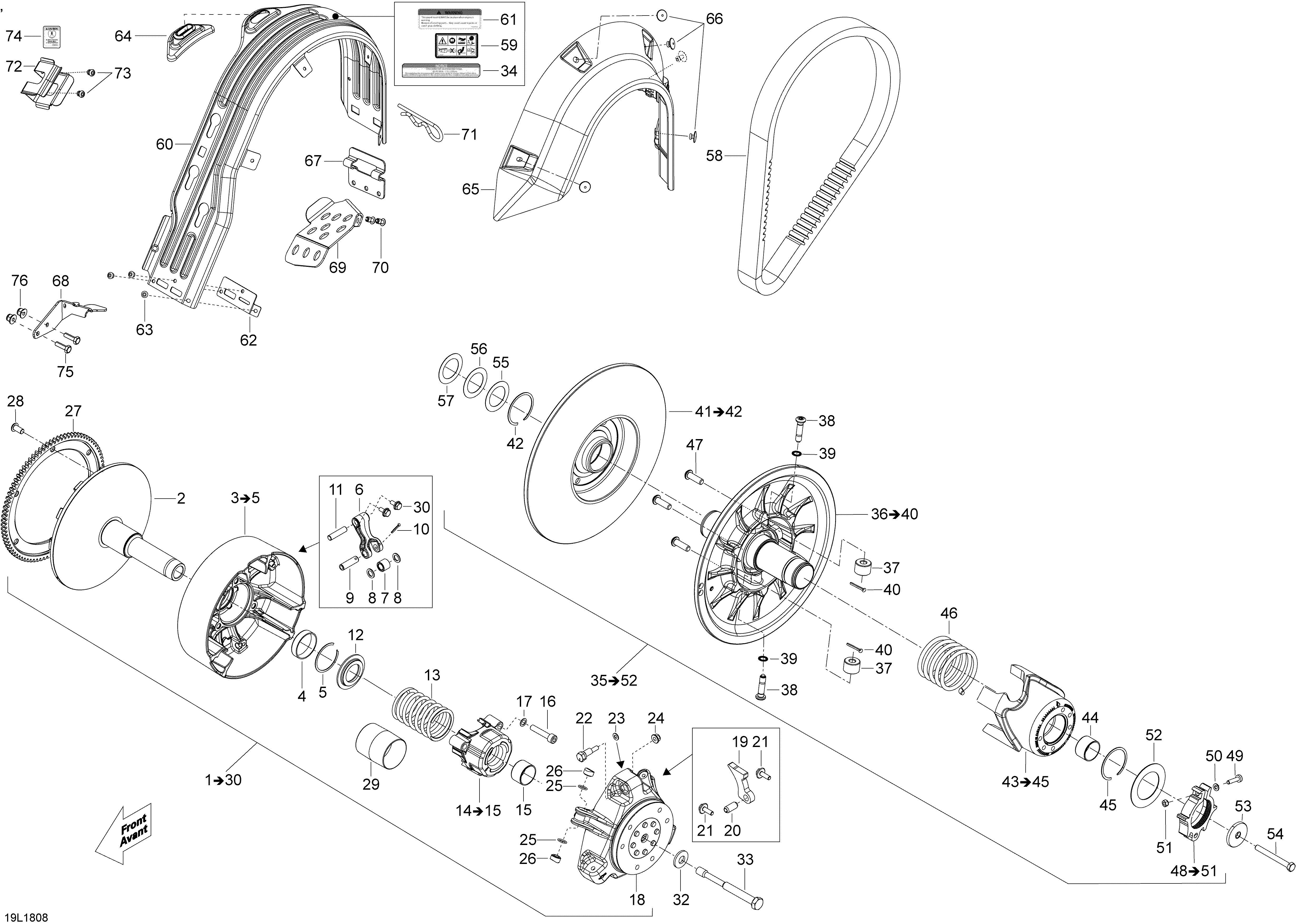

05- Pulley Commander - 600 HO E-TEC для BRP Lynx Commander 600 HO E-TEC - 2018
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 5Sliding Flange Ass'y. Includes 3 to 5
-
4417222758 BushingBushing
-
5293370037 CirclipCirclip
-
6417222671 LeverLever
-
7417222947 RollerRoller
-
8417004302 Stopper WasherStopper Washer
-
9417222594 PinPin
-
10250400060 Cotter PinCotter Pin
-
11417223164 Lever AxleLever Axle
-
11.1417222312 Spring SeatSpring Seat
-
12414993000 Tra SpringTra Spring
-
13417007500 Spring Cover Ass'y. Includes 13 to 15Spring Cover Ass'y. Includes 13 to 15
-
15417009204 BushingBushing
-
14205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
16250200009 Lock Washer 8 mmLock Washer 8 mm
-
17417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
18417222444 Ramp 600Ramp 600
-
19250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
20250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
21417223501 Calibration ScrewCalibration Screw
-
22417005600 WasherWasher
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24732401030 O-RingO-Ring
-
24.1417223271 Slider ShoeSlider Shoe
-
25417223738 Ring GearRing Gear
-
26250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
27417009205 GuardGuard
-
28250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
32250200144 Conical Spring Washer M14Conical Spring Washer M14
-
33417120000 Drive Pulley BoltDrive Pulley Bolt
-
34516005503 Decal, EnglishDecal, English
-
36417127466 Fixed Flange Ass'yFixed Flange Ass'y
-
41417127366 Slider Flange Ass'ySlider Flange Ass'y
-
43417127411 Cam Ass'yCam Ass'y
-
46417127243 Spring, WhiteSpring, White
-
48415129604 Calibration Ass'yCalibration Ass'y
-
49205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
50234051410 Flat Washer M5Flat Washer M5
-
51232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
52417127155 WasherWasher
-
53517302322 Strength WasherStrength Washer
-
54207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
55417300252 SpacerSpacer
-
56417300265 SpacerSpacer
-
57504112000 ShimShim
-
58417300383 Drive BeltDrive Belt
-
59516003919 Warning DecalWarning Decal
-
60417300357 Belt GuardBelt Guard
-
61516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
62417300380 ReinforcementReinforcement
-
63390909200 Avex RivetAvex Rivet
-
64417300381 GuideGuide
-
65417300356 Side ProtectorSide Protector
-
66293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
67417300363 Belt Guard BracketBelt Guard Bracket
-
72293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
68417300364 Belt Guard BracketBelt Guard Bracket
-
69518325626 Brake Hose CoverBrake Hose Cover
-
70293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
71114045200 Hair PinHair Pin
-
73293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
