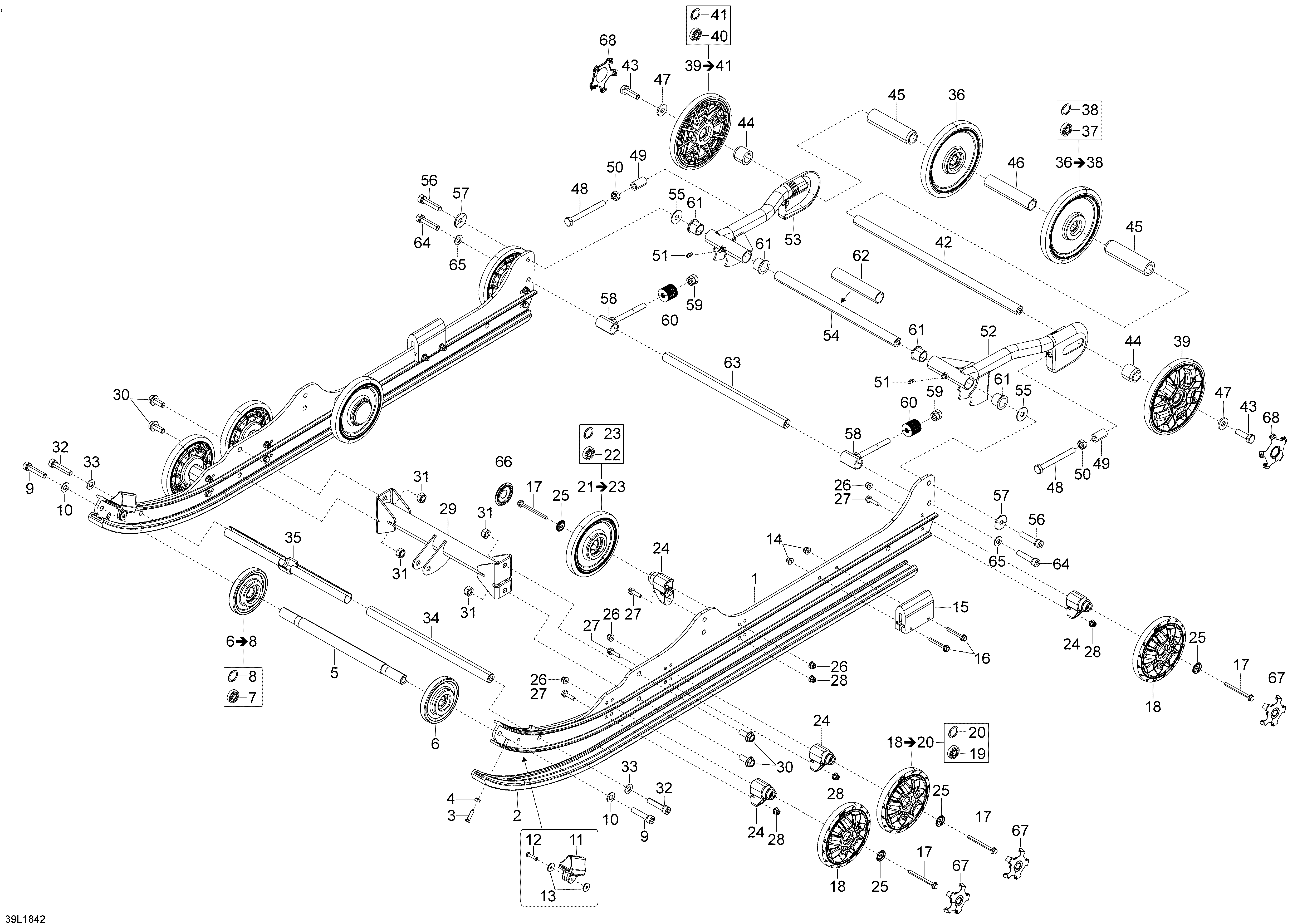

08- Rear Suspension Commander для BRP Lynx Commander 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1503193799 Black RunnerBlack Runner
-
2503192843 Black, Slider ShoeBlack, Slider Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192889 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Black Wheel Ass'y, 100 mm. Includes 6 To 8Black Wheel Ass'y, 100 mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket ScrewSocket Screw
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
13503191273 WasherWasher
-
14233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15570023100 Rubber StopperRubber Stopper
-
16207664554 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
17207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
18503193734 Wheel-141mm. Includes 18 To 20Wheel-141mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
21503191316 Black - Wheel Ass'y 141 mm. Includes 21 To 23Black - Wheel Ass'y 141 mm. Includes 21 To 23
-
22503190396 Ball BearingBall Bearing
-
23415129371 Retaining RingRetaining Ring
-
24503193894 Casted SupportCasted Support
-
25503191820 Wheel Cup M6Wheel Cup M6
-
26233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
28233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29503193182 Lower Support, Center ShockLower Support, Center Shock
-
30207602587 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32205504544 Socket ScrewSocket Screw
-
33234001410 Flat Washer 10 mmFlat Washer 10 mm
-
34503192927 Shaft PassivatedShaft Passivated
-
35605355263 Retainer StrapRetainer Strap
-
36503192140 Black Wheel Ass'y, 165 mm. Includes 36 To 38Black Wheel Ass'y, 165 mm. Includes 36 To 38
-
37503190396 Ball BearingBall Bearing
-
38415129371 Retaining RingRetaining Ring
-
39503193809 Wheel 165mm. Includes 39 To 41Wheel 165mm. Includes 39 To 41
-
40503190396 Ball BearingBall Bearing
-
41415129371 Retaining RingRetaining Ring
-
42503191408 Rear AxleRear Axle
-
43250000019 Hex. Screw With NylonHex. Screw With Nylon
-
44503192048 SpacerSpacer
-
45503192671 SpacerSpacer
-
46605448429 SleeveSleeve
-
47503190439 WasherWasher
-
48230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
49503192696 SpacerSpacer
-
50232006414 Hex. Nut M10Hex. Nut M10
-
51408200700 Grease FittingGrease Fitting
-
52503194586 LH Extension SwingLH Extension Swing
-
53503194589 RH Extension SwingRH Extension Swing
-
545347713 Lower Shaft, Front ArmLower Shaft, Front Arm
-
5520116 ShimShim
-
56205505087 Socket Screw M10 X 50Socket Screw M10 X 50
-
57512056700 Lock WasherLock Washer
-
58503192695 Adjustment ScrewAdjustment Screw
-
59232006414 Hex. Nut M10Hex. Nut M10
-
6025004 Cup SpringCup Spring
-
6131024 CushionCushion
-
62605448429 SleeveSleeve
-
63503192927 Shaft PassivatedShaft Passivated
-
64205505087 Socket Screw M10 X 50Socket Screw M10 X 50
-
65234001410 Flat Washer 10 mmFlat Washer 10 mm
-
66503192771 Black - Wheel CapBlack - Wheel Cap
-
67503193735 Black CapBlack Cap
-
68503193810 Black CapBlack Cap
