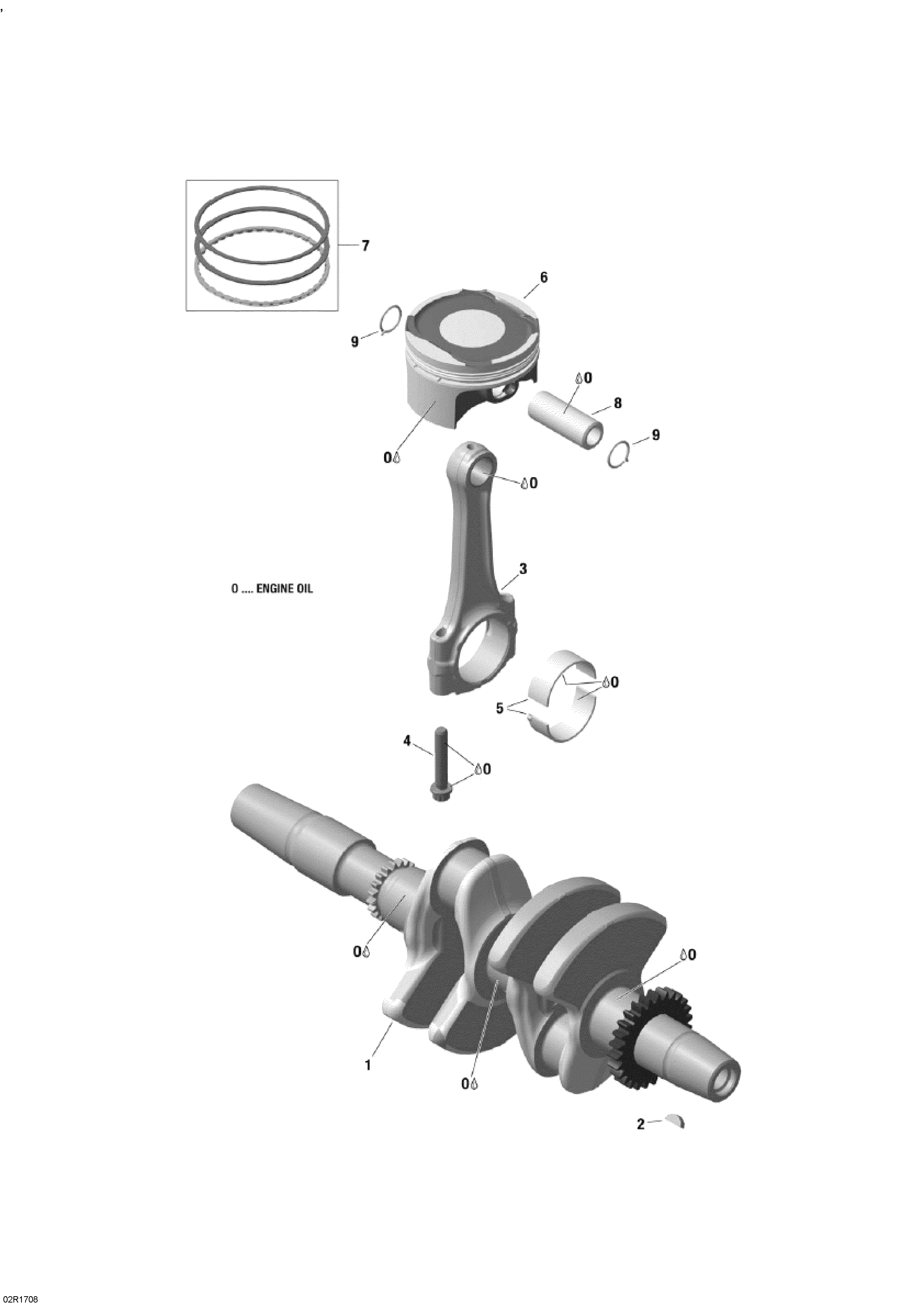

01- Crankshaft, Pistons And Balance Shaft - 600 ACE для BRP Lynx 002 - 49 Ranger 600 ACE - 2019
-
№АртикулНазвание
-
1420819765 Crankshaft Ass'y. Includes 1 To 2Crankshaft Ass'y. Includes 1 To 2
-
2420246570 Woodruff KeyWoodruff Key
-
3420917705 Connecting Rod With Cover Ass'y. Includes 3 To 4Connecting Rod With Cover Ass'y. Includes 3 To 4
-
4420641790 Connecting Rod Screw M7 x 1. Tightening Torque 12 Nm +/- 2%, +70? +/- 5?. +70°+/- 5° ROTATION ANGLEConnecting Rod Screw M7 x 1. Tightening Torque 12 Nm +/- 2%, +70? +/- 5?. +70°+/- 5° ROTATION ANGLE
-
5420933191 Plain BearingPlain Bearing
-
6420892821 Piston Ass'y. Includes 6 To 7Piston Ass'y. Includes 6 To 7
-
7420892824 Piston Ring SetPiston Ring Set
-
8420916510 Piston PinPiston Pin
-
9420845810 Monohook Circlip 17. Included In Gasket KitMonohook Circlip 17. Included In Gasket Kit
