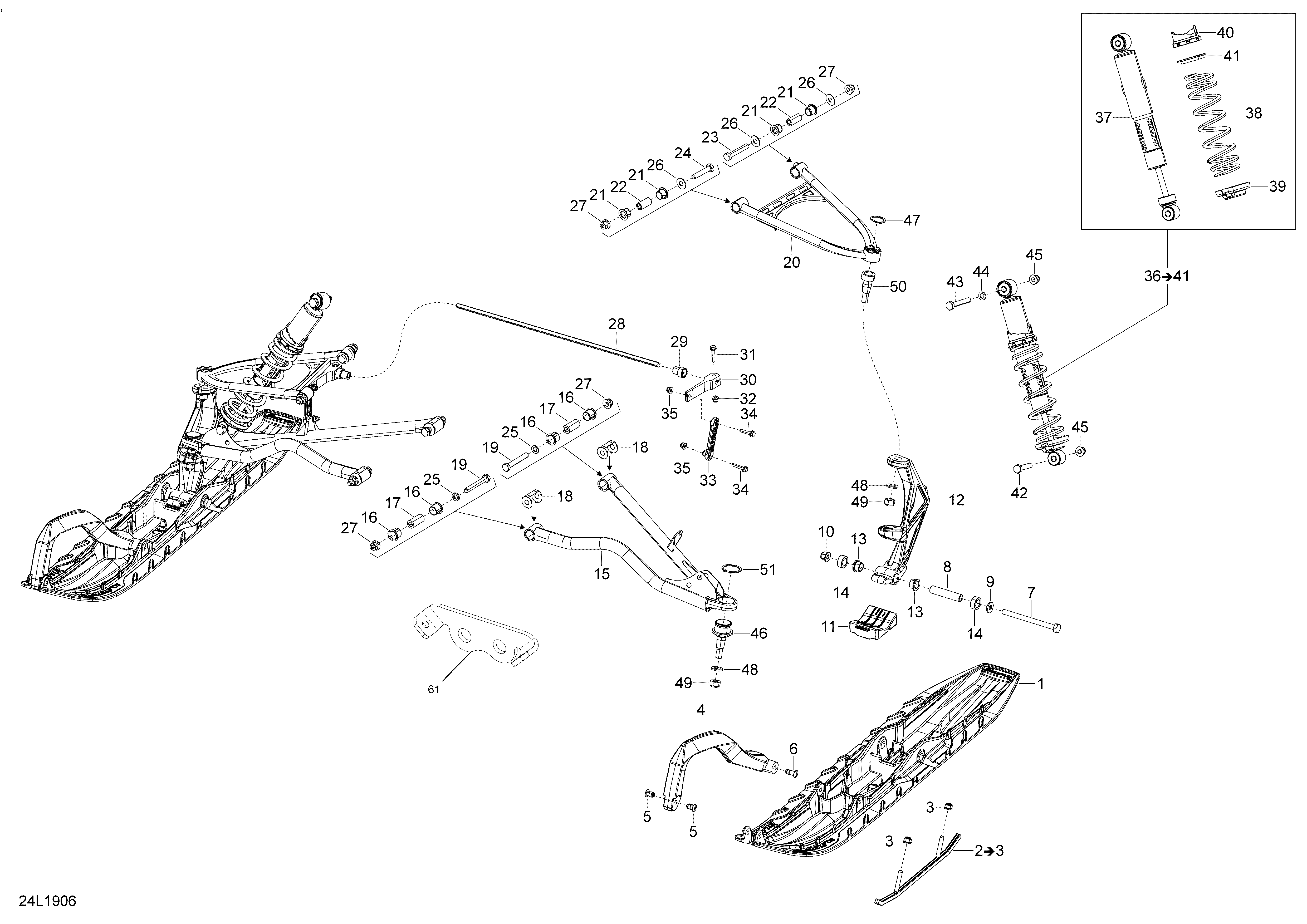

07- Front Suspension And Ski - 49 Ranger - 600 ACE для BRP Lynx 002 - 49 Ranger 600 ACE - 2019
-
№АртикулНазвание
-
1505073834 Black, Ski Blade DSBlack, Ski Blade DS
-
2860201044 Carbide Runner Kit (Square Runner)Carbide Runner Kit (Square Runner)
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4505073651 Orange, HandleOrange, Handle
-
5505071812 Retainer 17mm longRetainer 17mm long
-
6505072133 Retainer 23mm LongRetainer 23mm Long
-
7250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
8506133300 SpacerSpacer
-
9503192496 WasherWasher
-
10233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
11505072594 Ski StopperSki Stopper
-
12505073443 LH Ski LegLH Ski Leg
-
12505073444 RH Ski LegRH Ski Leg
-
13505072690 Leg BushingLeg Bushing
-
14505072807 SpacerSpacer
-
15505073925 RH Arm-lower. Package Touring KitRH Arm-lower. Package Touring Kit
-
15505073955 RH Arm-lower. Package StandardRH Arm-lower. Package Standard
-
15505073924 LH Arm-lower. Package Touring KitLH Arm-lower. Package Touring Kit
-
15505073954 LH Arm-lower. Package StandardLH Arm-lower. Package Standard
-
16505073330 BushingBushing
-
17505072209 SleeveSleeve
-
18505072634 Wear PlateWear Plate
-
19250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505073985 LH Arm-upper W Sway Bar. Package Touring KitLH Arm-upper W Sway Bar. Package Touring Kit
-
20505073987 LH Upper Arm W Sway Bar. Package StandardLH Upper Arm W Sway Bar. Package Standard
-
20505073986 RH Arm-upper W Sway Bar. Package Touring KitRH Arm-upper W Sway Bar. Package Touring Kit
-
20505073988 RH Upper Arm W Sway Bar. Package StandardRH Upper Arm W Sway Bar. Package Standard
-
21505073329 BushingBushing
-
22505072143 SleeveSleeve
-
23250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
24250000289 Screw Hex. M10 X 1.25 X 50Screw Hex. M10 X 1.25 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
28505072444 Stabilisator. Package Touring KitStabilisator. Package Touring Kit
-
28505072602 Stabilisator. Package StandardStabilisator. Package Standard
-
29505072064 Bushing. Package StandardBushing. Package Standard
-
29505072445 Bushing. Package Touring KitBushing. Package Touring Kit
-
30505074294 Stabilisator Lever. Package Touring KitStabilisator Lever. Package Touring Kit
-
30505074295 Stabilisator Lever 8mm Qd. Package StandardStabilisator Lever 8mm Qd. Package Standard
-
31207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
32233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
33505074123 Double Ball Joint LinkDouble Ball Joint Link
-
34207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
35233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
37505073342 Front Shock (EUR). Package Touring KitFront Shock (EUR). Package Touring Kit
-
37505073344 Front Shock. Package StandardFront Shock. Package Standard
-
38505072882 Full Moon Spring 300mm-16N/MM. Package Touring KitFull Moon Spring 300mm-16N/MM. Package Touring Kit
-
38503192286 Full Moon Spring 300mm-14 N/MM. Package StandardFull Moon Spring 300mm-14 N/MM. Package Standard
-
39706200881 Spring StopperSpring Stopper
-
40505073625 Adjustment CamAdjustment Cam
-
41503191872 Spring GuideSpring Guide
-
42207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
43207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
44503189564 WasherWasher
-
45233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
46505073636 Ball JointBall Joint
-
47293370070 CirclipCirclip
-
48234021410 Flat Washer 12 mmFlat Washer 12 mm
-
49250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
50505072913 Upper Ball JointUpper Ball Joint
-
51293370035 CirclipCirclip
-
60505072448 O-Ring. Not ShownO-Ring. Not Shown
-
61505073723 Wear PlateWear Plate
