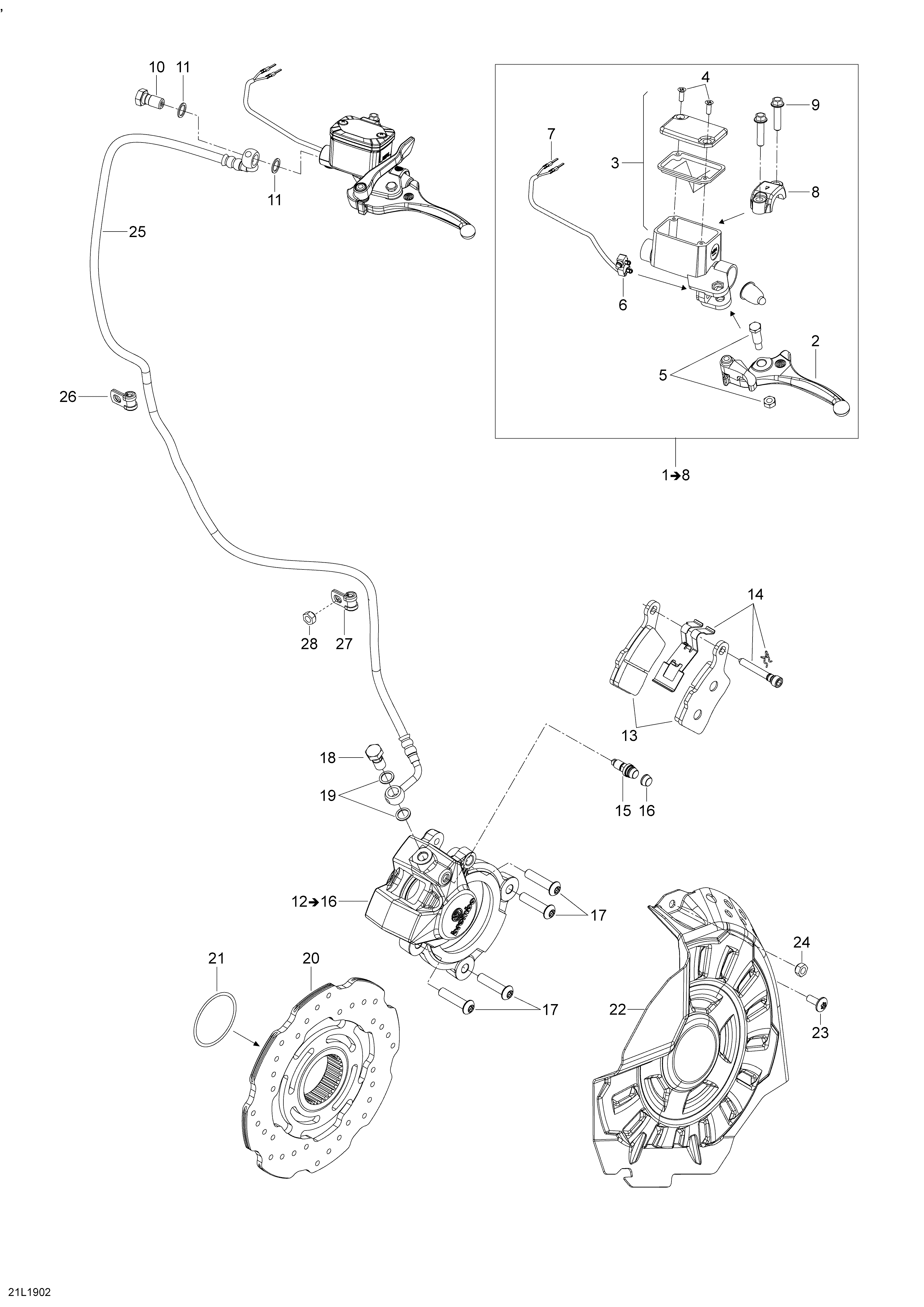

06- Brakes - 49 Ranger - 600 ACE для BRP Lynx 002 - 49 Ranger 600 ACE - 2019
-
№АртикулНазвание
-
1507032596 Master Cylinder Ass'y. Includes 10 to 10gMaster Cylinder Ass'y. Includes 10 to 10g
-
2507032476 LeverLever
-
60507032477 Clamp And Screw Kit. Not Shown. Includes toClamp And Screw Kit. Not Shown. Includes to
-
60250000447 Hex Flanged Screw M6 X 25. Not ShownHex Flanged Screw M6 X 25. Not Shown
-
3507032478 Master Cylinder Reservoir Ass'y. Includes toMaster Cylinder Reservoir Ass'y. Includes to
-
4415129356 Screw M4 X 20Screw M4 X 20
-
5415030000 Pin Ass'yPin Ass'y
-
6507032592 MicroswitchMicroswitch
-
8719000049 Clamps KitClamps Kit
-
9250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705601628 Copper WasherCopper Washer
-
12507032602 Brake Caliper Assembly. Includes 200 to 200cBrake Caliper Assembly. Includes 200 to 200c
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
15507032475 BleederBleeder
-
17250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
18507032551 Banjo BoltBanjo Bolt
-
19705601628 Copper WasherCopper Washer
-
20507032487 DiskDisk
-
21293300209 O-ringO-ring
-
22507032546 Disk Protector BlackDisk Protector Black
-
23250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
24233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
25507032535 HoseHose
-
26414108400 Open ClampOpen Clamp
-
27503193393 ClampClamp
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
