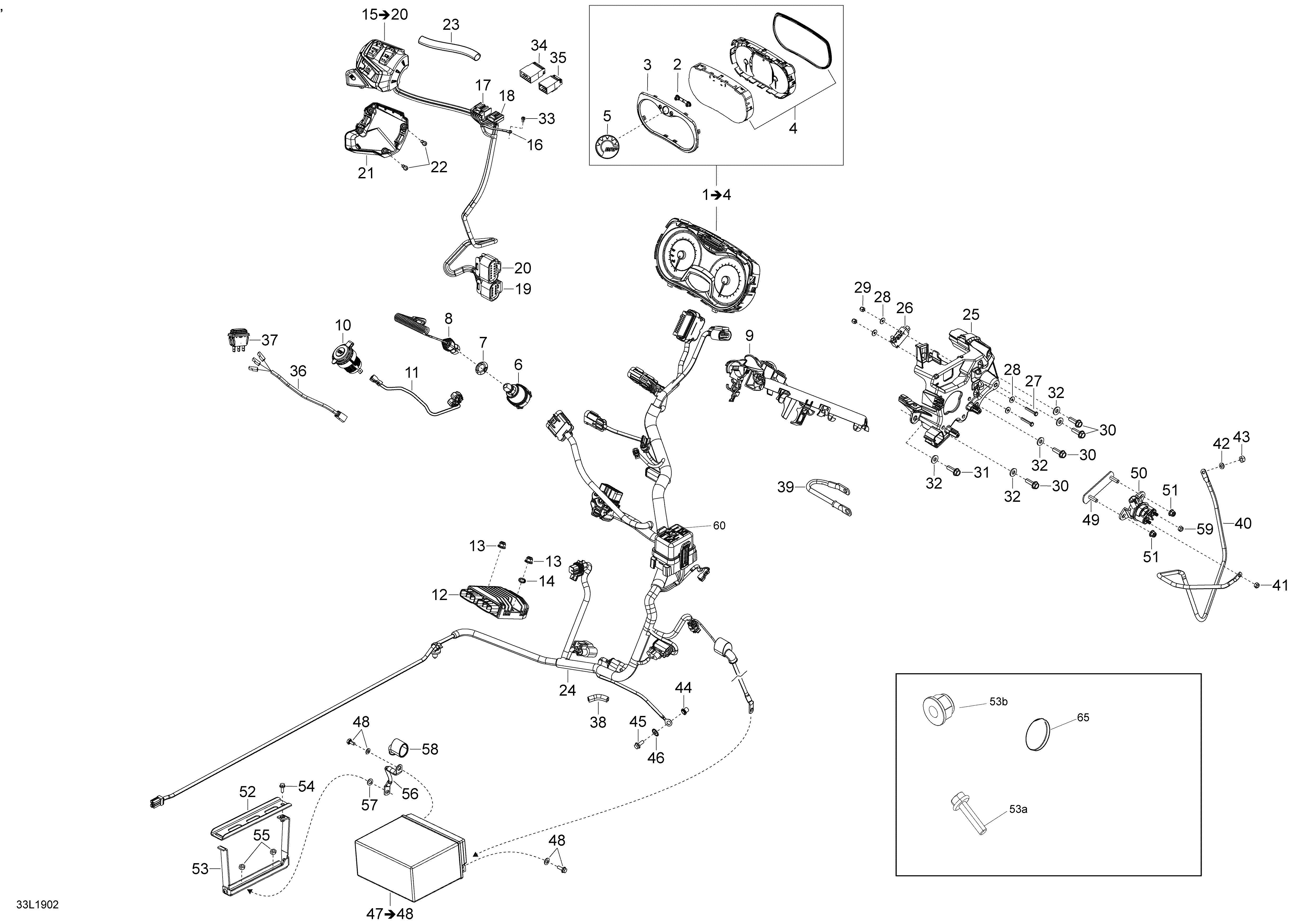

10- Electrical 49 Ranger 600 ACE для BRP Lynx 002 - 49 Ranger 600 ACE - 2019

№

Артикул

Название
1

515177911 Indicator. Includes 1 to 4

Indicator. Includes 1 to 4

44 280 ₽
2

415129355 Speedometer Button

Speedometer Button

5 010 ₽
3

415129370 Gauge Ring

Gauge Ring

3 890 ₽
4

415129349 Lens

Lens

12 080 ₽
5

516006224 BRP Logo, 20 mm

BRP Logo, 20 mm

1 970 ₽
6

515178225 DESS Switch, RFID

DESS Switch, RFID

34 020 ₽
7

278002963 Safety Nut (DESS Switch)

Safety Nut (DESS Switch)

1 160 ₽
8

515178288 Key

Key

25 480 ₽
9

515177134 Connector Plate

Connector Plate

1 200 ₽
10

710001248 Outlet DC

Outlet DC

6 130 ₽
11

515177400 12 Volts Outlet Harness

12 Volts Outlet Harness

2 680 ₽
12

515177325 Voltage Regulator

Voltage Regulator

16 420 ₽
13

233261414 Hex. Flanged Elastic Nut M6 x 1.0

Hex. Flanged Elastic Nut M6 x 1.0

490 ₽
14

234461608 External Serrated Lock Washer 6 mm

External Serrated Lock Washer 6 mm

390 ₽
15

515178198 LH Housing

LH Housing

40 480 ₽
21

515177147 Housing Plate

Housing Plate

5 880 ₽
22

250000671 Torx Screw

Torx Screw

360 ₽
23

415129879 Protector Tube

Protector Tube

1 120 ₽
24

515178117 Wiring Harness

Wiring Harness

48 190 ₽
25

515177347 Plate

Plate

4 660 ₽
26

515177460 Switch Ass'y

Switch Ass'y

4 180 ₽
27

207132044 Hex Screw M3 X 20

Hex Screw M3 X 20

200 ₽
28

234032600 Flat Washer M3, Stainless

Flat Washer M3, Stainless

50 ₽
29

232531423 Elastic Stop Nut M3

Elastic Stop Nut M3

190 ₽
30

210262040 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

200 ₽
31

210262550 Hex. Flanged Forming Screw M6 X 25

Hex. Flanged Forming Screw M6 X 25

180 ₽
32

250200039 Flat Washer

Flat Washer

70 ₽
33

250000690 Pan Screw Forming, 7500C

Pan Screw Forming, 7500C

200 ₽
34

515175662 Male Terminal Housing, 6 Circuits

Male Terminal Housing, 6 Circuits

3 090 ₽
35

515175846 Male Terminal Housing, 4 Circuits

Male Terminal Housing, 4 Circuits

730 ₽
36

515177568 ECO Harness

ECO Harness

33 990 ₽
37

515177569 ECO Rocker Switch

ECO Rocker Switch

9 300 ₽
38

520001525 Trim

Trim

0 ₽
39

515177014 Ground Wire

Ground Wire

1 280 ₽
40

515177427 Battery Wire

Battery Wire

2 510 ₽
41

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6

50 ₽
42

234061410 Flat Washer 6 mm

Flat Washer 6 mm

690 ₽
43

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6

50 ₽
44

233261414 Hex. Flanged Elastic Nut M6 x 1.0

Hex. Flanged Elastic Nut M6 x 1.0

490 ₽
45

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
46

250200041 Lock Washer Serrated M6

Lock Washer Serrated M6

390 ₽
47

415129898 Lead Battery 18 Amperes. Includes 47 to 48

Lead Battery 18 Amperes. Includes 47 to 48

61 850 ₽
48

250000282 Battery Bolt Kit

Battery Bolt Kit

2 650 ₽
49

515177740 Relay Support. Includes 49 to 49a

Relay Support. Includes 49 to 49a

580 ₽
49a

250300027 Clinch Stud M6 X 20

Clinch Stud M6 X 20

200 ₽
50

278003012 Starter Relay

Starter Relay

36 190 ₽
51

233261414 Hex. Flanged Elastic Nut M6 x 1.0

Hex. Flanged Elastic Nut M6 x 1.0

490 ₽
52

518327281 Battery Strap

Battery Strap

280 ₽
53

518327282 Battery Strap. Includes 53 to 53b

Battery Strap. Includes 53 to 53b

2 260 ₽
53a

605636003 Clinch Nut M6 Hexsert

Clinch Nut M6 Hexsert

1 540 ₽
53b

390909100 Avex Rivet

Avex Rivet

120 ₽
54

207561644 Hex.Fla. Screw M6 X 16, Scotch Grip

Hex.Fla. Screw M6 X 16, Scotch Grip

670 ₽
55

233261416 Elastic Flanged Nut M6 X 1.0

Elastic Flanged Nut M6 X 1.0

740 ₽
56

515176780 Ground Wire

Ground Wire

4 860 ₽
57

234061410 Flat Washer 6 mm

Flat Washer 6 mm

690 ₽
58

570151000 Protection Cap

Protection Cap

1 600 ₽
59

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6

50 ₽
60

515177646 Fan Harness

Fan Harness

4 270 ₽
65

518325560 Adhesive Patch

Adhesive Patch

420 ₽
