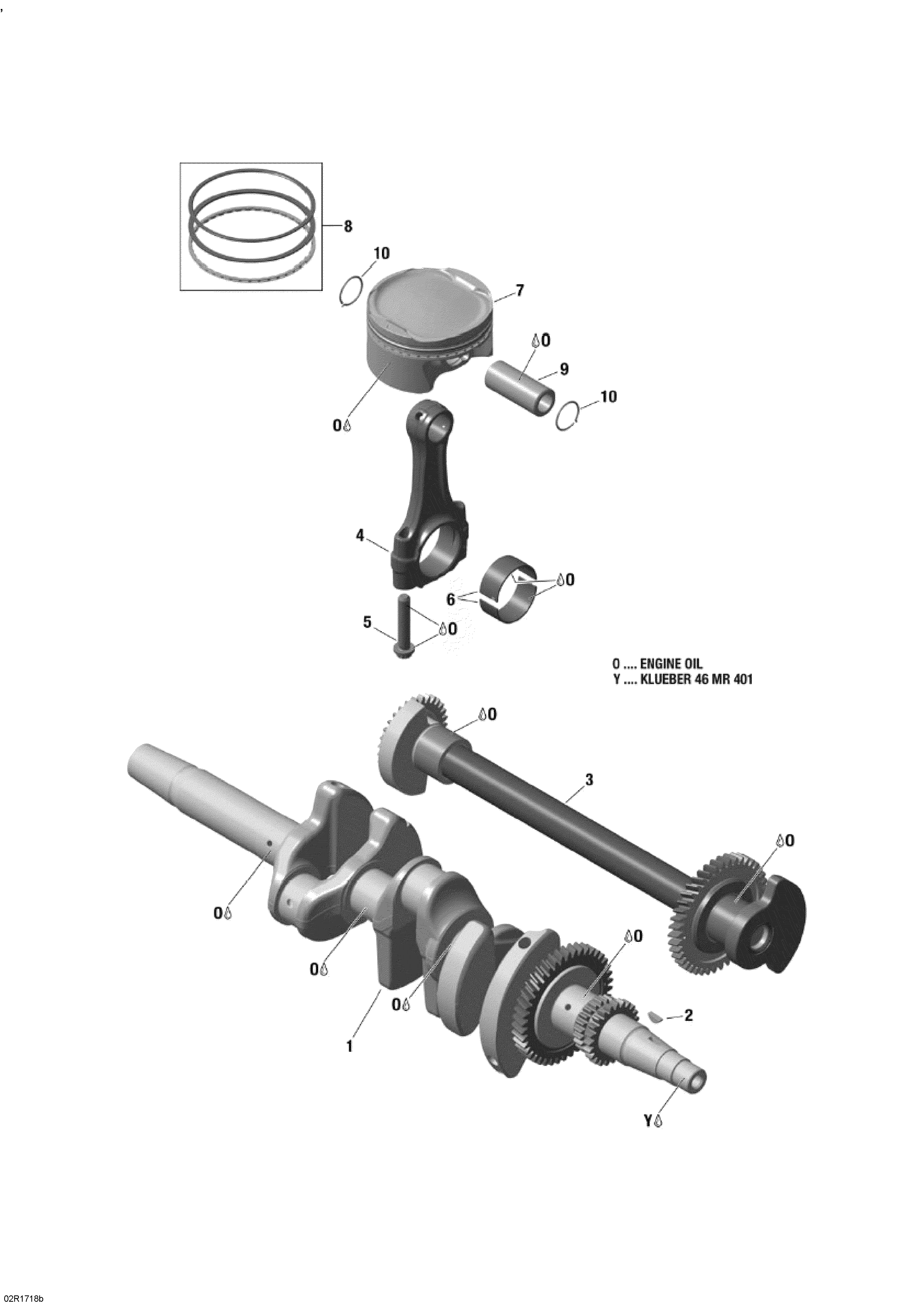

01- Crankshaft, Pistons And Balance Shaft - 1200 4-TEC для BRP Lynx 003 - 69 Ranger 1200 4-TEC - 2019
![](/wa-data/public/shop/sheme/bombardier/lynx/72d70986-c1c5-45ac-ac9b-d8a1040c01b2.png)
-
№АртикулНазвание
-
1420819796 Crankshaft Ass'y. Includes 1 To 2Crankshaft Ass'y. Includes 1 To 2
-
2420246570 Woodruff Key 4 x 5Woodruff Key 4 x 5
-
3420820054 Balance ShaftBalance Shaft
-
4420917645 Connecting Rod Ass'y. Includes 4 To 5Connecting Rod Ass'y. Includes 4 To 5
-
5420641475 Connecting Rod Screw M9 x 1. Tightening Torque 40 Nm +70°Connecting Rod Screw M9 x 1. Tightening Torque 40 Nm +70°
-
6420933842 Plain BearingPlain Bearing
-
7420891890 Piston Ass'y. Includes 7 To 8Piston Ass'y. Includes 7 To 8
-
8420296774 Piston Ring SetPiston Ring Set
-
9420216274 Piston PinPiston Pin
-
10420245436 Circlip. Included In Gasket KitCirclip. Included In Gasket Kit
