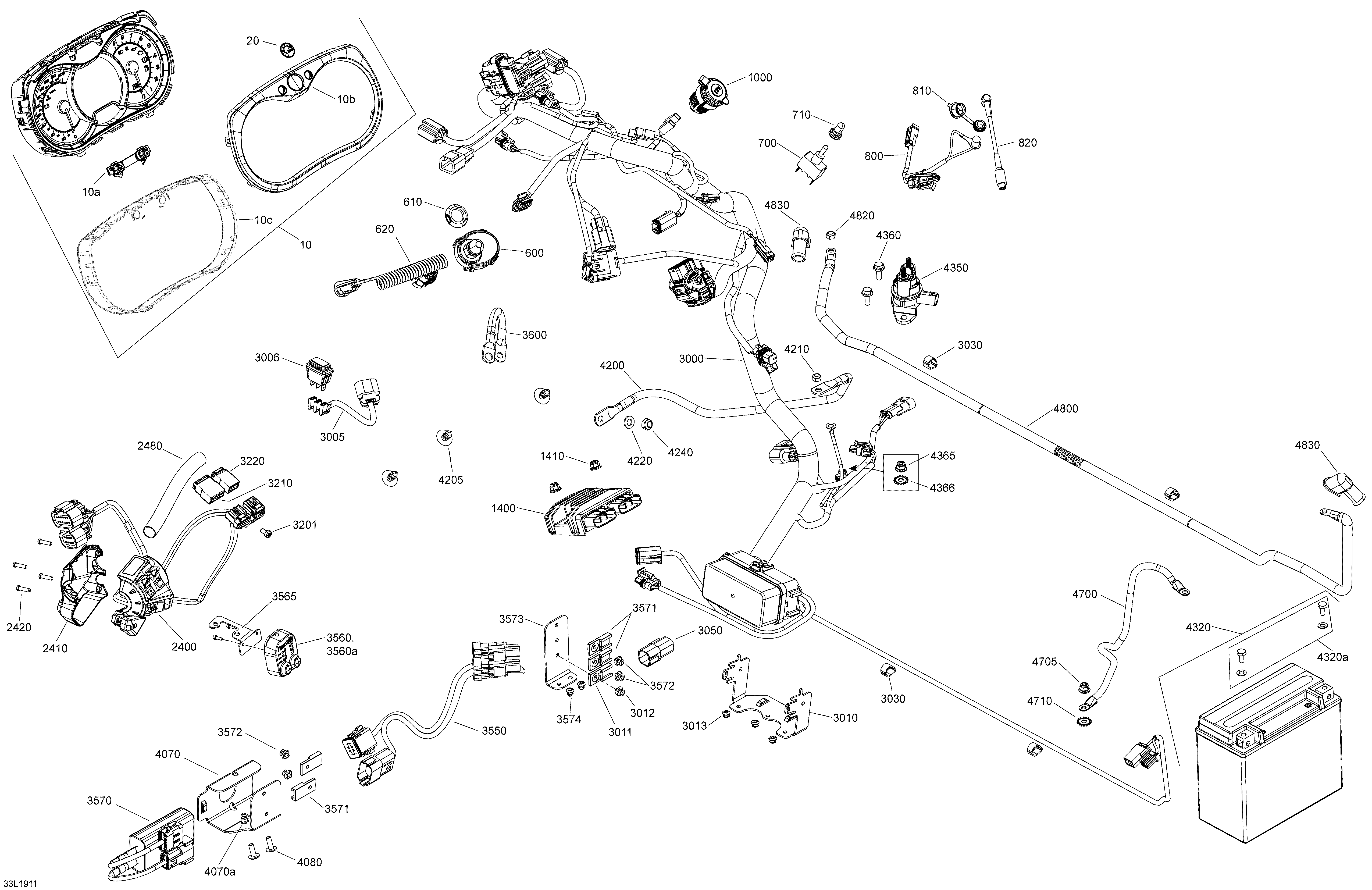

10- Electrical 69 Ranger - 1200 4-TEC для BRP Lynx 003 - 69 Ranger 1200 4-TEC - 2019
-
№АртикулНазвание
-
10515177913 Indicator. Includes 10 to 10cIndicator. Includes 10 to 10c
-
10a415129355 Speedometer ButtonSpeedometer Button
-
10b415129348 Gauge RingGauge Ring
-
10c415129349 LensLens
-
20516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
600515178225 DESS Switch, RFIDDESS Switch, RFID
-
610278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
620515178288 KeyKey
-
700410110700 Heat Grip SwitchHeat Grip Switch
-
710515175281 Switch CoverSwitch Cover
-
1000710001248 Outlet DCOutlet DC
-
1400515177325 Voltage RegulatorVoltage Regulator
-
1410233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
2400515178197 LH Switch HousingLH Switch Housing
-
2410515177147 Housing PlateHousing Plate
-
2420250000671 Torx ScrewTorx Screw
-
2480415129879 Protector TubeProtector Tube
-
3000515178125 Main HarnessMain Harness
-
3004515177377 Comfort Indicator PanelComfort Indicator Panel
-
3005515177568 ECO HarnessECO Harness
-
3006515177569 ECO Rocker SwitchECO Rocker Switch
-
3010515178394 Fusebox SupportFusebox Support
-
3011270000141 ClipClip
-
3012293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
3013390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3030293740059 VelcroVelcro
-
3050710004904 Connector PlugConnector Plug
-
3201250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
3210515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3220515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
3600515176883 Ground WireGround Wire
-
4200515176779 Start cable 1000 mm.Start cable 1000 mm.
-
4205414644300 DartDart
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4220234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4320515176151 Battery. Includes 4320 to 4320aBattery. Includes 4320 to 4320a
-
4320a515176081 Battery Bolt KitBattery Bolt Kit
-
4350278003012 Starter RelayStarter Relay
-
4360207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
4365233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
4366250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4700515176777 Ground WireGround Wire
-
4705233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
4710250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4800515176778 Battery WireBattery Wire
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4830710000495 Protector CapProtector Cap
-
7010605355344 Aluminium Coated Fiberglass TubeAluminium Coated Fiberglass Tube
