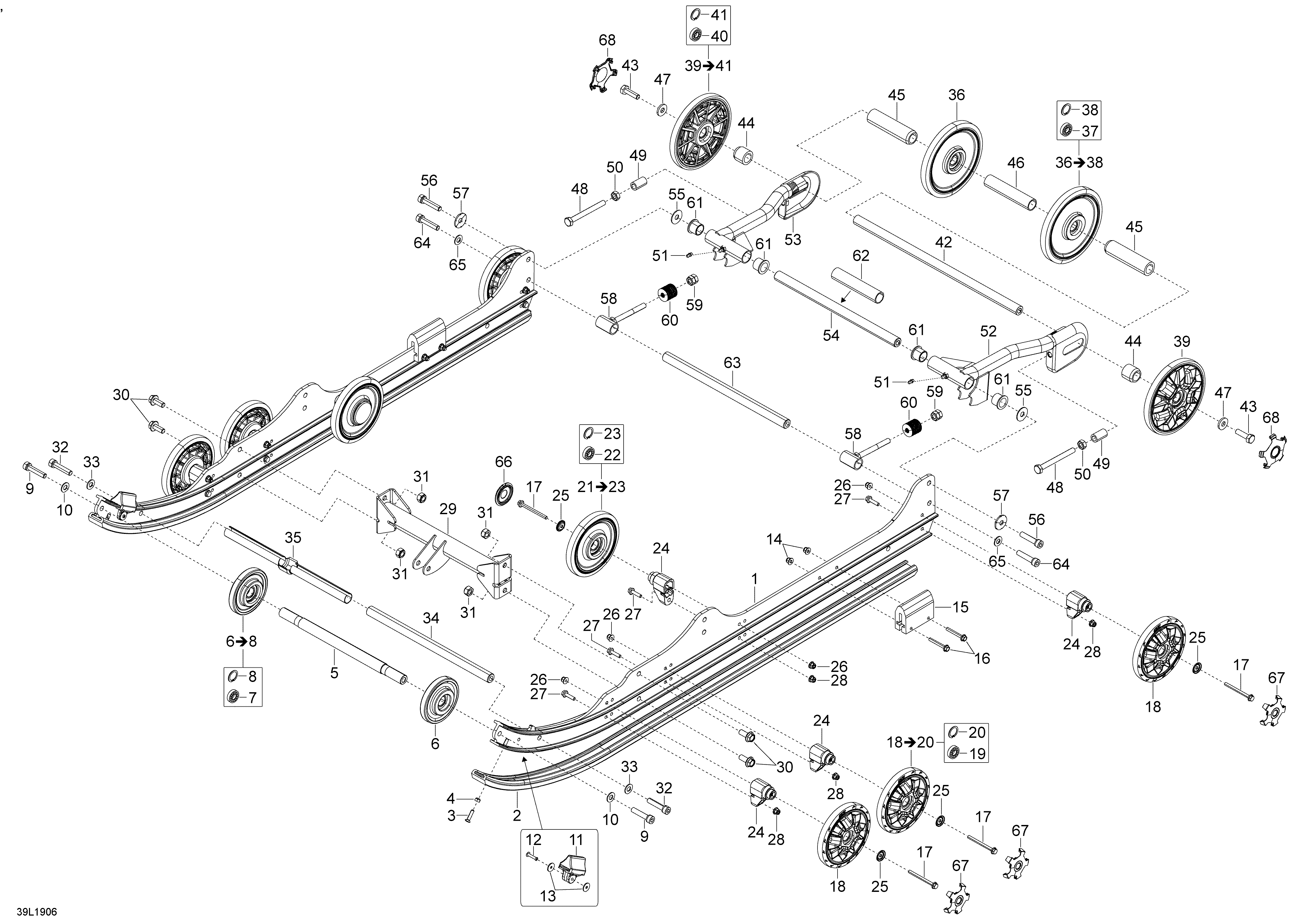

08- Rear Suspension - Lower Section для BRP Lynx 003 - 69 Ranger 1200 4-TEC - 2019
-
№АртикулНазвание
-
1503195311 Runner. Package SnowCruiser. Includes 1 to 1aRunner. Package SnowCruiser. Includes 1 to 1a
-
1a503192888 RunnerRunner
-
2503192843 Black, Slider ShoeBlack, Slider Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192889 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Black Wheel Ass'y, 100 mm. Includes 6 to 7Black Wheel Ass'y, 100 mm. Includes 6 to 7
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket ScrewSocket Screw
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11503193504 Rubber StopperRubber Stopper
-
12293150224 Rivet Pop 3/16Rivet Pop 3/16
-
13503191273 WasherWasher
-
14233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15570023100 Rubber StopperRubber Stopper
-
16207664554 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
17207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
18503193734 Wheel-141mm. Includes 18 to 19Wheel-141mm. Includes 18 to 19
-
19503190396 Ball BearingBall Bearing
-
21503191316 Black - Wheel Ass'y 141 mm. Includes 21 to 23Black - Wheel Ass'y 141 mm. Includes 21 to 23
-
22503190396 Ball BearingBall Bearing
-
23415129371 Retaining RingRetaining Ring
-
24503193894 Casted SupportCasted Support
-
25503191820 Wheel Cup M6Wheel Cup M6
-
26233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
28233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
520503193309 SleeveSleeve
-
29503193182 Lower Support, Center ShockLower Support, Center Shock
-
30250001026 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32205504544 Socket ScrewSocket Screw
-
33234001410 Flat Washer 10 mmFlat Washer 10 mm
-
36503192140 Black, Wheel Ass'y, 165 mm. Includes 36 to 38Black, Wheel Ass'y, 165 mm. Includes 36 to 38
-
37503190396 Ball BearingBall Bearing
-
38415129371 Retaining RingRetaining Ring
-
39503193809 Wheel 165mm. Includes 39 to 41Wheel 165mm. Includes 39 to 41
-
40503190396 Ball BearingBall Bearing
-
41415129371 Retaining RingRetaining Ring
-
42503191408 Rear AxleRear Axle
-
43250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
44503192048 SpacerSpacer
-
45503192671 SpacerSpacer
-
46605448429 SleeveSleeve
-
47503190439 WasherWasher
-
48230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
49503192696 SpacerSpacer
-
50232006414 Hex. Nut M10 X 1.5Hex. Nut M10 X 1.5
-
51408200700 Grease FittingGrease Fitting
-
52503194592 LH Extension Swing. Includes 52 to 52aLH Extension Swing. Includes 52 to 52a
-
52a233701400 Hexagonal NutHexagonal Nut
-
53503194593 RH Extension Swing. Includes 53 to 53aRH Extension Swing. Includes 53 to 53a
-
53a233701400 Hexagonal NutHexagonal Nut
-
545347713 Lower Shaft, Front ArmLower Shaft, Front Arm
-
5520116 ShimShim
-
56250001025 Screw-Socket M10 X 50 S.GripScrew-Socket M10 X 50 S.Grip
-
57512056700 Lock WasherLock Washer
-
58503192695 Adjustment Screw. Includes 58 to 58aAdjustment Screw. Includes 58 to 58a
-
58a5447372 SpacerSpacer
-
59232006414 Hex. Nut M10 X 1.5Hex. Nut M10 X 1.5
-
6025004 Cup SpringCup Spring
-
6131024 CushionCushion
-
62605448429 SleeveSleeve
-
2410250000556 Hexagonal ScrewHexagonal Screw
-
2420233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
63503192927 Shaft PassivatedShaft Passivated
-
64250001025 Screw-Socket M10 X 50 S.GripScrew-Socket M10 X 50 S.Grip
-
65234001410 Flat Washer 10 mmFlat Washer 10 mm
-
66503192771 Black, Wheel CapBlack, Wheel Cap
-
67503195345 Black, Wheel CapBlack, Wheel Cap
-
68503195348 Black, Wheel CapBlack, Wheel Cap
