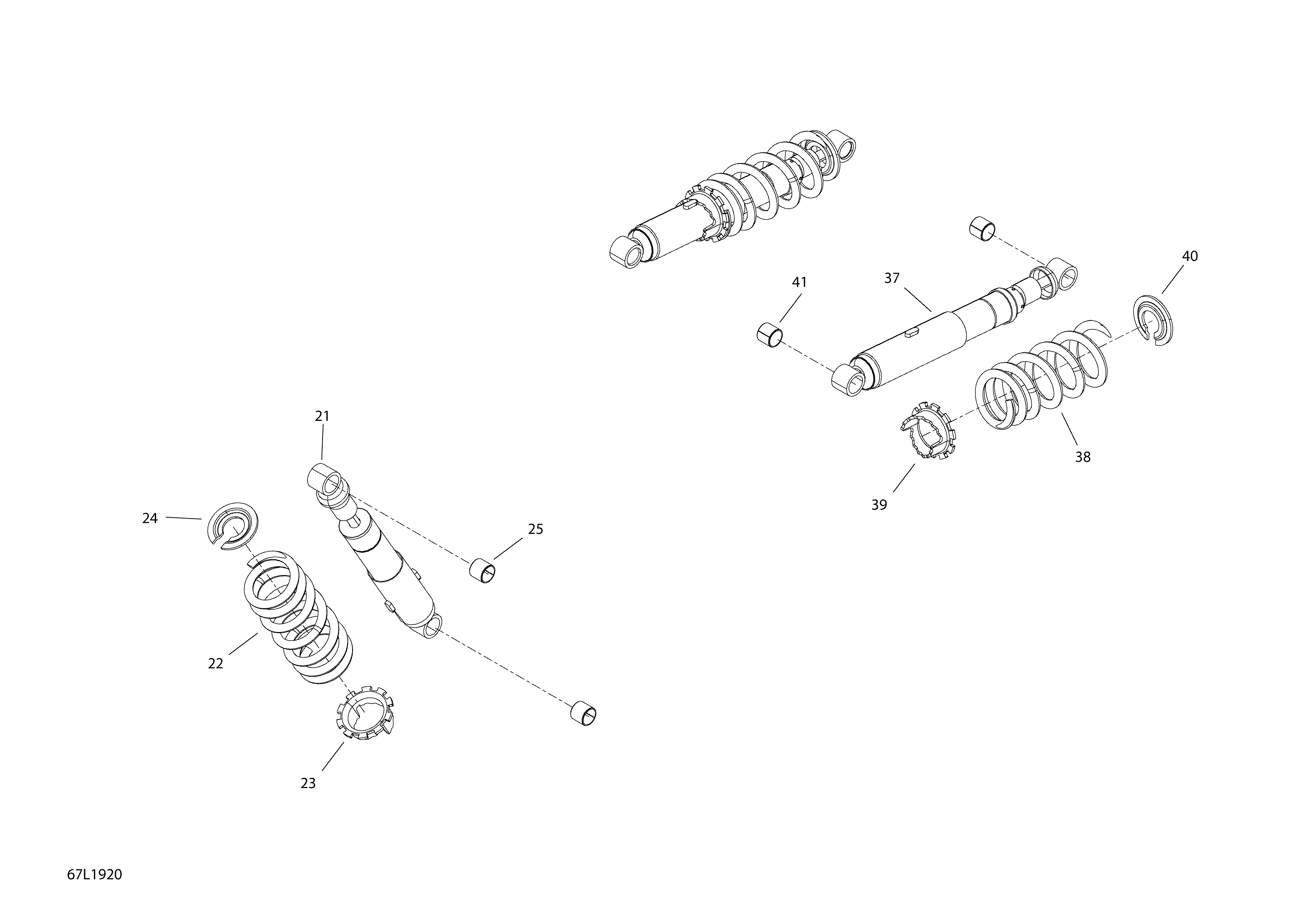

08- Rear Shocks 69 Ranger - 1200 4-TEC - Package Alpine для BRP Lynx 003 - 69 Ranger 1200 4-TEC - 2019
-
№АртикулНазвание
-
21503193517 Shock, CenterShock, Center
-
22503191848 White SpringWhite Spring
-
23230078 Adjusting CamAdjusting Cam
-
24230076 Spring SeatSpring Seat
-
2531094 CushionCushion
-
37503193521 ShockShock
-
38503193279 SpringSpring
-
39230078 Adjusting CamAdjusting Cam
-
40230076 Spring SeatSpring Seat
-
4131094 CushionCushion
