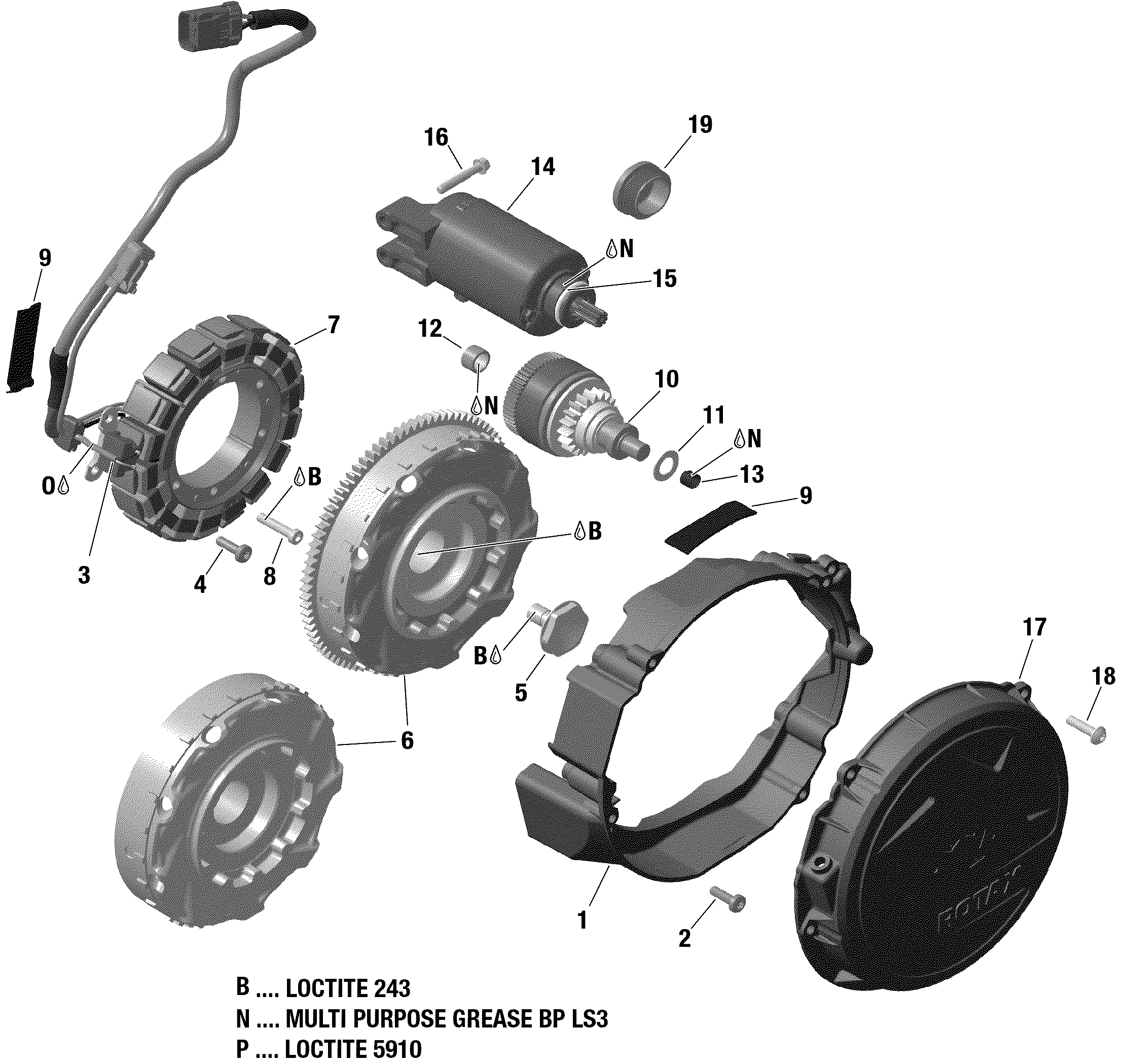

03- Magneto And Electric Starter для BRP Lynx 001 - RAVE 600R E-TEC - 2019
-
№АртикулНазвание
-
1420911850 Ignition HousingIgnition Housing
-
2420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
3420966841 Pick Up Ass'yPick Up Ass'y
-
4420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
5420840851 Collar Hex Screw M12 X 25Collar Hex Screw M12 X 25
-
6420864431 Magneto Flywheel. Except SHOT VersionMagneto Flywheel. Except SHOT Version
-
6420864436 Magneto Flywheel. SHOT VersionMagneto Flywheel. SHOT Version
-
7420864420 Stator Ass'y 55v/1300WStator Ass'y 55v/1300W
-
8420540001 Allen Screw M6 X 30Allen Screw M6 X 30
-
9420201360 Adhesive Pad, 1.6 mm X 20 mm X 60 mmAdhesive Pad, 1.6 mm X 20 mm X 60 mm
-
10420888047 Electric Starter Drive Ass'y. Electric Starter VersionElectric Starter Drive Ass'y. Electric Starter Version
-
11420827261 Thrust Washer. Electric Starter VersionThrust Washer. Electric Starter Version
-
12420232482 Needle Bushing. Electric Starter VersionNeedle Bushing. Electric Starter Version
-
13420938204 Spring. Electric Starter VersionSpring. Electric Starter Version
-
14>15420893820 Electric Starter. Electric Starter VersionElectric Starter. Electric Starter Version
-
16420250141 O-Ring. Electric Starter VersionO-Ring. Electric Starter Version
-
17420440274 Flanged Torx Screw M6 X 35. Electric Starter VersionFlanged Torx Screw M6 X 35. Electric Starter Version
-
18420940431 ScrewScrew
-
19420201930 Plug. Rewind Starter VersionPlug. Rewind Starter Version
