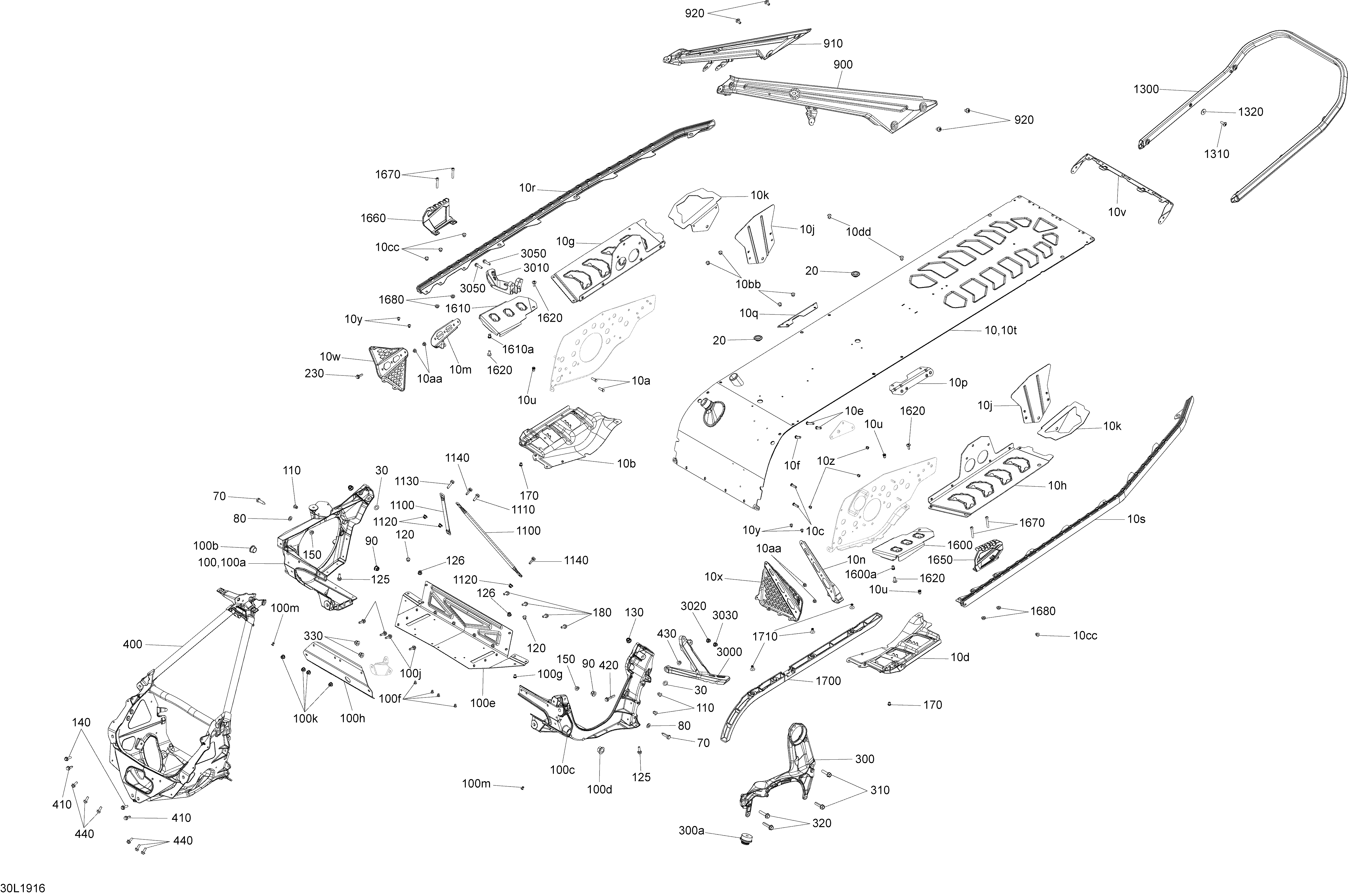

09- Frame - RAVE для BRP Lynx 001 - RAVE 600R E-TEC - 2019
-
№АртикулНазвание
-
10518330762 Black, Frame. Includes 10 to 10ddBlack, Frame. Includes 10 to 10dd
-
10a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10b518329301 RH Footrest Reinforcement. Includes 10b to 10cRH Footrest Reinforcement. Includes 10b to 10c
-
10c250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10d518329300 LH Footrest Reinforcement. Includes 10d to 10fLH Footrest Reinforcement. Includes 10d to 10f
-
10e250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10f250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
10g518329310 RH Angle ReinforcementRH Angle Reinforcement
-
10h518329309 LH Angle ReinforcementLH Angle Reinforcement
-
10j518329303 Rear Arm SupportRear Arm Support
-
10k518329304 Rear SupportRear Support
-
10m518329305 RH Reinforcement FootrestRH Reinforcement Footrest
-
10n518329306 LH Reinforcement FootrestLH Reinforcement Footrest
-
10p518330262 LH Member Fixation PlateLH Member Fixation Plate
-
10q518330263 RH Member Fixation PlateRH Member Fixation Plate
-
10r518329307 RH RollerRH Roller
-
10s518329308 LH RollerLH Roller
-
10t415130268 Kit Radiator Tunnel 129 Inch WeldKit Radiator Tunnel 129 Inch Weld
-
10u605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
10v518328990 Rear CapRear Cap
-
10w518328460 RH FootrestRH Footrest
-
10x518328463 LH FootrestLH Footrest
-
10y390909100 Avex RivetAvex Rivet
-
10z390909200 Avex RivetAvex Rivet
-
10aa293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10bb293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10cc293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10dd293150147 Hemlock RivetHemlock Rivet
-
20293730052 Black, PlugBlack, Plug
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100518330913 Module E. Includes 100 to 100mModule E. Includes 100 to 100m
-
100a518330684 RH Member Ass'y. Includes 100a to 100bRH Member Ass'y. Includes 100a to 100b
-
100b505073317 Leg CushionLeg Cushion
-
100c518330687 LH Member Ass'y. Includes 100c to 100dLH Member Ass'y. Includes 100c to 100d
-
100d505073317 Leg CushionLeg Cushion
-
100e518329844 Bottom PlateBottom Plate
-
100f390909100 Avex RivetAvex Rivet
-
100g293450268 Insert M5 X 0.8Insert M5 X 0.8
-
100h518330100 Front MemberFront Member
-
100j207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100k233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
100m390909100 Avex RivetAvex Rivet
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
126233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
130233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
170293450268 Insert M5 X 0.8Insert M5 X 0.8
-
180207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300518328693 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512060295 Rubber MountRubber Mount
-
310250001060 Screw-Pan HD.Torx M8X30Screw-Pan HD.Torx M8X30
-
320207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
330233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
400518330573 S ModuleS Module
-
410250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
440207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
900518330142 Viper Red, LH MemberViper Red, LH Member
-
910518330143 Viper Red, RH MemberViper Red, RH Member
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
1100518329974 Upper Colomn SupportUpper Colomn Support
-
1110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1120233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1130207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1300518330190 Red, Rear Bumper. Includes 1300 to 1300aRed, Rear Bumper. Includes 1300 to 1300a
-
1300a520001612 CapCap
-
1310250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
1320224061201 Flat WasherFlat Washer
-
1600518329570 Black, LH Footrest. Includes 1600 to 1600aBlack, LH Footrest. Includes 1600 to 1600a
-
1600a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
1610518329571 Black, RH Footrest. Includes 1610 to 1610aBlack, RH Footrest. Includes 1610 to 1610a
-
1610a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
1620250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
1650518330797 LH Side Foot SupportLH Side Foot Support
-
1660518330798 RH Side Foot SupportRH Side Foot Support
-
1670207664554 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
1680233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
3000518330358 Black Toe-holdBlack Toe-hold
-
3010518329134 Toe HoldToe Hold
-
3020233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3030233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3050210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
