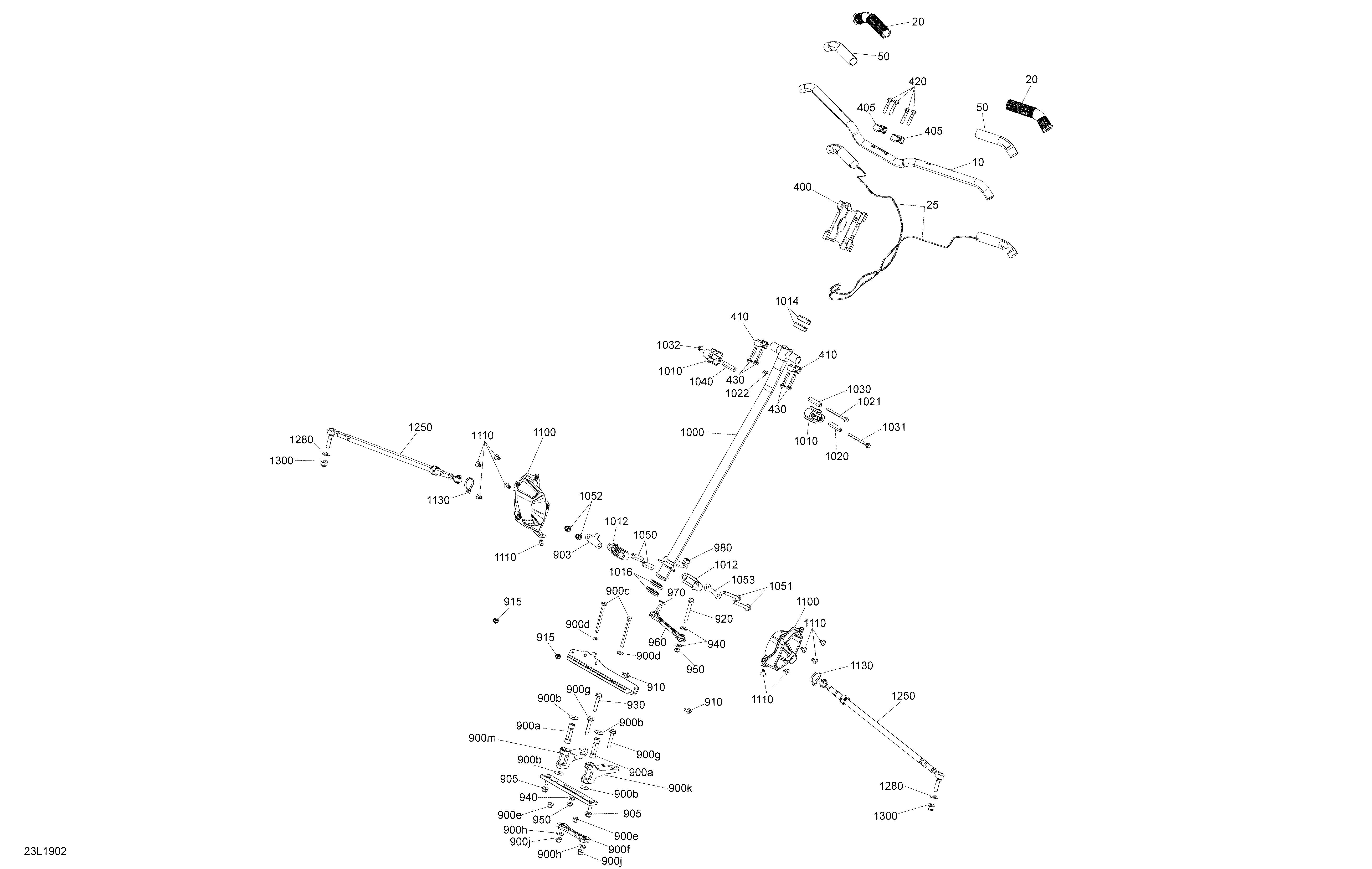

07- Steering - Rave для BRP Lynx 001 - RAVE 600R E-TEC - 2019
-
№АртикулНазвание
-
10506153006 Handle BarHandle Bar
-
20506153011 Black, Grip LynxBlack, Grip Lynx
-
25506152856 Heated FilmHeated Film
-
50506152548 InsulantInsulant
-
400506152881 Black, ExtensionBlack, Extension
-
405506152894 SupportSupport
-
410506152894 SupportSupport
-
420250000904 Button Head Torx Screw M8 X 38Button Head Torx Screw M8 X 38
-
430250000852 Hexagonal Flange Screw M8 X 1.25 x 60Hexagonal Flange Screw M8 X 1.25 x 60
-
900506152917 Steering Linkage Ass'y. Includes 900 to 900mSteering Linkage Ass'y. Includes 900 to 900m
-
900a506152788 LH Swivel ArmLH Swivel Arm
-
900b506152790 RH Swivel ArmRH Swivel Arm
-
900c506152792 Swivel PivotSwivel Pivot
-
900d503191800 WasherWasher
-
900e207088544 Hex. Screw M8 X 85Hex. Screw M8 X 85
-
900f503192494 WasherWasher
-
900g233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
900h506152755 Ball JointBall Joint
-
900j250001028 Hex. Flanged Screw M6 X 45Hex. Flanged Screw M6 X 45
-
900k506151245 WasherWasher
-
900m233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
903506153008 Steering StopperSteering Stopper
-
905233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
910207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
915233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
920207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
930207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
940506151245 WasherWasher
-
950232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
960506152753 Ball JointBall Joint
-
970506152582 WasherWasher
-
980232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
1000506153026 Main TubeMain Tube
-
1010506152219 Upper Half HousingUpper Half Housing
-
1012506153048 Lower Half-HousingLower Half-Housing
-
1014506152292 Upper Vibration RingUpper Vibration Ring
-
1016506152518 Lower Vibration RingLower Vibration Ring
-
1020506152297 Housing BushingHousing Bushing
-
1021207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
1022233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1030506152297 Housing BushingHousing Bushing
-
1031207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
1032233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1040506152297 Housing BushingHousing Bushing
-
1050506152937 Housing BushingHousing Bushing
-
1051207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
1052233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
1053506152938 Stopper PlateStopper Plate
-
1100506153109 BootBoot
-
1110293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
1130414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1250506153058 Rod Ass'yRod Ass'y
-
1280506152582 WasherWasher
-
1300233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
