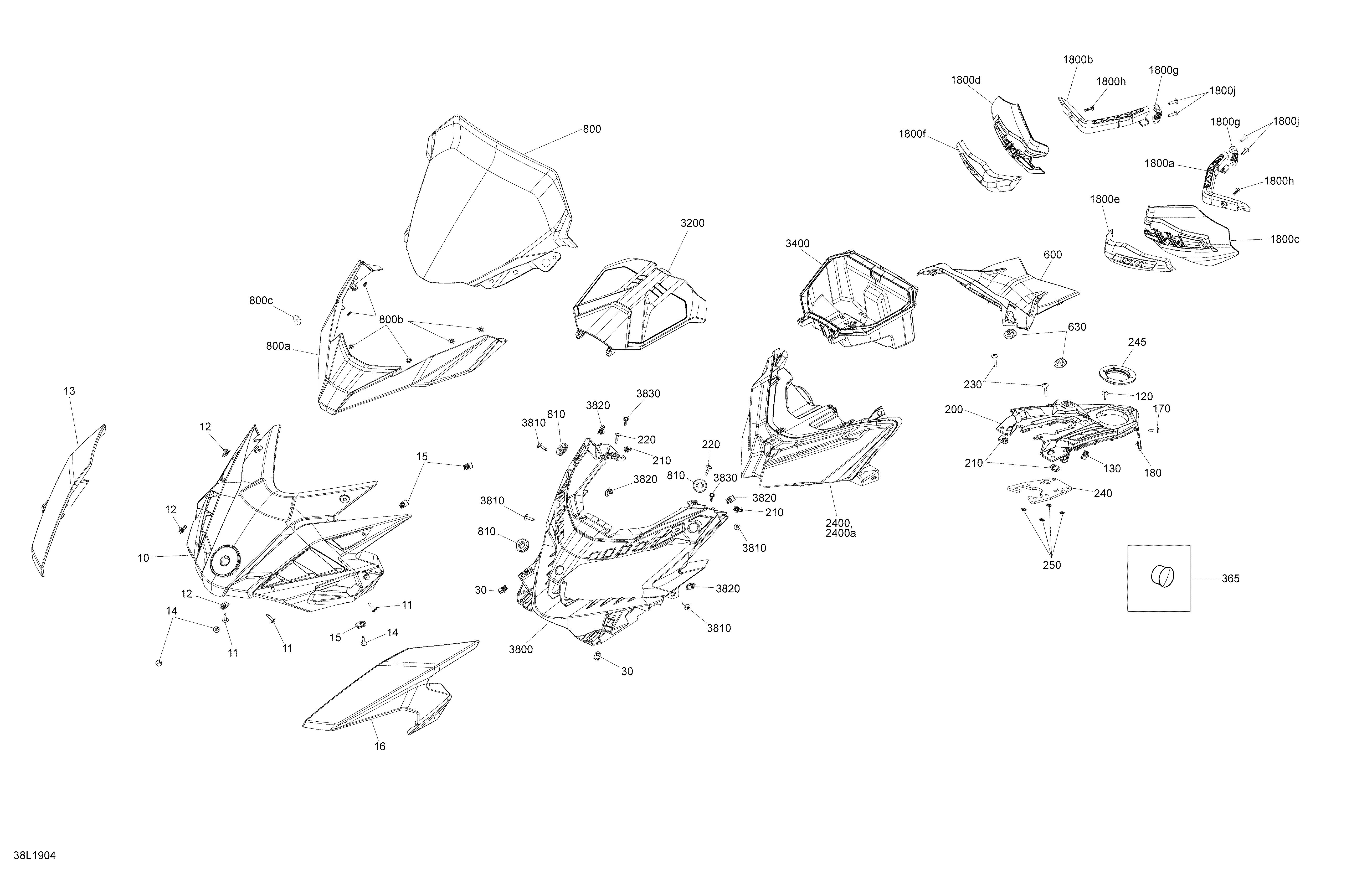

09- Hood - Front Section для BRP Lynx 001 - RAVE 600R E-TEC - 2019
-
№АртикулНазвание
-
10517306115 Hood MiddleHood Middle
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13517306079 RH Hood FrontRH Hood Front
-
14250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
15250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
16517306077 LH Hood FrontLH Hood Front
-
30250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
120250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
130250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
170250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
180250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
195517306437 Upper Side Panel CapUpper Side Panel Cap
-
200517306712 Console RearConsole Rear
-
210250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
220250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
230250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
240517306398 Foam ConsoleFoam Console
-
245517304518 Console NutConsole Nut
-
250732610072 Push NutPush Nut
-
365572051500 CapCap
-
600517306117 Indicator SupportIndicator Support
-
800860201259 Ultra Low WindshieldUltra Low Windshield
-
800a517306187 Wind DeflectorWind Deflector
-
800b732610072 Push NutPush Nut
-
800c250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
810517303756 GrommetGrommet
-
1800a517305290 Deep Black, LH ArmDeep Black, LH Arm
-
1800b517305293 Deep Black, RH ArmDeep Black, RH Arm
-
1800c517305291 LH Deflector, Smoke 60% Transm.LH Deflector, Smoke 60% Transm.
-
1800d517305294 RH Deflector, Smoke 60% Transm.RH Deflector, Smoke 60% Transm.
-
1800e517305546 CapCap
-
1800f517305547 CapCap
-
1800g517305296 BrideBride
-
1800h250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1800j250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2400517305752 Headlamp. Includes 2400 to 2400aHeadlamp. Includes 2400 to 2400a
-
2400a415130081 BulbBulb
-
3200517305871 Deep Black, Cover Ass'yDeep Black, Cover Ass'y
-
3400517306058 Trunk Ass'yTrunk Ass'y
-
3800517306186 Black, Head LampBlack, Head Lamp
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
