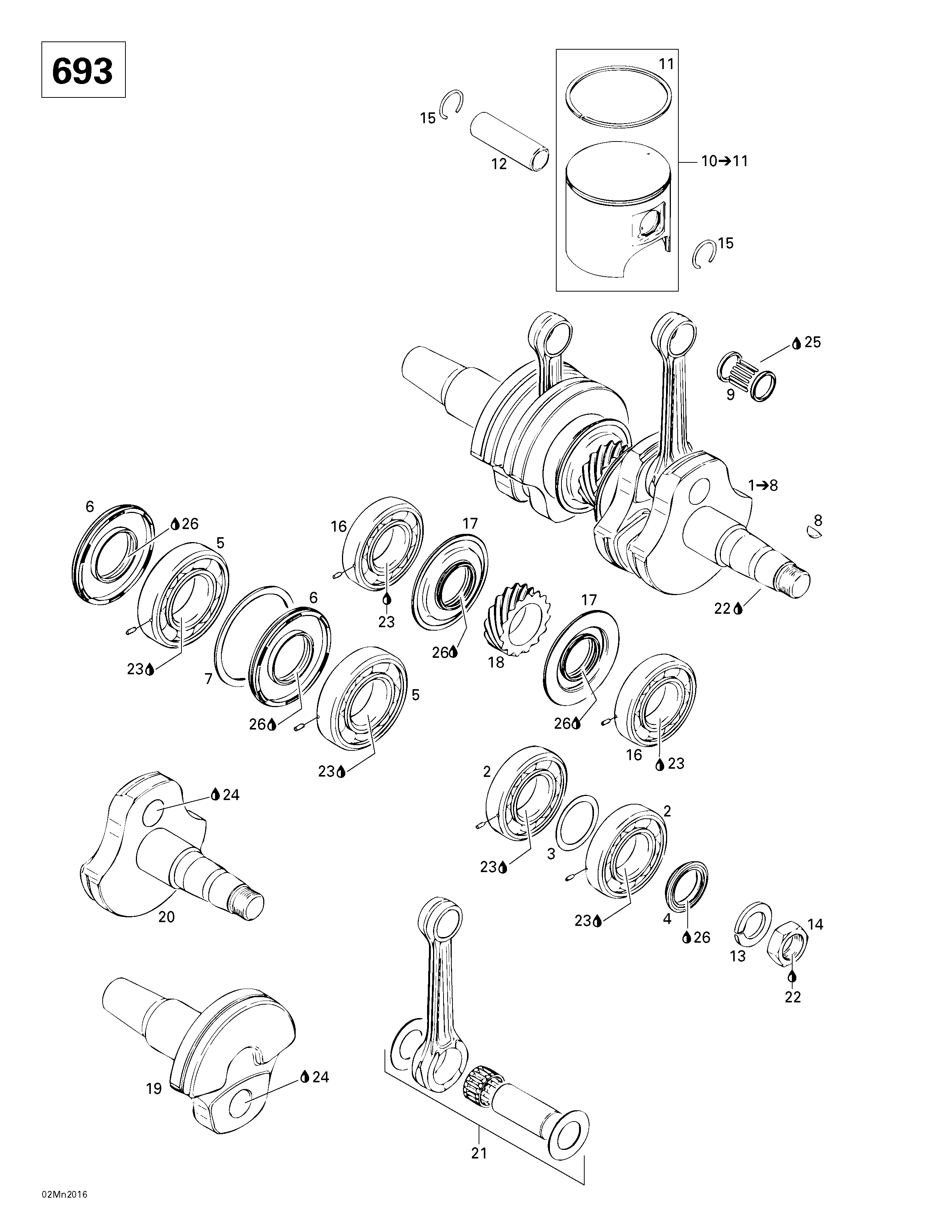

01- Crankshaft And Pistons 2 для BRP Ski-Doo Formula Z 600/700 - 2000
-
№АртикулНазвание
-
1420888280 Crankshaft Ass'y. Includes 1 - 8. Formula Z 700.Crankshaft Ass'y. Includes 1 - 8. Formula Z 700.
-
2420832575 Ball Bearing 6207. Formula Z 700.Ball Bearing 6207. Formula Z 700.
-
3420427502 Adjustment Washer. Formula Z 700.Adjustment Washer. Formula Z 700.
-
4420931790 Oil Seal. Formula Z 700.Oil Seal. Formula Z 700.
-
5420832600 Ball Bearing 6208. Formula Z 700.Ball Bearing 6208. Formula Z 700.
-
6420931280 Oil Seal. Formula Z 700.Oil Seal. Formula Z 700.
-
7420926190 Washer. Formula Z 700.Washer. Formula Z 700.
-
8420246015 Woodfuff Key. Formula Z 700.Woodfuff Key. Formula Z 700.
-
9420832425 Needle Bearing. Formula Z 700.Needle Bearing. Formula Z 700.
-
10420888294 Piston Ass'y (1 Ring 77.93 mm). Includes 10 - 11. Formula Z 700.Piston Ass'y (1 Ring 77.93 mm). Includes 10 - 11. Formula Z 700.
-
11420815222 Semi-Trapez Ring 78 mm. Formula Z 700.Semi-Trapez Ring 78 mm. Formula Z 700.
-
12420916370 Gudgeon Pin. Formula Z 700.Gudgeon Pin. Formula Z 700.
-
13420945759 Lock Washer 22 mm. Formula Z 700.Lock Washer 22 mm. Formula Z 700.
-
14420842230 Hex. Nut M22. Formula Z 700.Hex. Nut M22. Formula Z 700.
-
15420845102 Piston Circlip. Formula Z 700.Piston Circlip. Formula Z 700.
-
16420832575 Ball Bearing 6207. Formula Z 700.Ball Bearing 6207. Formula Z 700.
-
17290931450 Oil Seal. Formula Z 700.Oil Seal. Formula Z 700.
-
18420834355 Central Gear 15 Teeth. Formula Z 700.Central Gear 15 Teeth. Formula Z 700.
-
19420818706 Crankshaft (PTO side). Formula Z 700.Crankshaft (PTO side). Formula Z 700.
-
20420818736 Crankshaft (MAG side). Formula Z 700.Crankshaft (MAG side). Formula Z 700.
-
21420888283 Rod Repair Kit (MAG side). Formula Z 700.Rod Repair Kit (MAG side). Formula Z 700.
-
420888284 Rod Repair Kit (PTO side). Formula Z 700.Rod Repair Kit (PTO side). Formula Z 700.
-
22293800060 Loctite 243, 10 ml. Formula Z 700.Loctite 243, 10 ml. Formula Z 700.
-
23293800023 Loctite 767, Antiseize Lubricant, 454 g. Formula Z 700.Loctite 767, Antiseize Lubricant, 454 g. Formula Z 700.
-
24413711400 Loctite 648, 10 ml. Formula Z 700.Loctite 648, 10 ml. Formula Z 700.
-
25413802900 Injection Oil (12 x 1 Liter). Formula Z 700.Injection Oil (12 x 1 Liter). Formula Z 700.
-
26420899271 Petamo Grease, GHY133N, 400 g. Formula Z 700.Petamo Grease, GHY133N, 400 g. Formula Z 700.
