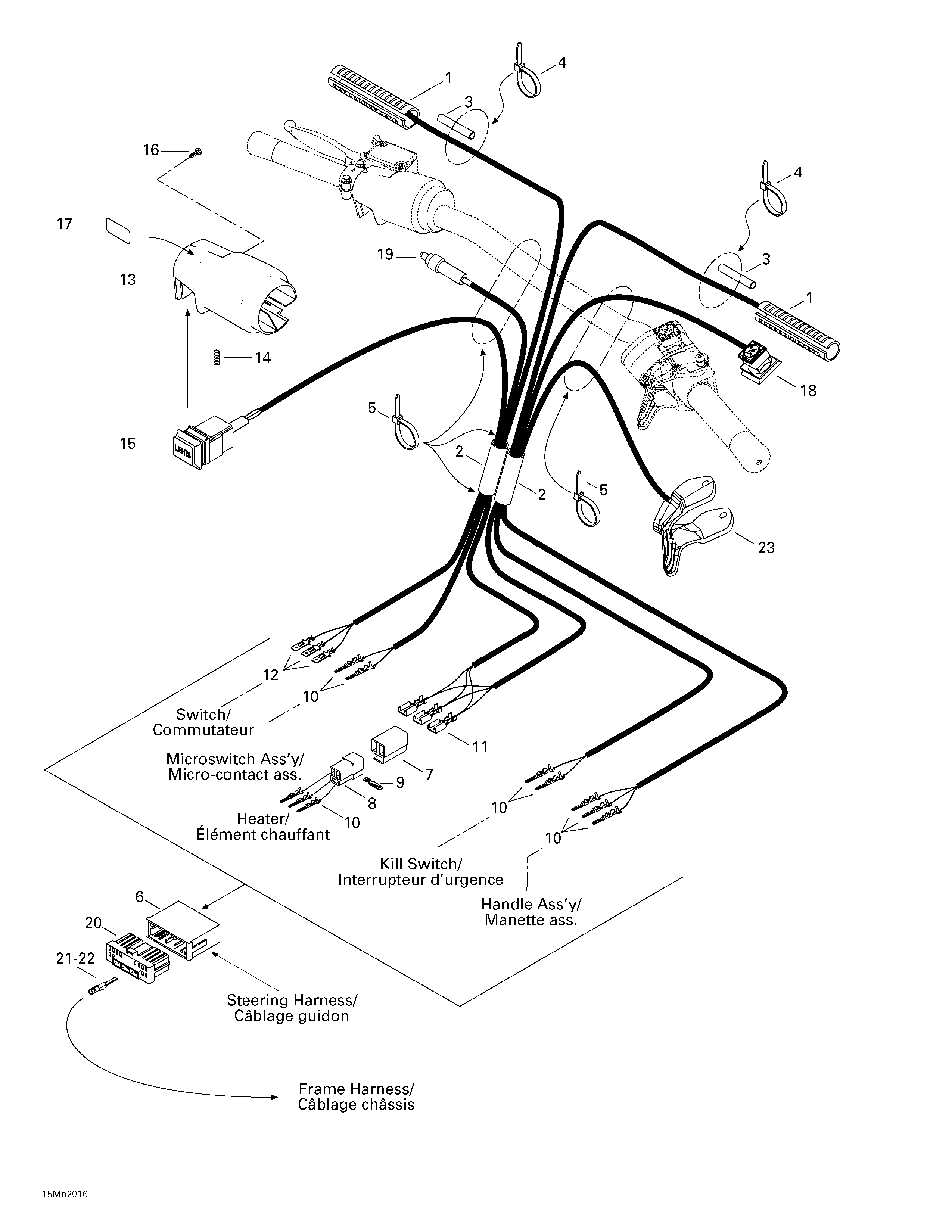

07- Steering System для BRP Ski-Doo Formula Z 600/700 - 2000
-
№АртикулНазвание
-
1515175162 HeaterHeater
-
2515175314 Low Temperature Tubing 5/8''Low Temperature Tubing 5/8''
-
3515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
4293750001 Tie Rap 94 mmTie Rap 94 mm
-
5414115200 Tie RapTie Rap
-
6515175352 Male Terminal Housing (13 circuits)Male Terminal Housing (13 circuits)
-
7409204300 Femelle Terminal Housing (3 circuits)Femelle Terminal Housing (3 circuits)
-
8409204200 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
9409206100 Male TerminalMale Terminal
-
10515175232 Male TerminalMale Terminal
-
11561503100 Femelle TerminalFemelle Terminal
-
12515175273 Male TerminalMale Terminal
-
13515175307 Brake HousingBrake Housing
-
14414440800 Set Screw M8 x 10Set Screw M8 x 10
-
15515175393 SwitchSwitch
-
16250000022 Phillips ScrewPhillips Screw
-
17415025500 Switch DecalSwitch Decal
-
18515175410 Kill SwitchKill Switch
-
19507032284 Microswitch Ass'yMicroswitch Ass'y
-
20515175350 Femelle Terminal Housing (13 circuits)Femelle Terminal Housing (13 circuits)
-
23512059204 Handle Ass'y 40 mmHandle Ass'y 40 mm
