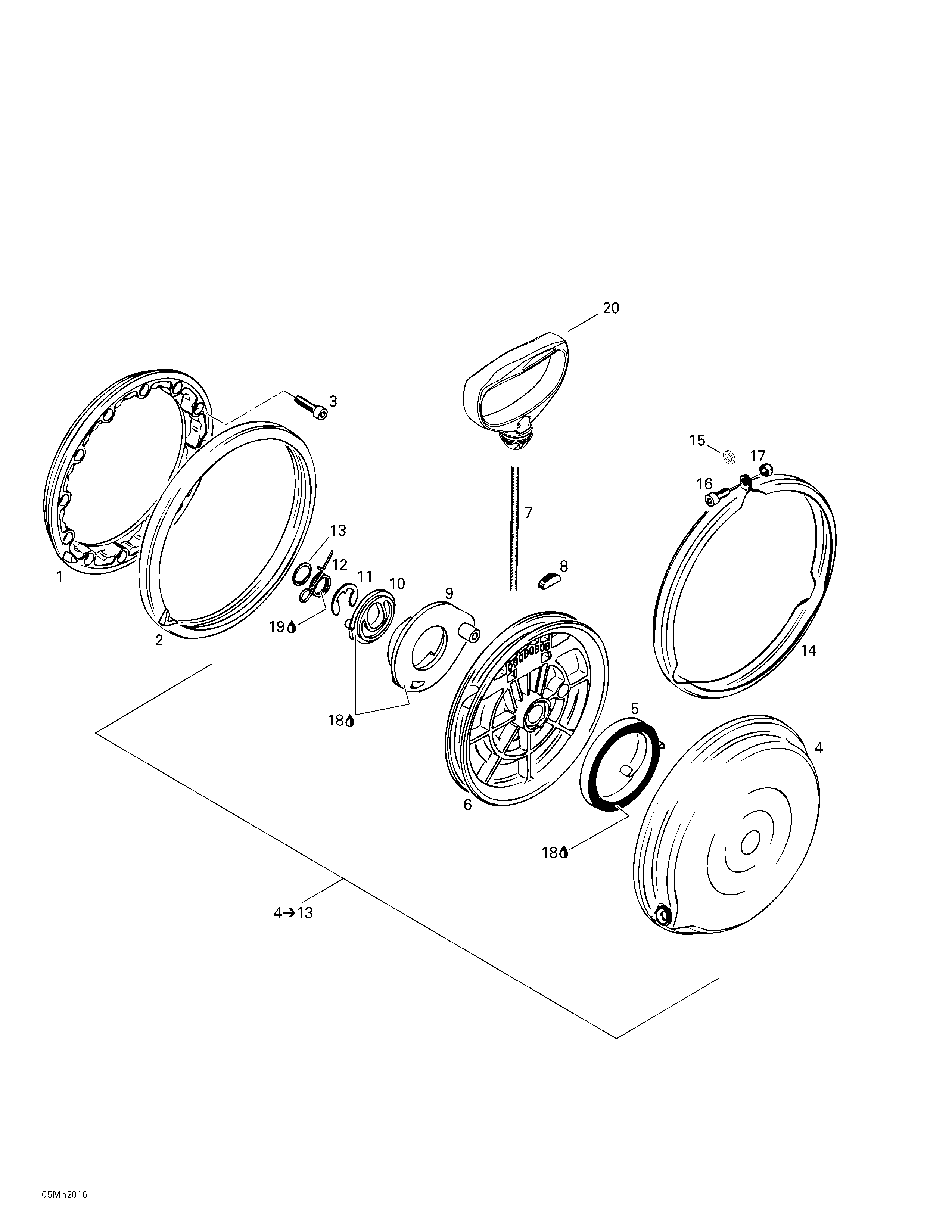

04- Rewind Starter для BRP Ski-Doo Formula Z 600/700 - 2000
-
№АртикулНазвание
-
1420810860 Connecting FlangeConnecting Flange
-
2420860950 Damper RingDamper Ring
-
3205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
4420887443 Rewind Starter Ass'y. Includes 4 - 13.Rewind Starter Ass'y. Includes 4 - 13.
-
4420810877 Starter HousingStarter Housing
-
5420939115 Rewind SpringRewind Spring
-
6420852284 Rope SheaveRope Sheave
-
7412500100 Starter Rope 2200 mmStarter Rope 2200 mm
-
8420852070 Key ClampKey Clamp
-
9420852296 PawlPawl
-
10420852301 Pawl LockPawl Lock
-
11420845300 CirclipCirclip
-
12420938986 Pawl SpringPawl Spring
-
13420945770 Lock RingLock Ring
-
14420851330 ClampClamp
-
15420944310 Distance WasherDistance Washer
-
16205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18420897061 Silicon Compound GreaseSilicon Compound Grease
-
19711297433 Molykote G-n Paste,. Dow Corning, 88162-74, 50 gMolykote G-n Paste,. Dow Corning, 88162-74, 50 g
-
20572084400 Starter GripStarter Grip
