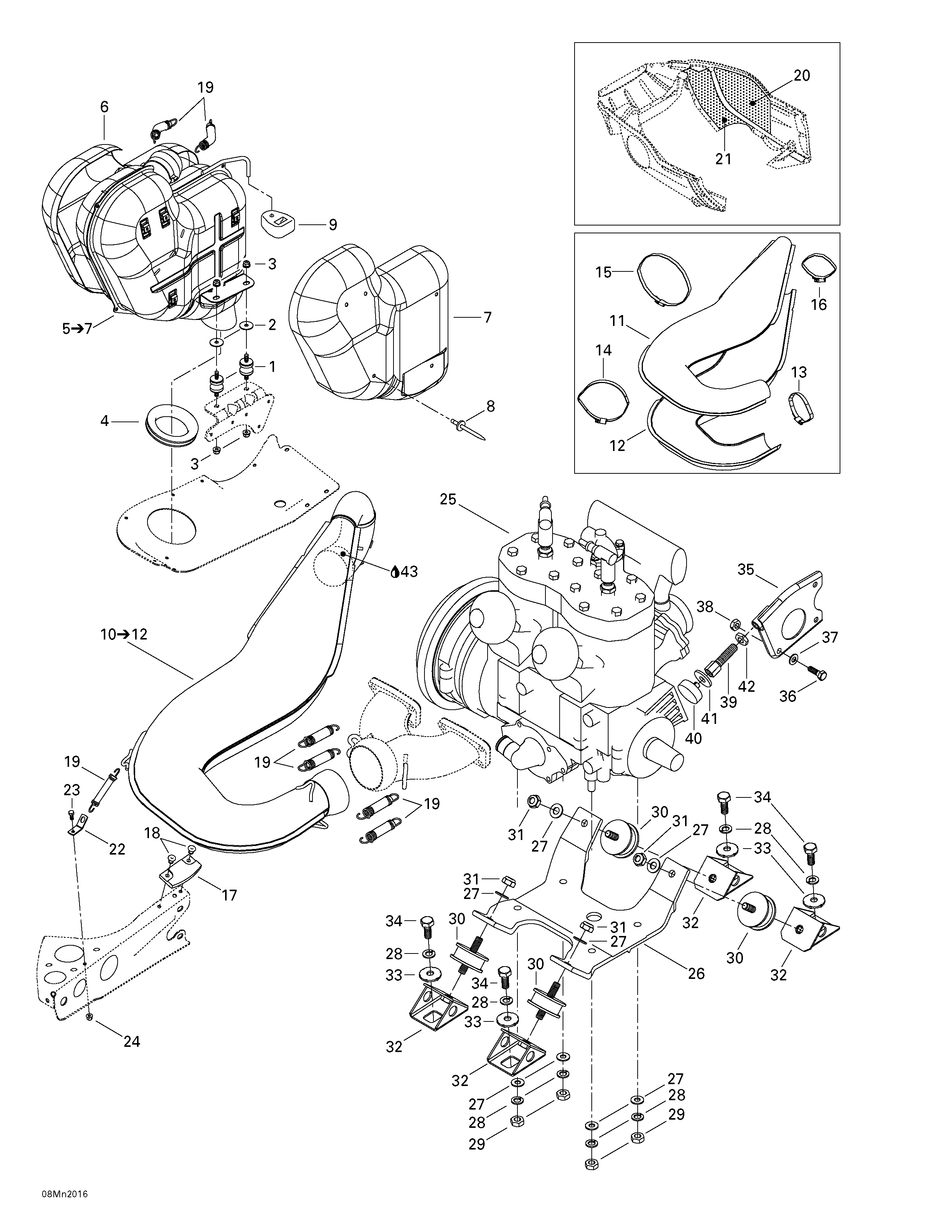

01- Engine Support And Muffler для BRP Ski-Doo Formula Z 600/700 - 2000
-
№АртикулНазвание
-
1514052994 Rubber MountRubber Mount
-
2514052891 Isolating WasherIsolating Washer
-
3233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
4570039000 Exhaust Grommet. Formula Z 600.Exhaust Grommet. Formula Z 600.
-
514053064 Exhaust Grommet. Formula Z 700.Exhaust Grommet. Formula Z 700.
-
5514052724 Muffler Ass'y. Includes 5 - 7. Formula Z 600.Muffler Ass'y. Includes 5 - 7. Formula Z 600.
-
514053035 Muffler Ass'y. Formula Z 700.Muffler Ass'y. Formula Z 700.
-
6514052732 R.H. Heat ShieldR.H. Heat Shield
-
7514052733 L.H. Heat ShieldL.H. Heat Shield
-
8390910000 Pop Rivet 3/16Pop Rivet 3/16
-
9514052704 Rubber BumperRubber Bumper
-
10514053012 Tuned Pipe Ass'y. Includes 10 - 12. Formula Z 600.Tuned Pipe Ass'y. Includes 10 - 12. Formula Z 600.
-
514053031 Tuned Pipe Ass'y. Formula Z 700.Tuned Pipe Ass'y. Formula Z 700.
-
11514053167 Upper EnveloppeUpper Enveloppe
-
12514053168 Lower EnveloppeLower Enveloppe
-
13514053074 Norma Gear ClampNorma Gear Clamp
-
14514052962 Norma Gear ClampNorma Gear Clamp
-
15514052735 Norma Gear ClampNorma Gear Clamp
-
16514052859 Norma Gear ClampNorma Gear Clamp
-
17570044100 Rubber PadRubber Pad
-
18390406500 Pop Rivet 3/16Pop Rivet 3/16
-
19415107100 SpringSpring
-
20514052718 Reflective SheetReflective Sheet
-
21514052719 Reflective SheetReflective Sheet
-
22514053026 Spring BracketSpring Bracket
-
23207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
24233251414 Elastic Flange Nut M5Elastic Flange Nut M5
-
25400509717 > Engine. Formula Z 600.> Engine. Formula Z 600.
-
400604018 > Engine. Formula Z 700.> Engine. Formula Z 700.
-
26512058000 Engine SupportEngine Support
-
27234001410 Flat Washer 10 mmFlat Washer 10 mm
-
28234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
29232006414 Hex. Nut M10Hex. Nut M10
-
30570127700 Rubber MountRubber Mount
-
31233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
32512050900 Engine SupportEngine Support
-
33512056700 Lock WasherLock Washer
-
34207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
35512058500 Support PlateSupport Plate
-
36207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
37234081410 Flat Washer 8 mmFlat Washer 8 mm
-
38232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
39512058800 Stopper ScrewStopper Screw
-
40512059056 StopperStopper
-
41512059057 WasherWasher
-
42732610019 R.H. Hex. Jam Nut M12R.H. Hex. Jam Nut M12
-
43413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
