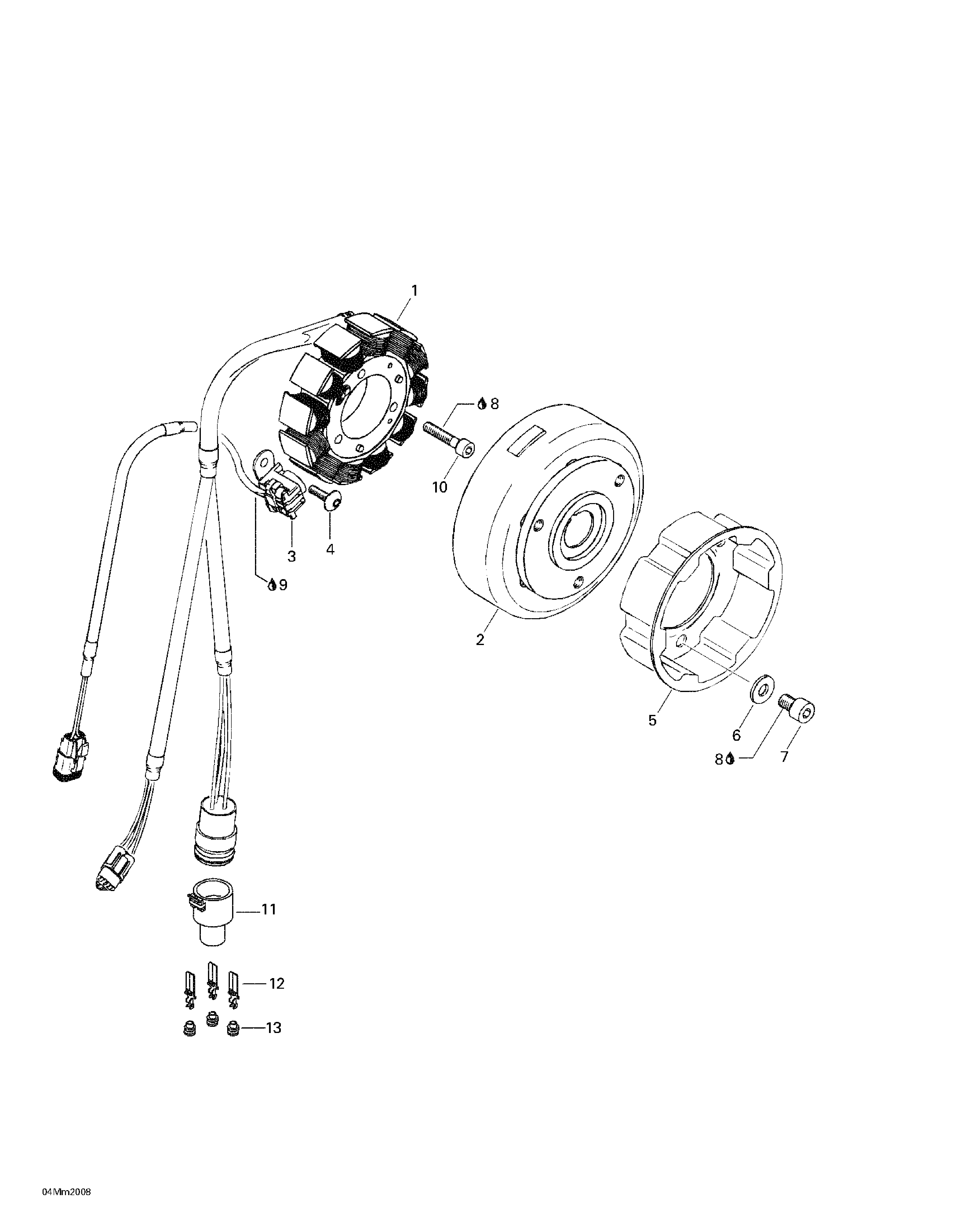

03- Magneto 12V 290W для BRP Ski-Doo Summit 600/SB - 2000
-
№АртикулНазвание
-
1410922923 Stator Plate Ass'yStator Plate Ass'y
-
2410922933 FlywheelFlywheel
-
3410922925 Pickup Ass'yPickup Ass'y
-
4420640321 Screw M5 x 16Screw M5 x 16
-
5420852419 Pulley StartingPulley Starting
-
6420945752 Lock Washer 8 mmLock Washer 8 mm
-
7420841520 Socket Head Screw M8 x 12Socket Head Screw M8 x 12
-
8293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
11409207900 Male HousingMale Housing
-
12409011100 Male TerminaleMale Terminale
-
13409208500 SealSeal
