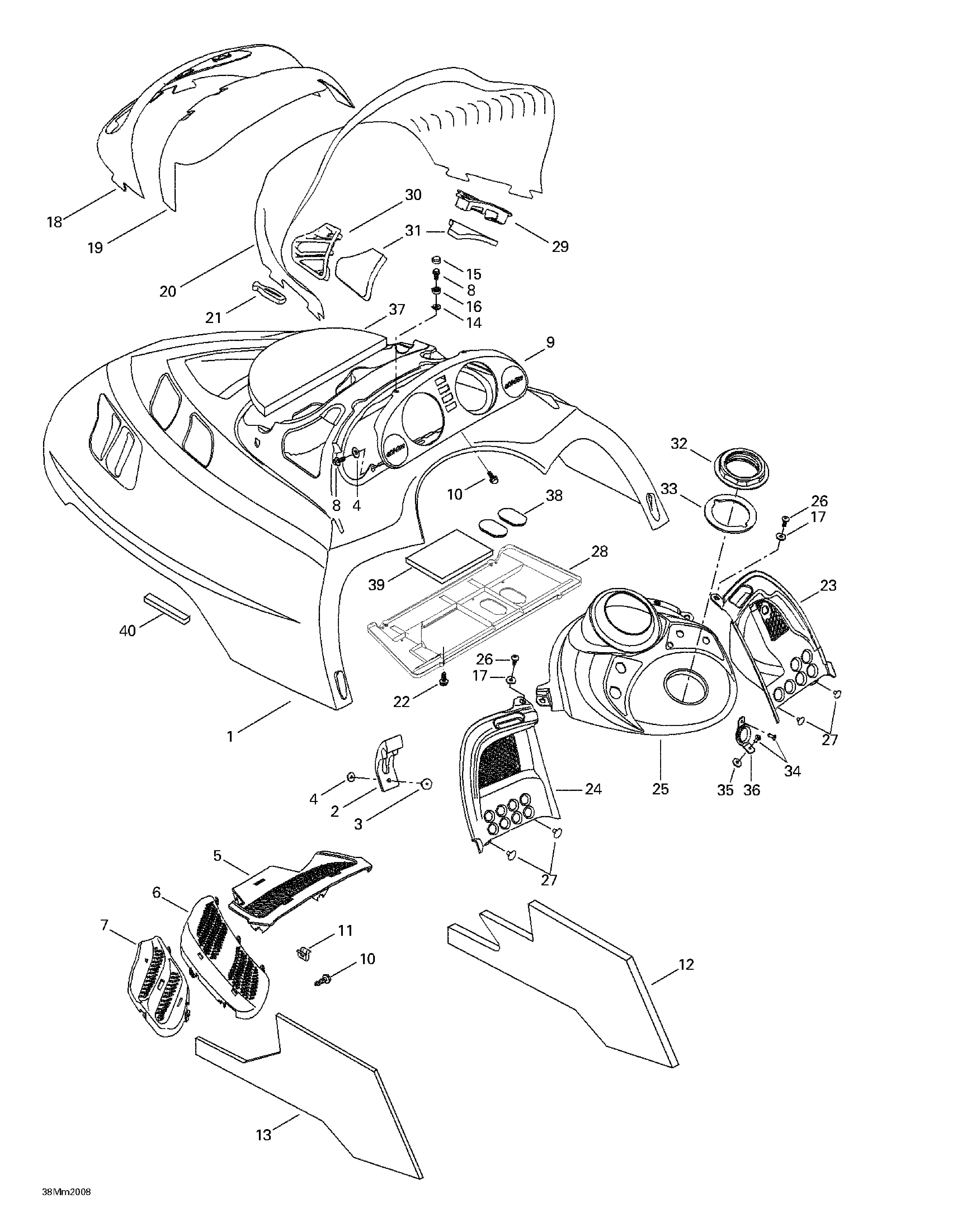

09- Cab, Console для BRP Ski-Doo Summit 600/SB - 2000
-
№АртикулНазвание
-
1517302337 Hood (Pearl Cloud)Hood (Pearl Cloud)
-
517302411 Hood (600SB)Hood (600SB)
-
2570027100 Hood LatchHood Latch
-
3390906800 Pop RivetPop Rivet
-
4517124300 WasherWasher
-
5517302026 Center Grill (Black)Center Grill (Black)
-
6517302028 R.H. Intermediate Grill (Black)R.H. Intermediate Grill (Black)
-
517302031 L.H. Intermediate Grill (Black)L.H. Intermediate Grill (Black)
-
7517302034 R.H. Side Grill (Black)R.H. Side Grill (Black)
-
517302036 L.H. Side Grill (Black)L.H. Side Grill (Black)
-
8241140060 Flanged Screw K40 x 10Flanged Screw K40 x 10
-
9572098604 Indicator SupportIndicator Support
-
10732601210 Hex. Tapping ScrewHex. Tapping Screw
-
11517302183 ClipClip
-
12517302371 R.H. Side FoamR.H. Side Foam
-
13517302372 L.H. Side FoamL.H. Side Foam
-
14234042600 Flat WasherFlat Washer
-
15414436900 Snap Cap (Black)Snap Cap (Black)
-
16414436800 Retainer CapRetainer Cap
-
17391301600 Flat WasherFlat Washer
-
18517302158 Headlamp MouldingHeadlamp Moulding
-
19517302003 Windshield SupportWindshield Support
-
20517302022 WindshieldWindshield
-
21570023800 Windshield LatchWindshield Latch
-
22243141640 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
23517302005 R.H. ConsoleR.H. Console
-
24517302006 L.H. ConsoleL.H. Console
-
25517302343 Center ConsoleCenter Console
-
517302378 Center Console (600SB - Yellow)Center Console (600SB - Yellow)
-
26732600030 ScrewScrew
-
27390406500 Pop RivetPop Rivet
-
28517302415 Air Intake PlateAir Intake Plate
-
29517302024 R.H. Air Intake GrillR.H. Air Intake Grill
-
30517302025 L.H. Air Intake GrillL.H. Air Intake Grill
-
31517302151 Air Intake FoamAir Intake Foam
-
32517302043 Console NutConsole Nut
-
33293250029 GasketGasket
-
34390409400 Pop RivetPop Rivet
-
35517302286 Rubber StopperRubber Stopper
-
36517302129 Rope GuideRope Guide
-
37517302317 Center Foam (Can./US Only)Center Foam (Can./US Only)
-
38570053702 Pan Bottom PanPan Bottom Pan
-
39517302425 Secondary FoamSecondary Foam
-
40517302420 FoamFoam
