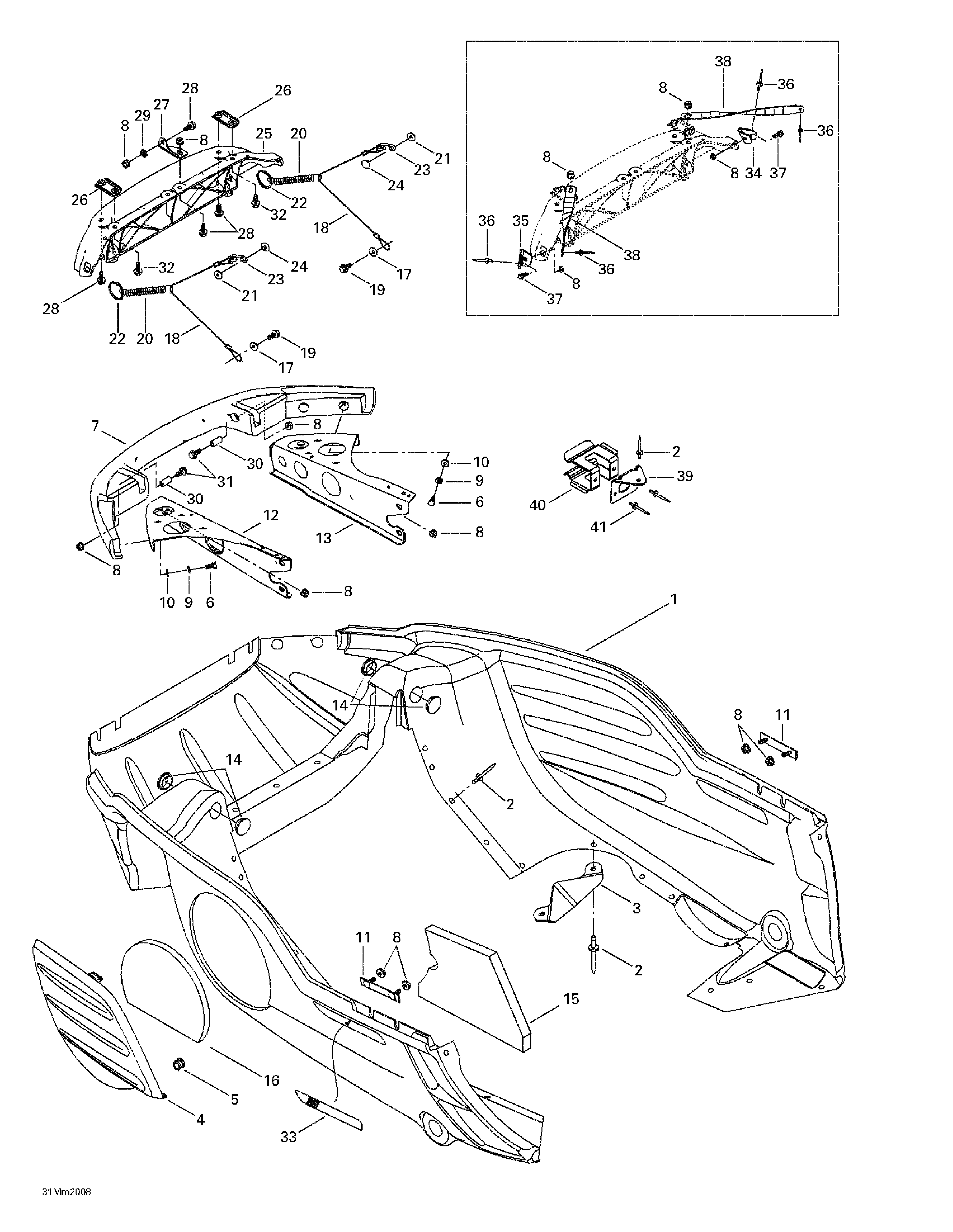

09- Bottom Pan для BRP Ski-Doo Summit 600/SB - 2000
-
№АртикулНазвание
-
1502006589 Bottom Pan (Black)Bottom Pan (Black)
-
2390906800 Pop RivetPop Rivet
-
3502006563 Snow DeflectorSnow Deflector
-
4502006506 Bottom Pan Door (Black)Bottom Pan Door (Black)
-
5414036300 GrommetGrommet
-
6207161444 Hex. Screw M6 x 14Hex. Screw M6 x 14
-
7502006536 Bumper (Black)Bumper (Black)
-
8233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
9234161471 Lock Washer 6 mmLock Washer 6 mm
-
10224061121 Flat WasherFlat Washer
-
11502006500 BracketBracket
-
12502006597 L.H. SupportL.H. Support
-
13502006596 R.H. SupportR.H. Support
-
14414916600 Nylon CapNylon Cap
-
15502006558 Bottom FoamBottom Foam
-
16502006559 Bottom Pan Door FoamBottom Pan Door Foam
-
17391301600 Flat WasherFlat Washer
-
18415093900 Retainer CableRetainer Cable
-
20415043300 SpringSpring
-
21517124300 WasherWasher
-
22415058300 RingRing
-
23517262800 BracketBracket
-
24390409600 Pop RivetPop Rivet
-
25517302004 HingeHinge
-
26517302176 Hinge Side PlateHinge Side Plate
-
27517302045 Hinge Center PlateHinge Center Plate
-
28207661684 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
29250200000 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
30517302179 BushingBushing
-
31207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
32207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
33415064400 R.H. Reflector (Yellow)R.H. Reflector (Yellow)
-
415064401 L.H. Reflector (Yellow)L.H. Reflector (Yellow)
-
34517302254 R.H. Corner SupportR.H. Corner Support
-
35517302255 L.H. Corner SupportL.H. Corner Support
-
36390406500 Pop RivetPop Rivet
-
37207661684 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
38517302256 Hood ClampHood Clamp
-
39502006599 Belt SupportBelt Support
-
40517281905 BracketBracket
-
41390402400 Pop RivetPop Rivet
