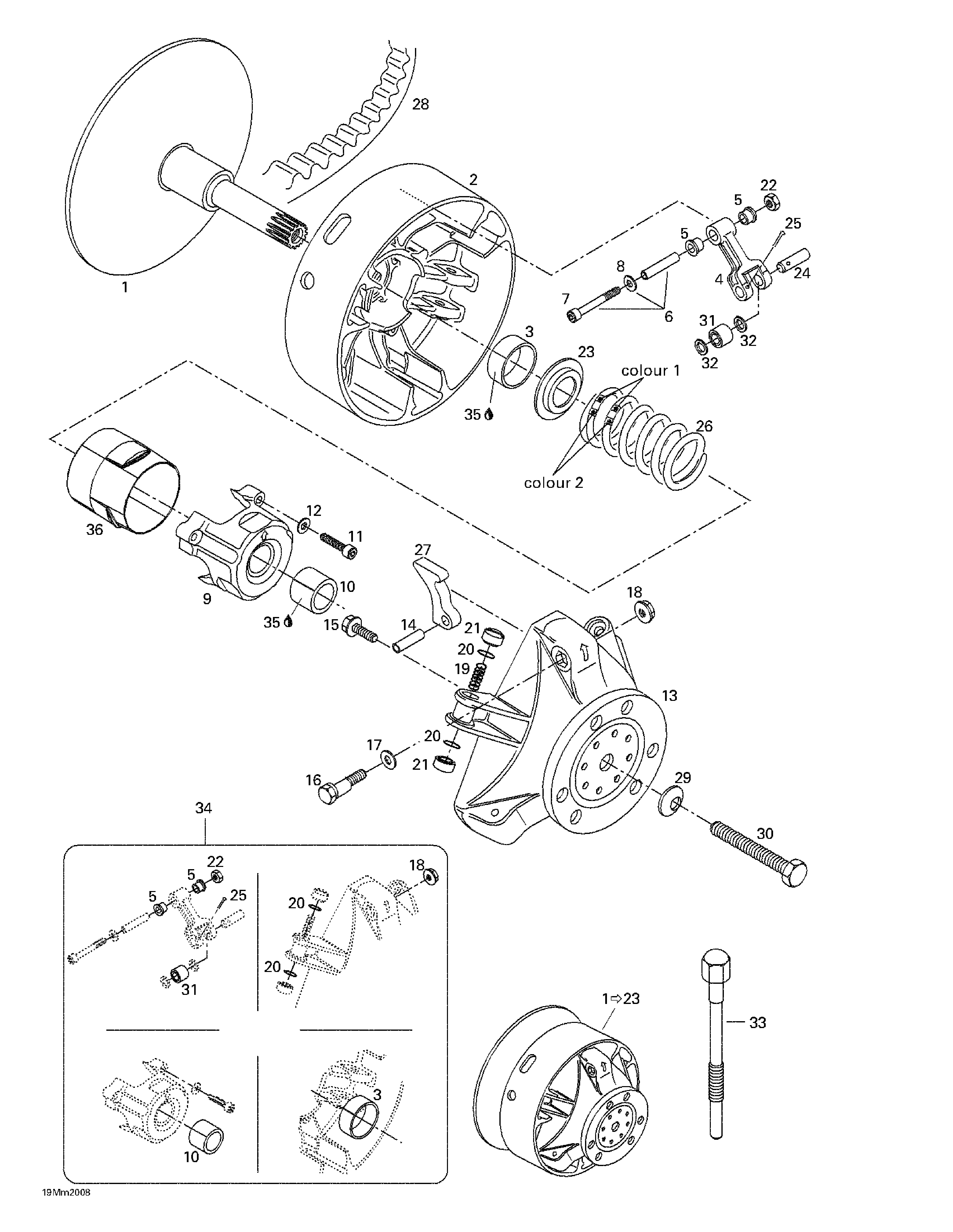

05- Drive Pulley для BRP Ski-Doo Summit 600/SB - 2000
-
№АртикулНазвание
-
1417222283 Drive Pulley Ass'y. Includes 1 - 23.Drive Pulley Ass'y. Includes 1 - 23.
-
1417222160 Fixed FlangeFixed Flange
-
2417222049 Sliding Flange Ass'y. Includes 2 - 3.Sliding Flange Ass'y. Includes 2 - 3.
-
3417004201 BushingBushing
-
4417003801 Lever Ass'y. Includes 4 - 5.Lever Ass'y. Includes 4 - 5.
-
5417004305 BushingBushing
-
6417004800 Screw Ass'y. Includes 6 - 8.Screw Ass'y. Includes 6 - 8.
-
7205065044 Socket Head Screw M6 x 50Socket Head Screw M6 x 50
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9417222157 Spring Cover Ass'y. Includes 9 - 10.Spring Cover Ass'y. Includes 9 - 10.
-
10417004501 BushingBushing
-
11205064086 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
12420245370 WasherWasher
-
13417222081 Governor CupGovernor Cup
-
14732804009 Rolled Pin M8 x 24Rolled Pin M8 x 24
-
15210361890 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
16417005500 Calibration ScrewCalibration Screw
-
17417005600 WasherWasher
-
18233061414 Flange Nut M6Flange Nut M6
-
19417005700 SpringSpring
-
20732401030 O-RingO-Ring
-
21417005800 Slider ShoeSlider Shoe
-
22232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
23417222044 Spring SeatSpring Seat
-
24417004309 PinPin
-
25732958001 Cotter PinCotter Pin
-
26414768200 Spring (Green/Blue)Spring (Green/Blue)
-
27417005294 Ramp 294Ramp 294
-
28414860700 Drive BeltDrive Belt
-
29234271414 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
30417120000 Drive Pulley BoltDrive Pulley Bolt
-
31417003900 Roller Ass'yRoller Ass'y
-
32417004302 Stopper WasherStopper Washer
-
33529022400 Puller Inner HalfPuller Inner Half
-
34417006100 Clutch Repair KitClutch Repair Kit
-
35413703100 Loctite 609, 10 c.cLoctite 609, 10 c.c
-
36417222176 GuardGuard
