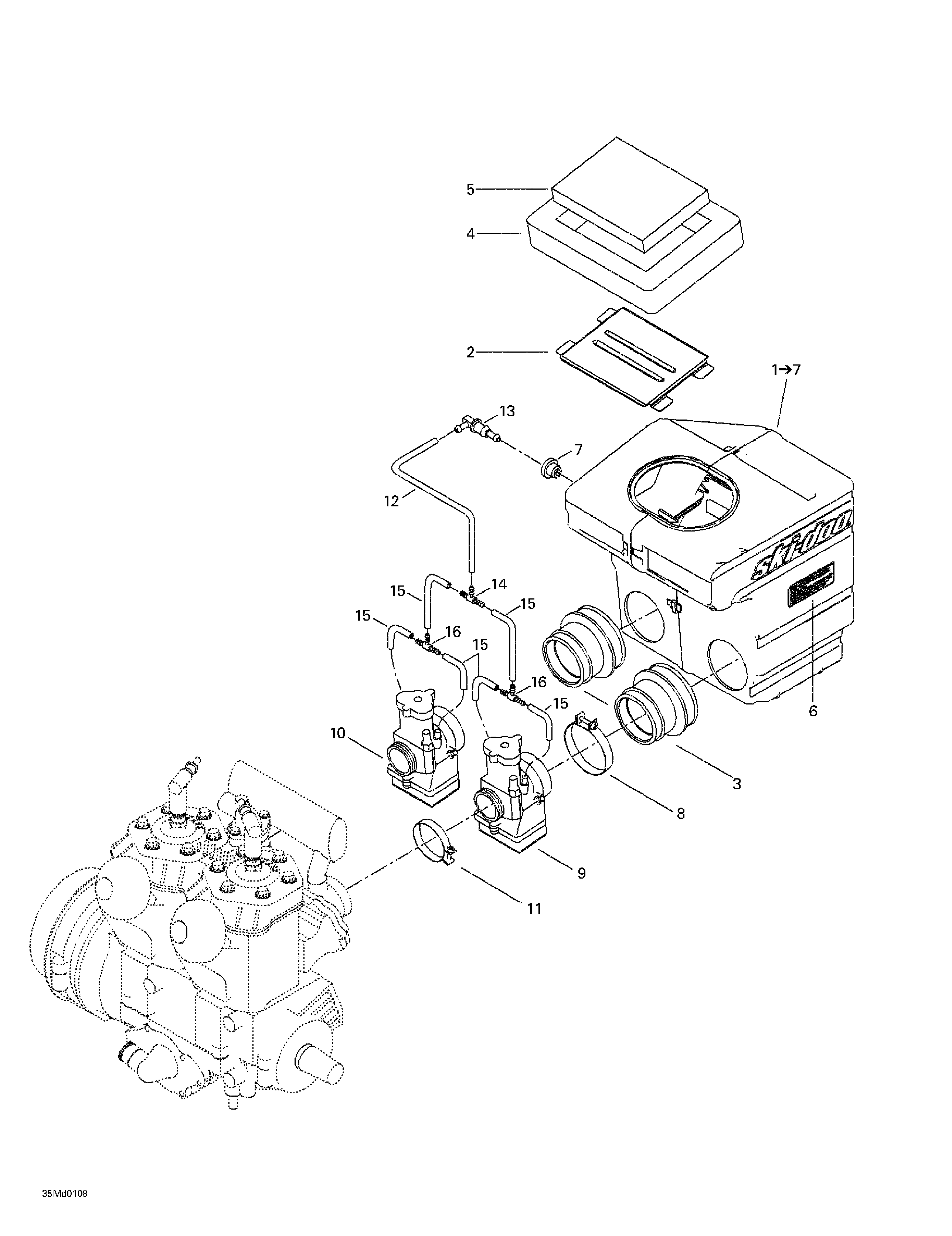

02- Air Intake System для BRP Ski-Doo MX Z X 440 LC - 2001
-
№АртикулНазвание
-
1508000171 Air Intake Ass'y. Includes 1 - 7.Air Intake Ass'y. Includes 1 - 7.
-
2508000004 Intake GrillIntake Grill
-
3508000006 Air Intake Adaptor (34 mm)Air Intake Adaptor (34 mm)
-
4508000099 Lower FoamLower Foam
-
5508000154 Air FilterAir Filter
-
6516000130 Caution'' Label```Caution'' Label```
-
7513032908 GrommetGrommet
-
8508000007 ClampClamp
-
9403138653 Carburator TMX-34-11 (PTO)Carburator TMX-34-11 (PTO)
-
10403138694 Carburator TMX-34-13 (MAG)Carburator TMX-34-13 (MAG)
-
11512059005 ClampClamp
-
12415080200 HoseHose
-
13414580600 Elbow Male ConnectorElbow Male Connector
-
14572045500 T'' Fitting```T'' Fitting```
-
15404161821 HoseHose
-
16270500347 T'' Fitting```T'' Fitting```
