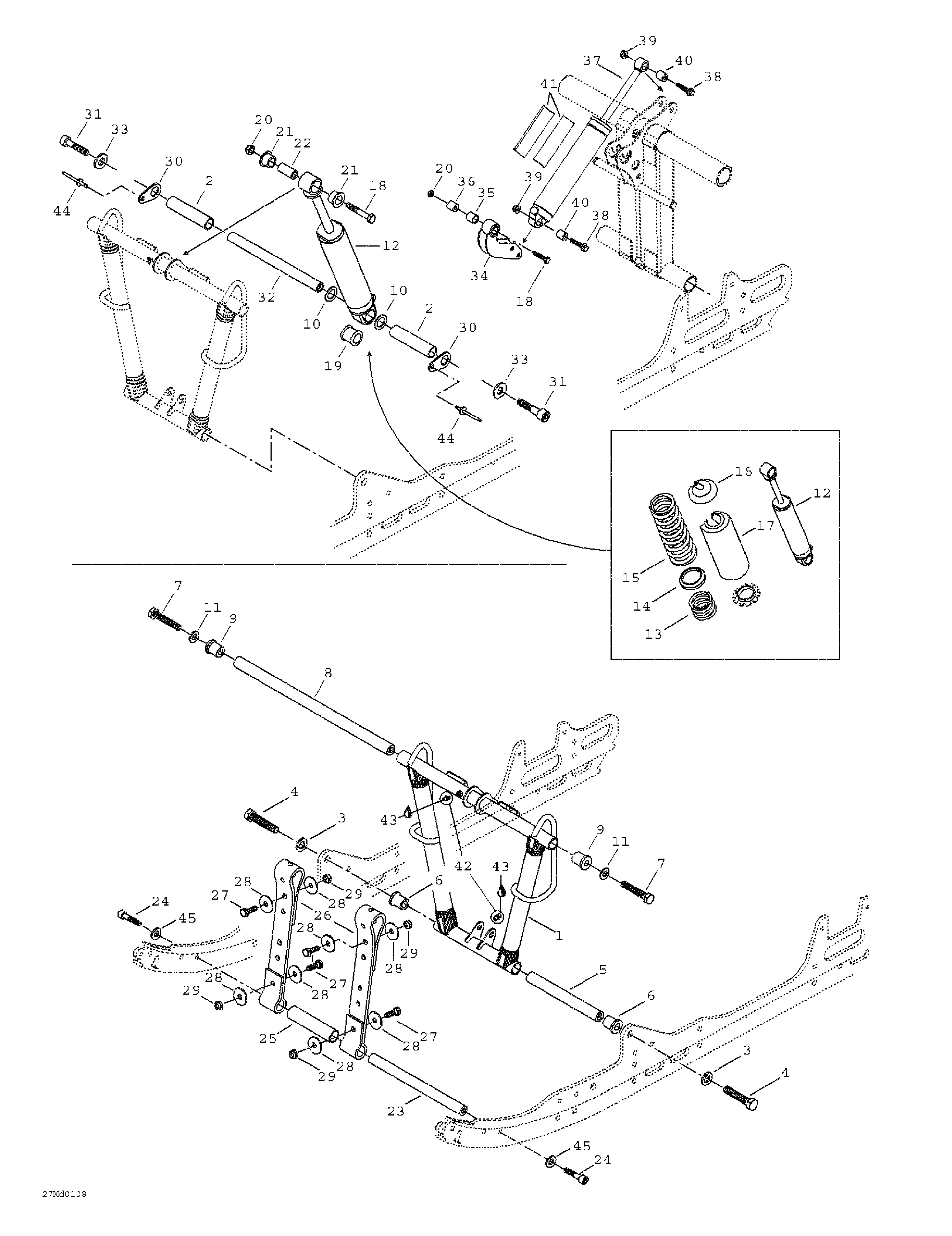

08- Front Arm для BRP Ski-Doo MX Z X 440 LC - 2001
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189274 SpacerSpacer
-
3503189276 Flat Washer 12 mmFlat Washer 12 mm
-
4207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
5503189313 ShaftShaft
-
6503189323 CushionCushion
-
7207205544 Hex. Screw M10 x 55 (Scotch Grip)Hex. Screw M10 x 55 (Scotch Grip)
-
8503188938 ShaftShaft
-
9503189324 CushionCushion
-
10503189273 WasherWasher
-
11732900049 Flat Washer 10 mmFlat Washer 10 mm
-
12503189745 Center ShockCenter Shock
-
13415090500 SpringSpring
-
14503182200 Spring SpacerSpring Spacer
-
15503189090 SpringSpring
-
16505070539 Spring SupportSpring Support
-
17503188930 ProtectorProtector
-
18207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
19503189271 CushionCushion
-
20233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21503189117 CushionCushion
-
22503189282 BushingBushing
-
23503189562 AxleAxle
-
24205503544 Socket Screw M10 x 35 (Scotch Grip)Socket Screw M10 x 35 (Scotch Grip)
-
25503189265 SpacerSpacer
-
26503189362 Stopper StrapStopper Strap
-
27207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
28224081301 Flat WasherFlat Washer
-
29232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
30503189506 PlatePlate
-
31205523544 Socket Head Screw M12 x 35 (Scotch Grip)Socket Head Screw M12 x 35 (Scotch Grip)
-
32503189740 Center Shock ShaftCenter Shock Shaft
-
33503189276 WasherWasher
-
34503189303 RockerRocker
-
35503189388 AxleAxle
-
36503189410 CushionCushion
-
37503189280 Rear ShockRear Shock
-
38207684044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
39233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
40414936000 CushionCushion
-
41516000183 Shock DecalShock Decal
-
42408200700 Grease FittingGrease Fitting
-
43219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
44390402300 Pop Rivet 3/16Pop Rivet 3/16
-
45503189564 WasherWasher
