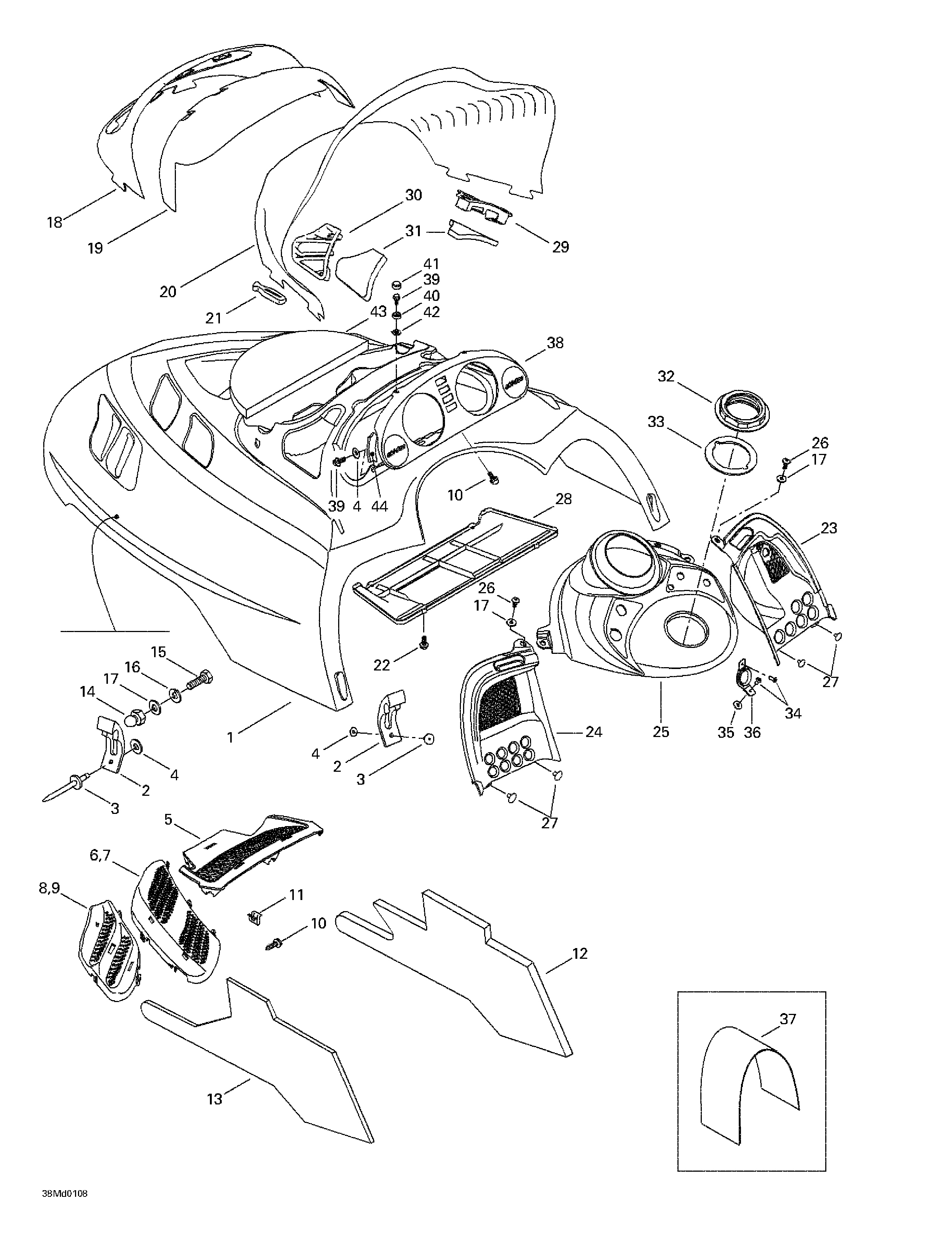

09- Cab, Console для BRP Ski-Doo MX Z X 440 LC - 2001
-
№АртикулНазвание
-
1517302506 Hood (Yellow)Hood (Yellow)
-
2570027100 Hood LatchHood Latch
-
3390906800 Pop Rivet 3/16Pop Rivet 3/16
-
4517124300 WasherWasher
-
5517302026 Center Grill (Black)Center Grill (Black)
-
6517302028 R.H. Intermediate GrillR.H. Intermediate Grill
-
7517302031 L.H. Intermediate GrillL.H. Intermediate Grill
-
8517302034 R.H. Side Grill (Black)R.H. Side Grill (Black)
-
9517302036 L.H. Side Grill (Black)L.H. Side Grill (Black)
-
10732601210 Hex. Tapping ScrewHex. Tapping Screw
-
11517302183 ClipClip
-
12517302490 R.H. Side FoamR.H. Side Foam
-
13517302491 L.H. Side FoamL.H. Side Foam
-
14517245800 KnobKnob
-
15207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
16234151401 Lock Washer 5 mmLock Washer 5 mm
-
17391301600 Flat WasherFlat Washer
-
18517302158 Headlamp MouldingHeadlamp Moulding
-
19517302003 Windshield SupportWindshield Support
-
20517302002 Low WindshieldLow Windshield
-
21570023800 Windshield LatchWindshield Latch
-
22243141640 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
23517302027 R.H. ConsoleR.H. Console
-
24517302006 L.H. ConsoleL.H. Console
-
25517302462 Center ConsoleCenter Console
-
26732600030 ScrewScrew
-
27390406500 RivetRivet
-
28517302413 Air Intake PlateAir Intake Plate
-
29517302024 R.H. Air Intake GrillR.H. Air Intake Grill
-
30517302025 L.H. Air Intake GrillL.H. Air Intake Grill
-
31517302151 Air Intake FoamAir Intake Foam
-
32517302043 Console NutConsole Nut
-
33293250029 GasketGasket
-
34390409400 RivetRivet
-
35517302286 Rubber StopperRubber Stopper
-
36517302129 Rope GuideRope Guide
-
37517302253 Tank CoverTank Cover
-
38572098605 Indicator SupportIndicator Support
-
39241140060 Flanged Screw K40 x 10Flanged Screw K40 x 10
-
40414436800 Retainer CapRetainer Cap
-
41414436900 Snap CapSnap Cap
-
42234042600 Flat WasherFlat Washer
-
43517302317 Center Foam (Can./U.S. Only)Center Foam (Can./U.S. Only)
-
44517302420 FoamFoam
