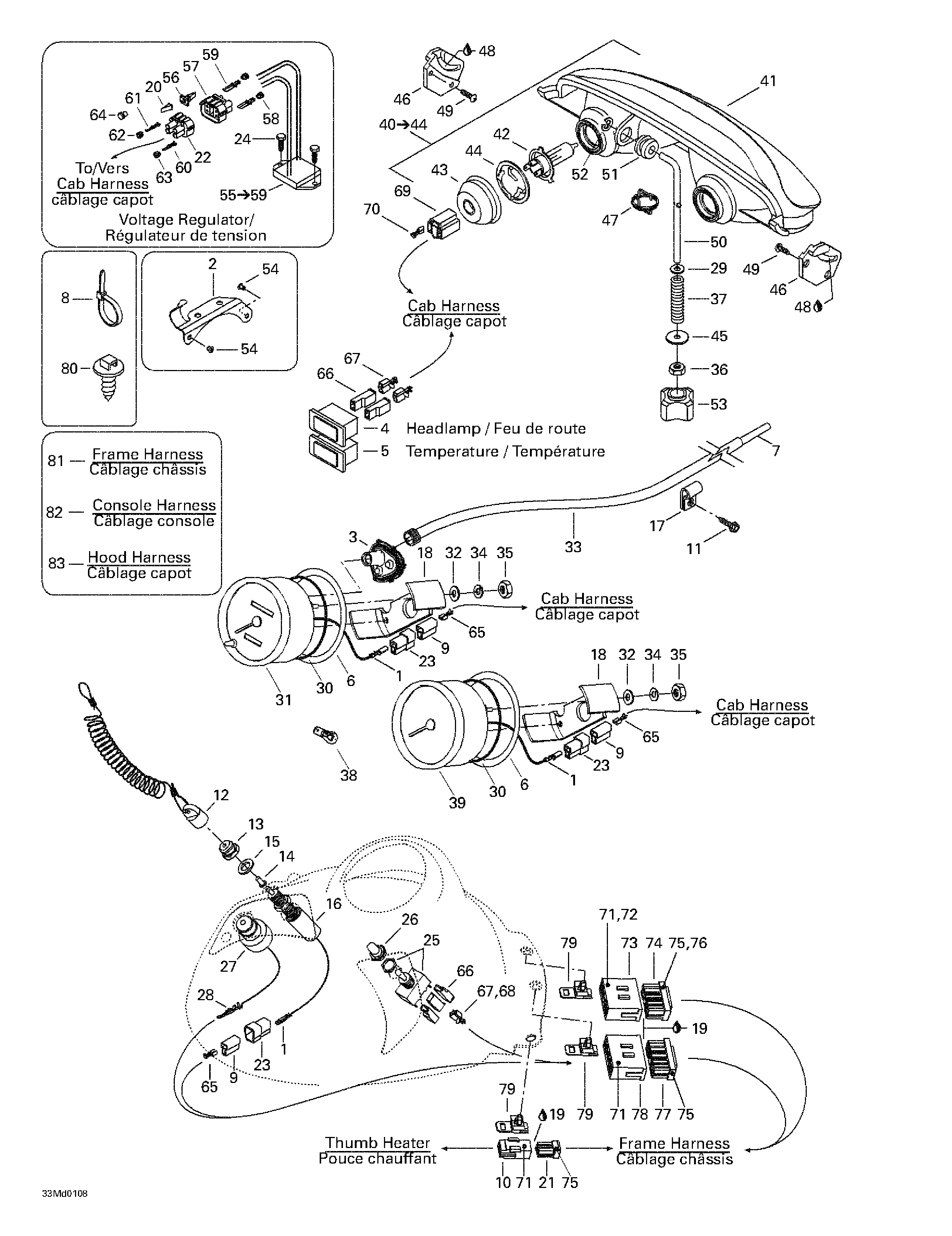

10- Electrical System для BRP Ski-Doo MX Z X 440 LC - 2001
-
№АртикулНазвание
-
1409210000 Male TerminalMale Terminal
-
2515175254 Cable SupportCable Support
-
3515175400 Drive AngleDrive Angle
-
4515175592 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
5515175593 Pilot Lamp (Temperature)Pilot Lamp (Temperature)
-
6517258500 WasherWasher
-
7415080100 LineLine
-
8293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
515175220 Tie RapTie Rap
-
9409204600 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
10515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
12515167900 Switch CapSwitch Cap
-
13415073500 Switch NutSwitch Nut
-
14570151100 Plunger CapPlunger Cap
-
15234001410 Flat Washer 10 mmFlat Washer 10 mm
-
16515175571 Switch BrakeSwitch Brake
-
17414176000 ClipClip
-
18414806500 Case HolderCase Holder
-
19293550004 Dielectric Grease, 3 ozDielectric Grease, 3 oz
-
20409013100 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
21515175495 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
22409207700 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
23409204500 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
24210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
25410107300 Switch (Heating Grip)Switch (Heating Grip)
-
26515175281 Switch coverSwitch cover
-
27515175145 D.E.S.S. Switch. Includes 27 - 28.D.E.S.S. Switch. Includes 27 - 28.
-
28515175232 Male TerminalMale Terminal
-
29234061410 Flat Washer 6 mmFlat Washer 6 mm
-
30414807100 O-RingO-Ring
-
31515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MH)Speedometer (MH)
-
32391301700 Flat WasherFlat Washer
-
33415101500 Speedometer CableSpeedometer Cable
-
34414806700 Lock WasherLock Washer
-
35414806900 NutNut
-
36232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
37415100600 SpringSpring
-
38410504200 Instrumentattion BulbInstrumentattion Bulb
-
39515175341 TachometerTachometer
-
40515175158 Headlamp Ass'y. Includes 40 - 44.Headlamp Ass'y. Includes 40 - 44.
-
42410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
43410607100 Protector CapProtector Cap
-
44410608300 Bulb HolderBulb Holder
-
45224060251 WasherWasher
-
46517289300 R.H. SupportR.H. Support
-
517289400 L.H. SupportL.H. Support
-
47515175324 Spring (Europe)Spring (Europe)
-
48413707500 Grease Tube LMZ, 400 gGrease Tube LMZ, 400 g
-
49732601315 Headlamp ScrewHeadlamp Screw
-
50517295800 Adjuster RodAdjuster Rod
-
51415100800 GrommetGrommet
-
52732610072 Push NutPush Nut
-
53515175548 HandleHandle
-
54390402200 Pop RivetPop Rivet
-
55515175491 Voltage Regulator. Includes 55 - 59.Voltage Regulator. Includes 55 - 59.
-
56409013400 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
57409208000 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
58278000996 SealSeal
-
59278000994 Female TerminalFemale Terminal
-
60409013000 Male TerminalMale Terminal
-
61409010900 Male TerminalMale Terminal
-
62409208300 SealSeal
-
63278000996 Seal (Orange)Seal (Orange)
-
64409013900 PlugPlug
-
65561503100 Female TerminalFemale Terminal
-
66409010400 Female Terminal Housing (1 Circuits)Female Terminal Housing (1 Circuits)
-
67409010100 Female TerminalFemale Terminal
-
68409010600 Female Terminal (Double)Female Terminal (Double)
-
69409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
70515175320 Female TerminalFemale Terminal
-
71515175232 Male TerminalMale Terminal
-
72515175273 Male TerminalMale Terminal
-
73515175352 Male Terminal Housing (13 Circuits)Male Terminal Housing (13 Circuits)
-
74515175350 Female Terminal Housing (13 Circuits)Female Terminal Housing (13 Circuits)
-
75515175231 Female TerminalFemale Terminal
-
76515175282 Female TerminalFemale Terminal
-
77515175349 Female Terminal Housing (15 Circuits)Female Terminal Housing (15 Circuits)
-
78515175351 Male Terminal Housing (15 Circuits)Male Terminal Housing (15 Circuits)
-
79515175283 Housing SupportHousing Support
-
80293730018 DartDart
-
81515175444 Frame HarnessFrame Harness
-
82515175309 Console HarnessConsole Harness
-
83515175463 Hood HarnessHood Harness
