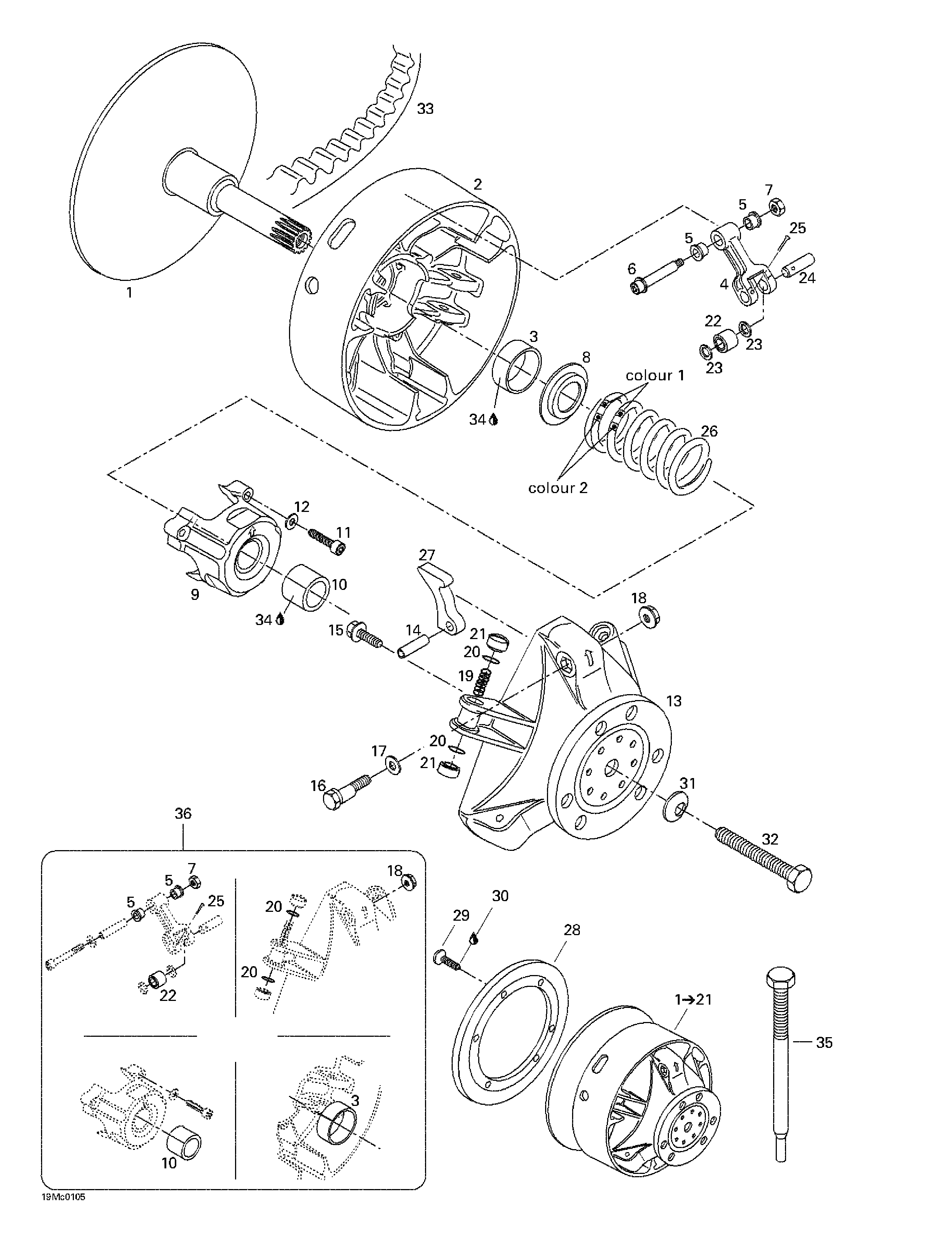

05- Drive Pulley для BRP Ski-Doo MX Z 440 F/500 F - 2001
-
№АртикулНазвание
-
1417222368 Drive Pulley Ass'y. Includes 1 - 21.Drive Pulley Ass'y. Includes 1 - 21.
-
1417222250 Fixe FlangeFixe Flange
-
2417222241 Sliding Flange Ass'y. Includes 2 - 3.Sliding Flange Ass'y. Includes 2 - 3.
-
3417004201 Bushing Outer HalfBushing Outer Half
-
4417222383 Lever Ass'y. Includes 4 - 5.Lever Ass'y. Includes 4 - 5.
-
5417004305 Flange BushingFlange Bushing
-
6417004800 Fitting ScrewFitting Screw
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8417222044 Spring SeatSpring Seat
-
9417222304 Spring Cover Ass'y. Includes 9 - 10.Spring Cover Ass'y. Includes 9 - 10.
-
10417004501 Bushing Spring CoverBushing Spring Cover
-
11205064086 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
12420245370 Friction-Washer 6 mmFriction-Washer 6 mm
-
13417222081 Governor CupGovernor Cup
-
14732804009 Dowel Tube M8 x 24Dowel Tube M8 x 24
-
15210361890 Hex. Locking Screw M6 x 18Hex. Locking Screw M6 x 18
-
16417005500 Calibration ScrewCalibration Screw
-
17417005600 WasherWasher
-
18233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
19417005700 SpringSpring
-
20732401030 O-RingO-Ring
-
21417005800 Slider ShoeSlider Shoe
-
22417003900 RollerRoller
-
23417004302 Thrust WasherThrust Washer
-
24417004309 PinPin
-
25732958001 Cotter PinCotter Pin
-
26414762800 Spring (Green/Violet). MX Z 440 F.Spring (Green/Violet). MX Z 440 F.
-
414768200 Spring (Green/Blue). MX Z 500 F.Spring (Green/Blue). MX Z 500 F.
-
414993000 Spring (Yellow/Red)). Formula DLX 500 F.Spring (Yellow/Red)). Formula DLX 500 F.
-
27417005287 Ramp 287. MX Z 440 F. MX Z 500 F.Ramp 287. MX Z 440 F. MX Z 500 F.
-
417005291X Ramp 291X. Formula DLX 500 F.Ramp 291X. Formula DLX 500 F.
-
28417009400 Ring Gear (86 Tooth). Formula DLX 500 F.Ring Gear (86 Tooth). Formula DLX 500 F.
-
29236281684 Screw M8 x 16. Formula DLX 500 F.Screw M8 x 16. Formula DLX 500 F.
-
30293800005 Loctite 271, 10ml. Formula DLX 500 F.Loctite 271, 10ml. Formula DLX 500 F.
-
31250200005 Conical Spring WasherConical Spring Washer
-
32417113800 ScrewScrew
-
33415060600 Drive BeltDrive Belt
-
34413703100 Loctite 609, 10 c.cLoctite 609, 10 c.c
-
35529007900 Puller Inner HalfPuller Inner Half
-
36417006100 Clutch Repair KitClutch Repair Kit
