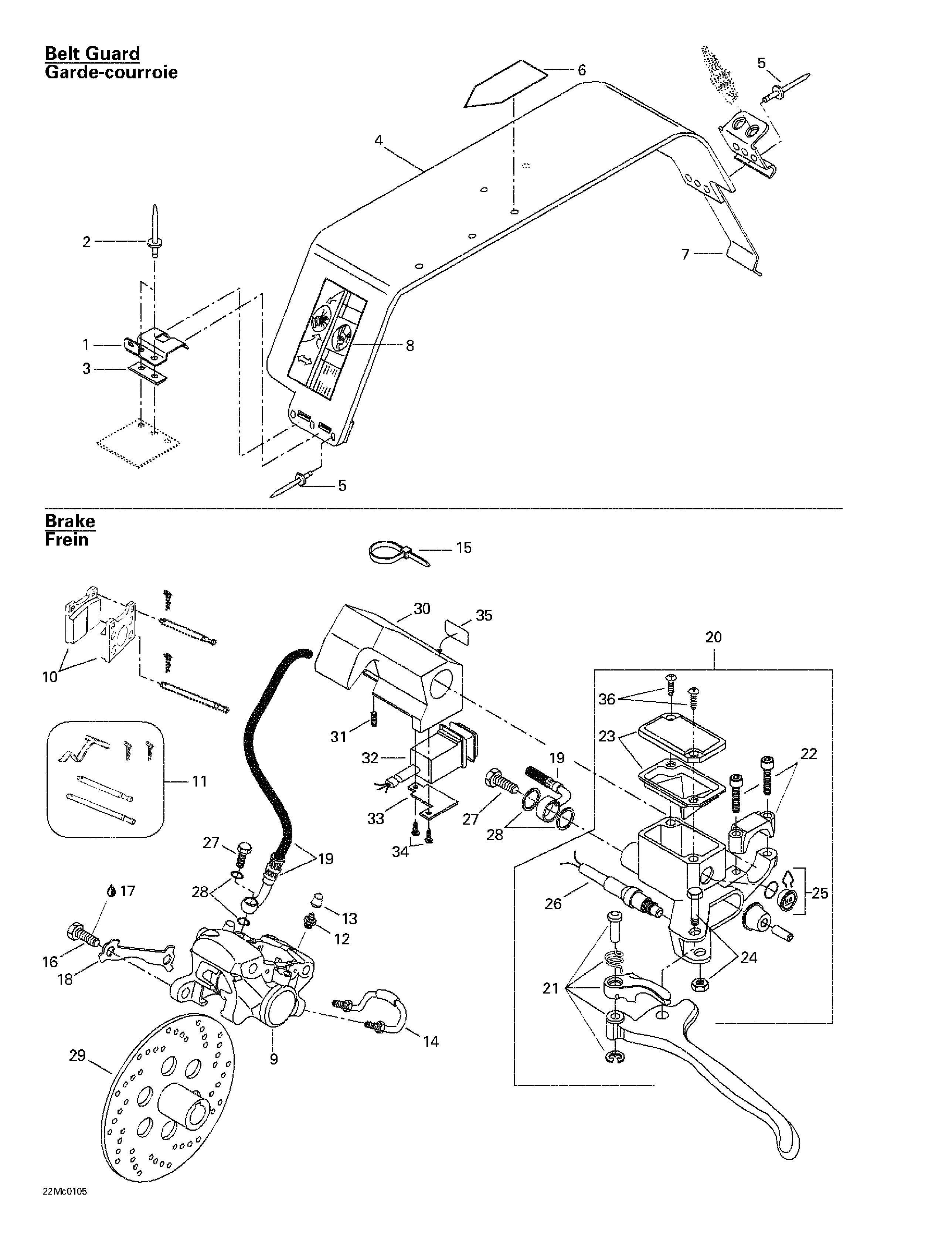

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo MX Z 440 F/500 F - 2001
-
№АртикулНазвание
-
1518314200 Pulley Guard BracketPulley Guard Bracket
-
2390402200 RivetRivet
-
3518207500 ReinforcementReinforcement
-
4417300012 Belt Guard Ass'y. Includes 4 - 7.Belt Guard Ass'y. Includes 4 - 7.
-
5380402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6516000132 Warning LabelWarning Label
-
7414941800 Tool Box SpringTool Box Spring
-
8418001701 Decal-Rear Suspension AdjustmentDecal-Rear Suspension Adjustment
-
9415034500 Caliper. Includes 9 - 14.Caliper. Includes 9 - 14.
-
10415053600 Brake Lining KitBrake Lining Kit
-
11414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
12414989800 Screw-BleederScrew-Bleeder
-
13414989700 BootBoot
-
14414989900 TubeTube
-
15414115200 Tie-RapTie-Rap
-
16207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
17293800060 Loctite 243, 10mlLoctite 243, 10ml
-
18507029900 Locking TabLocking Tab
-
19507032212 HoseHose
-
20507032294 Master Cylinder. Includes 20 - 26.Master Cylinder. Includes 20 - 26.
-
21415075300 Lever Ass'yLever Ass'y
-
22415029800 Clamp Ass'yClamp Ass'y
-
23415029900 CoverCover
-
24415030000 Pin Ass'yPin Ass'y
-
25414990600 WindowWindow
-
26507032284 Microswitch Ass'yMicroswitch Ass'y
-
27414920500 BoltBolt
-
28414920600 WasherWasher
-
29507032203 Brake DiskBrake Disk
-
30572079500 Housing-DimmerHousing-Dimmer
-
31414440800 Set ScrewSet Screw
-
32515175371 Light SwitchLight Switch
-
33517283800 BracketBracket
-
34414473200 Self Tapping ScrewSelf Tapping Screw
-
35415025500 Switch DecalSwitch Decal
-
36216141260 Screw M4 x 16Screw M4 x 16
